Rockwell Automation Publication 5069-UM002A-EN-P - January 2019 167

Use I/O Modules Chapter 7

The tasks that are described in this section apply when you use the EtherNet/

IP driver in RSWho to browse the network.

To use Discover Modules to add a remote I/O module, complete the following

steps.

1. Go online with your Logix Designer application.

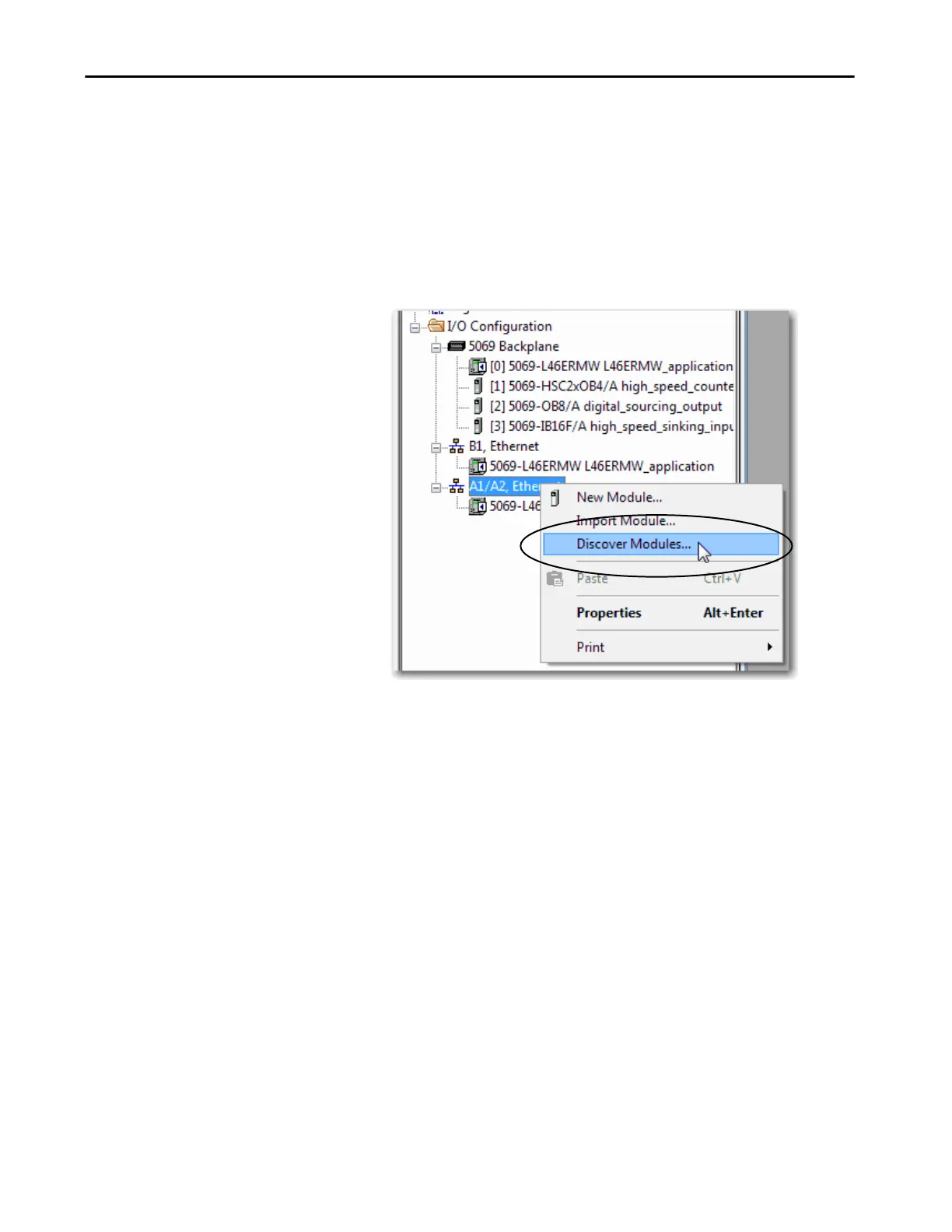

2. Right-click A1/A2, Ethernet and choose Discover Modules.

The Logix Designer application automatically detects available modules

that are installed in the system.
