Rockwell Automation Publication 5069-UM002A-EN-P - January 2019 151

Connect to Different EtherNet/IP Network Levels Chapter 6

Port Configuration in RSLinx Classic Software

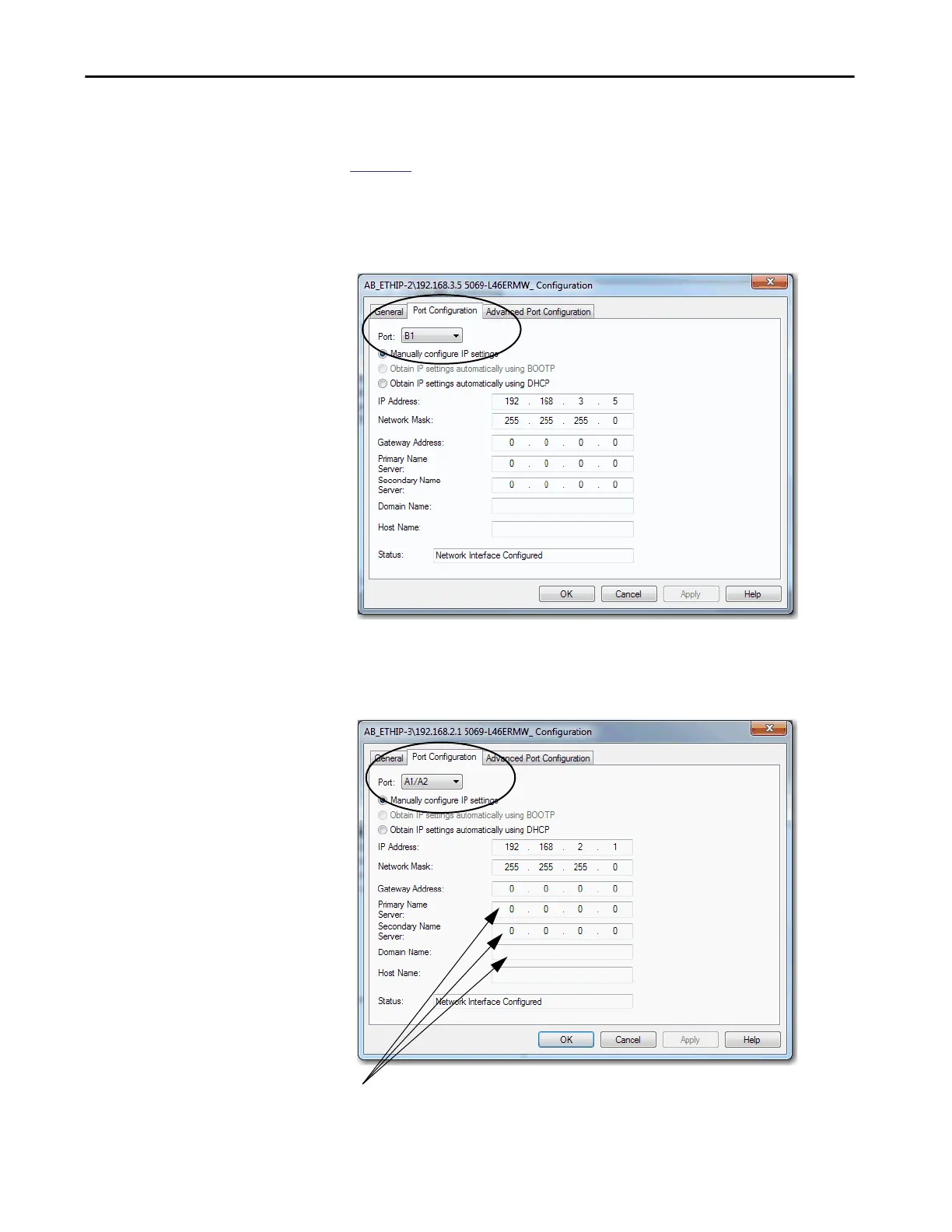

Figure 21 shows differences between port configurations on the controller in

RSLinx Classic software.

Figure 21 - Differences Between Enterprise Port Configuration and Device-level Configuration

Enterprise-level port

Device-level port

Parameters are not configured for the device-level port.
