262 Rockwell Automation Publication 5069-UM002A-EN-P - January 2019

Chapter 11 Troubleshoot the Controller

Home Webpage

The Home webpage provides general project and controller information.

•

Figure 57 shows the Home webpage when the controller is in Linear/

DLR mode.

•

Figure 58 shows the Home webpage when the controller is in

Dual-IP mode.

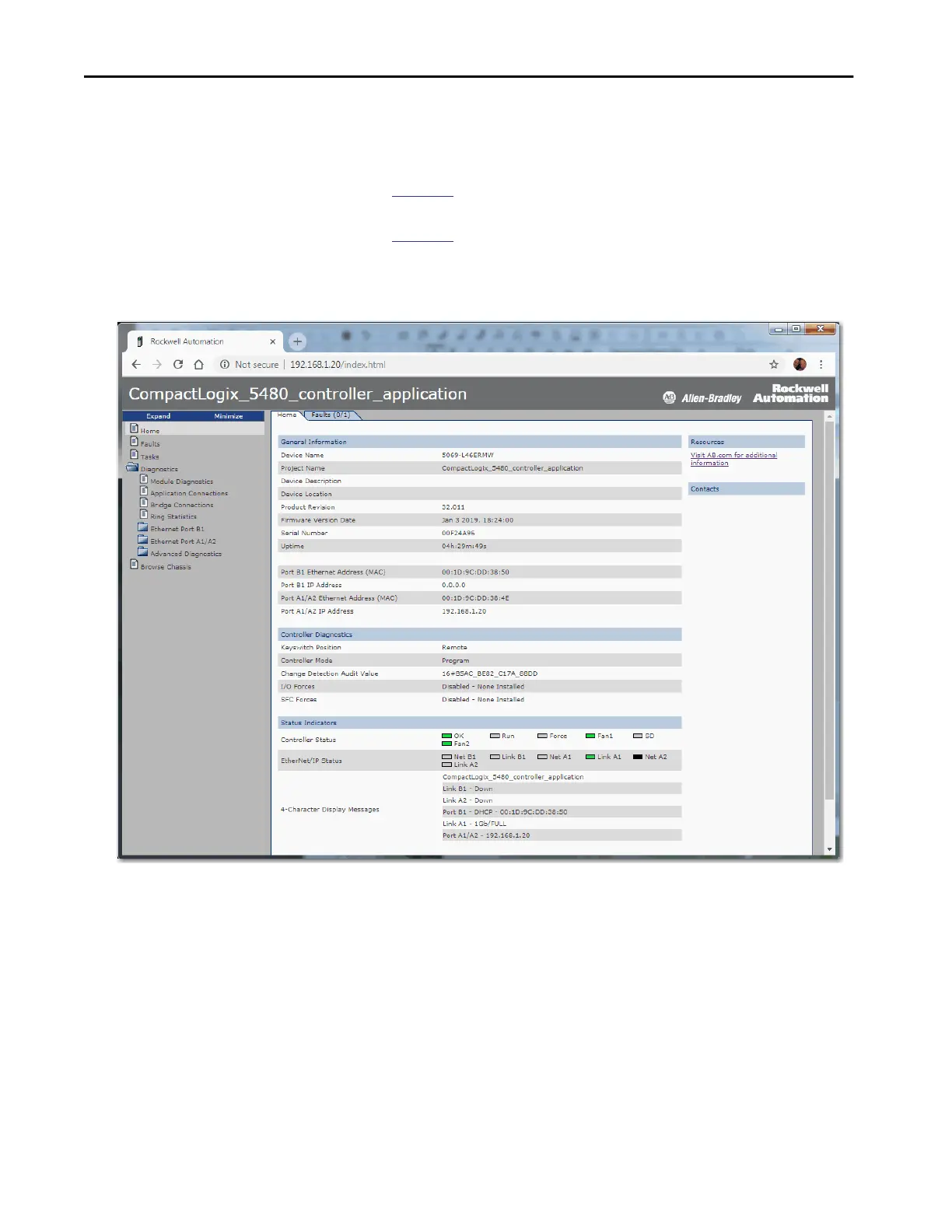

Figure 57 - Home Webpage - Linear/DLR Mode
