Allen-Bradley CompactLogix 5480 User Manual

Rockwell Automation Publication 5069-UM002A-EN-P - January 2019 39
CompactLogix 5480 System Chapter 1

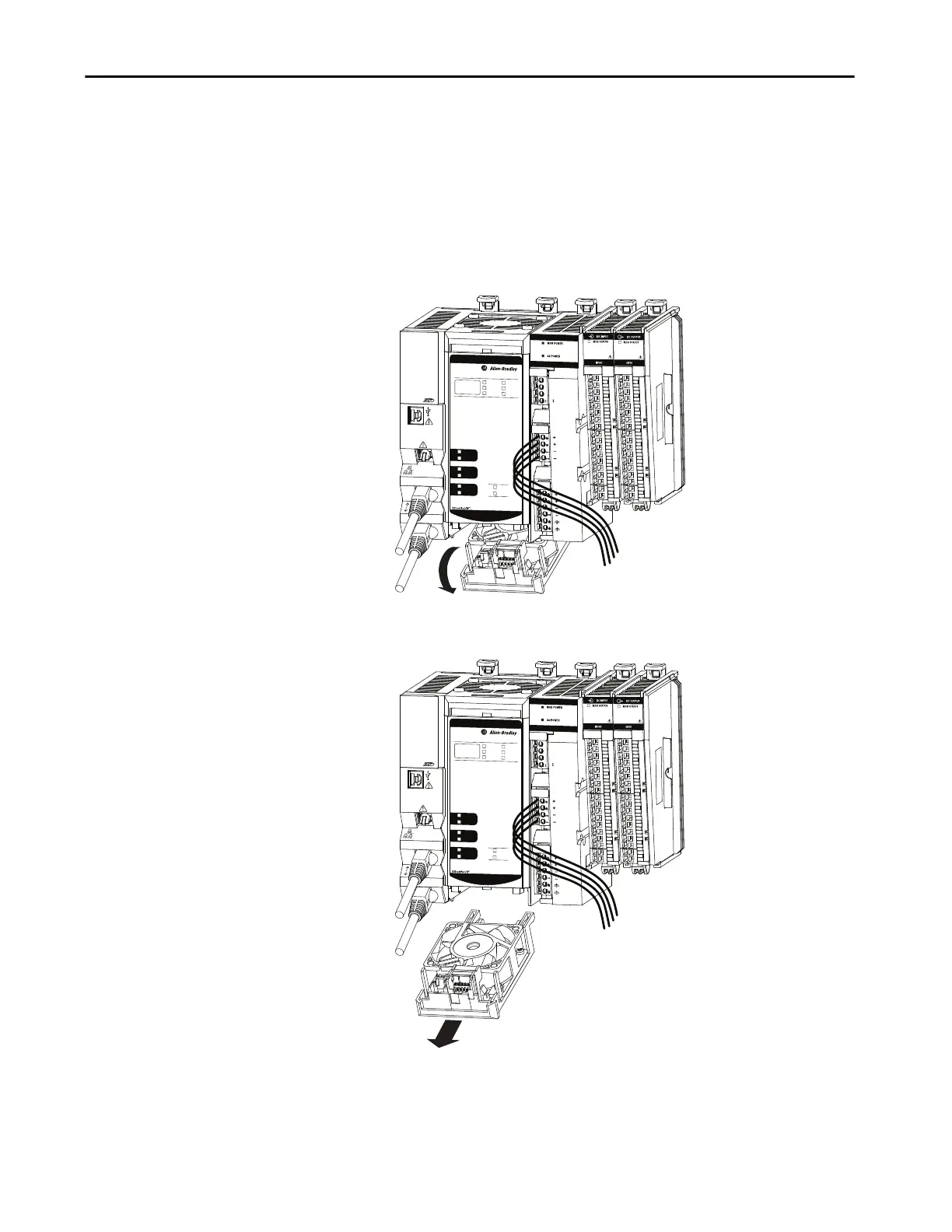

Remove the Bottom Fan
1. Push down on the front of the fan.
Make sure that the fan is fully disengaged before you try to pull it out.
2. Pull the fan out of the slot at the bottom of the controller.
TIP If the hinges do not disengage when you push down on the front of
the fan, then use a screwdriver as a pry tool.
1
2
B1
A1
A2
5069-L46ERMW
CONTROLLER
™
NET B1
LINK B1
NET A1
LINK A1
NET A1
NET A2
SPEED X1
LINK X1
OK
RUN
FORCE
FAN 1
SD
FAN 2
CompactLogix 5480
UPS
MP
SA
R
B
F
R
B
F
1
2
B1
A1
A2
5069-L46ERMW
CONTROLLER
™
NET B1
LINK B1
NET A1
LINK A1
NET A1
NET A2
SPEED X1
LINK X1
OK
RUN
FORCE
FAN 1
SD
FAN 2
CompactLogix 5480
UPS
MP
SA
R
B
F
R
B
F
