Allen-Bradley CompactLogix 5480 User Manual

Rockwell Automation Publication 5069-UM002A-EN-P - January 2019 121
EtherNet/IP Network Chapter 5
Linear Network Topology
A linear network topology is a collection of devices that are daisy-chained
together across an EtherNet/IP network. Devices that can connect to a linear
network topology use embedded switch technology to eliminate the need for a
separate switch, as required in Star network topologies.

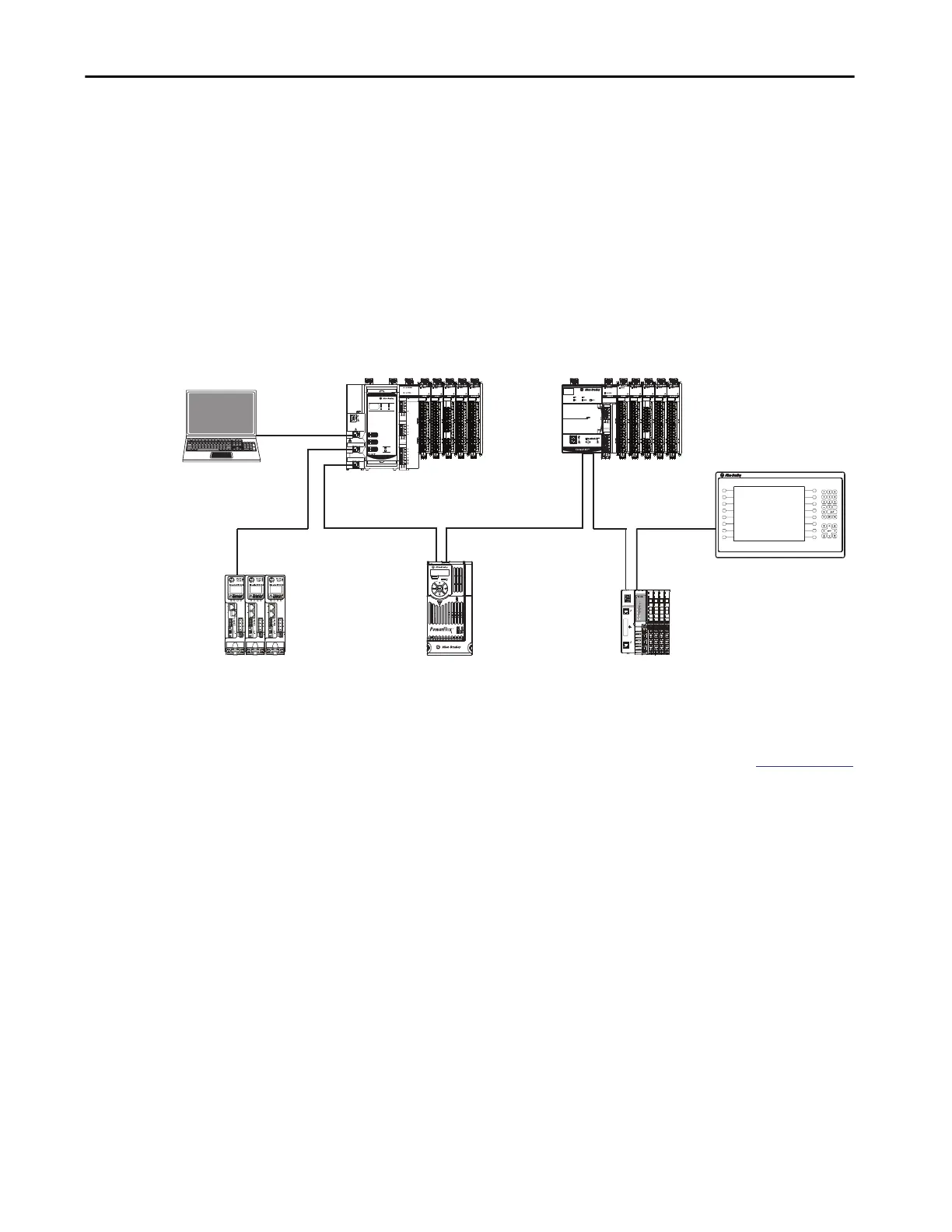

Figure 15 - CompactLogix 5480 Controller in a Linear Network Topology
For more information on how to design a DLR network, see the EtherNet/IP
Embedded Switch Technology Application Guide, publication
ENET-AP005.
02
0
1734-AENTR
Module
Status
Network
Activity
Network
Status
Point Bus
Status
System
Power
Field
Power
POINT I O
Link 1
Activity/
Status
Link 2
Activity/
Status
IP ADDRESS
F1
F2
F3
F4
F5
F6
F7
F8
F9
F10
F11
F12
F13
F14
F15
F16
™
NET B1
LINK B1
NET A1
LINK A1
NET A2
NET A2
SPEED X1
LINK X1
OK
RUN
FORCE
FAN 1
SD
FAN 2
CompactLogix 5480
B1
A1
1
2
A2
5069-L46ERMW
CONTROLLER
UPS
MP
SA
R
B
F
527
CompactLogix 5480 Controller
Compact 5000 I/O Modules
Kinetix 5500 Drives
5069-AEN2TR Adapter
Compact 5000 I/O Modules
PowerFlex 527 Drive 1734-AENTR Adapter
1734 POINT I/O Modules
PanelView Plus 7 Terminal
Workstation
