Rockwell Automation Publication 5069-UM002A-EN-P - January 2019 147

Connect to Different EtherNet/IP Network Levels Chapter 6

Change the EtherNet/IP Mode in RSLinx Classic Software

To change the EtherNet/IP mode in RSLinx Classic software, complete the

following steps.

1. Confirm that the controller is online and there is no project in the

controller.

2. Confirm that the controller is in one of the following modes:

• Program mode

• Remote Program mode

• Remote Run mode

You cannot change the IP Address or Subnet Mask if the controller is in

Run mode.

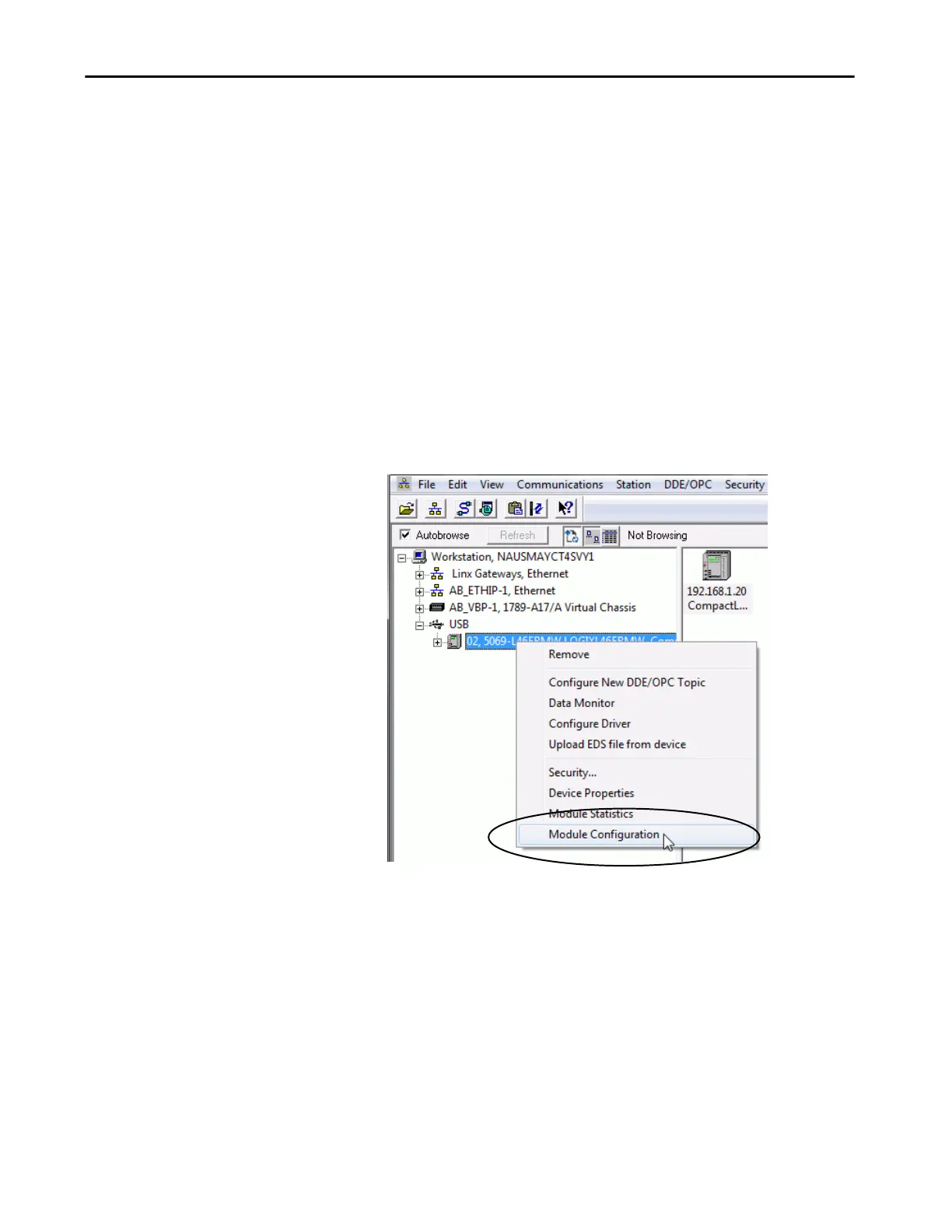

3. Right-click the controller and choose Module Configuration.
