146 Rockwell Automation Publication 5069-UM002A-EN-P - January 2019
Chapter 6 Connect to Different EtherNet/IP Network Levels

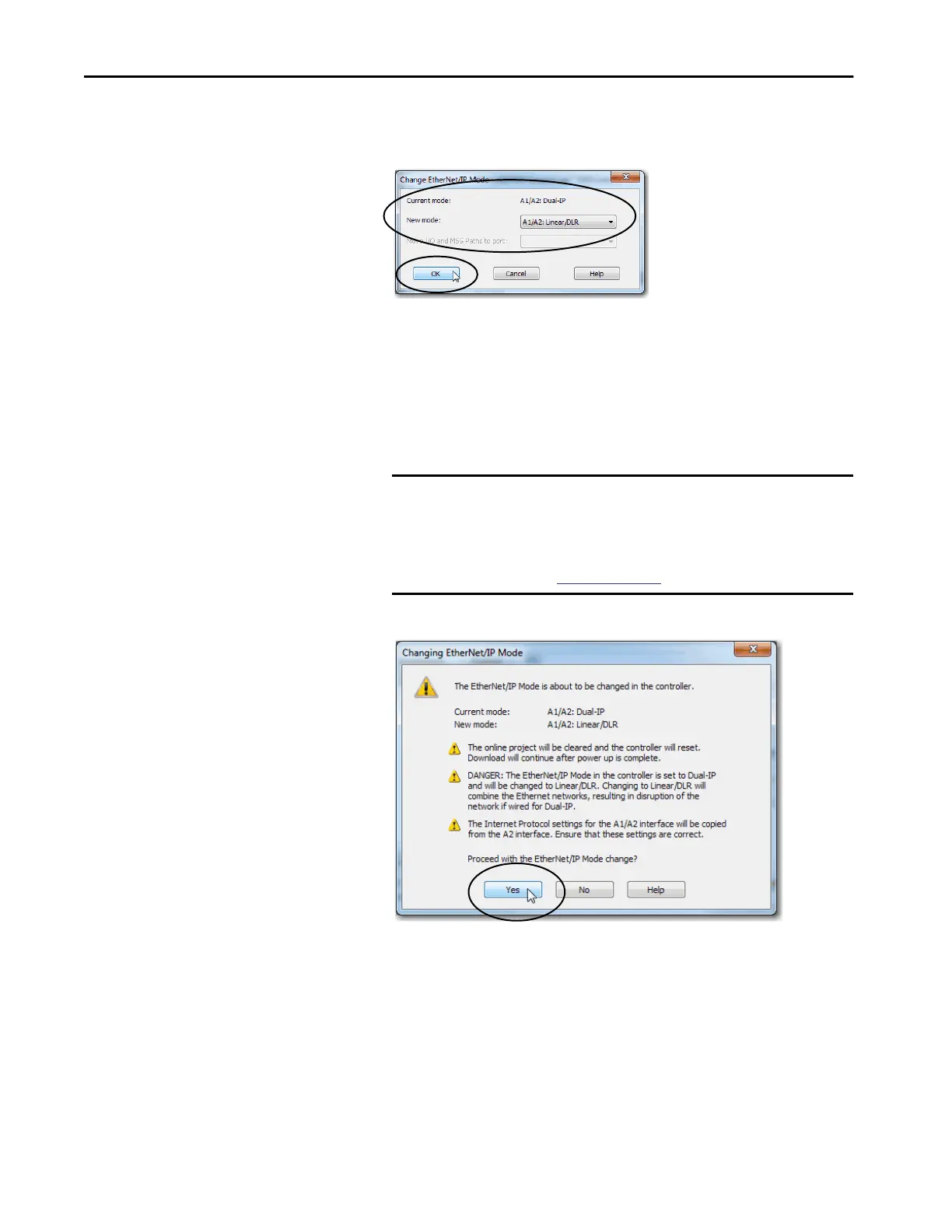

4. From the New mode pull-down menu, choose the new mode and
click OK.
5. Click OK on the Controller Properties dialog box.
6. Save the project.
7. Download the updated project to the controller.
8. If the following warning appears, read it carefully and click Yes
to continue.
IMPORTANT Before you change the EtherNet/IP mode, make sure that you
understand the impact on your controller when you change
the mode.
For more information on the impact of changing the EtherNet/IP
mode, see
Table 8 on page 144.
