20 Rockwell Automation Publication 5069-UM002A-EN-P - January 2019
Chapter 1 CompactLogix 5480 System
Power the System
The CompactLogix 5480 controller provides power to the system as follows:
• MOD Power - System-side power that powers the CompactLogix 5480
system and lets modules transfer data and execute logic.
System-side power is connected via the MOD power RTB.
• SA Power - Field-side power that powers some Compact 5000 I/O
modules and field-side devices that are connected to them.
Field-side power is connected via the SA power RTB.
• UPS Control Signals - Control signals that let the controller execute a
controlled shutdown and save the current state of the project, if the
source of MOD power is unexpectedly lost.
UPS control signals are connected via the UPS control RTB.

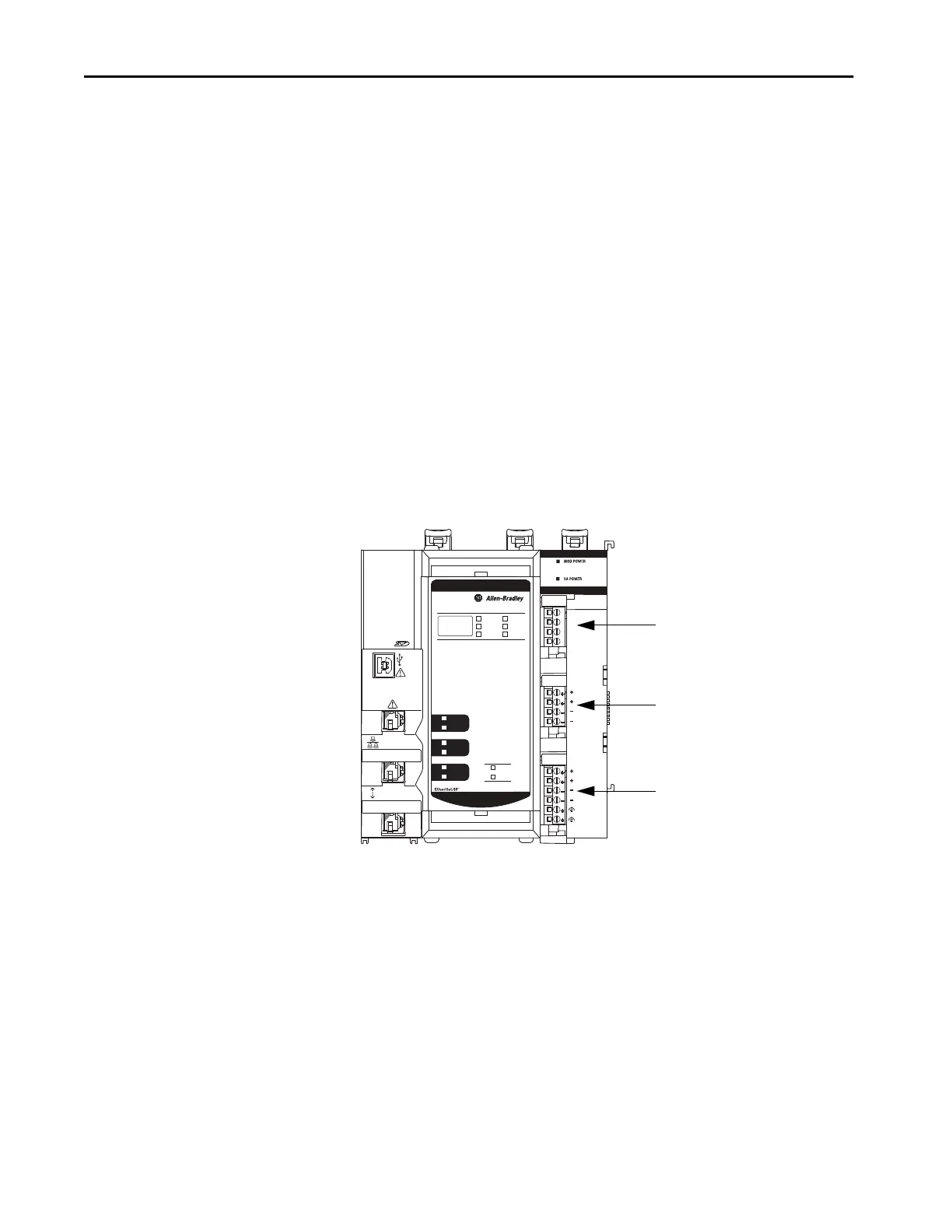

Figure 3 - CompactLogix 5480 Controller Power Connectors
â„¢
NET B1
LINK B1
NET A1
LINK A1
NET A2
LINK A2
SPEED X1
LINK X1
OK
RUN
FORCE
FAN 1
SD
FAN 2
CompactLogixâ„¢ 5480
1
2
5069-L46ERMW
CONTROLLER
UPS
MP
SA
R
B
F
R
B
F
I
I
UPS Control RTB
MOD Power RTB
SA Power RTB
To Next Page
