266 Rockwell Automation Publication 5069-UM002A-EN-P - January 2019

Chapter 11 Troubleshoot the Controller

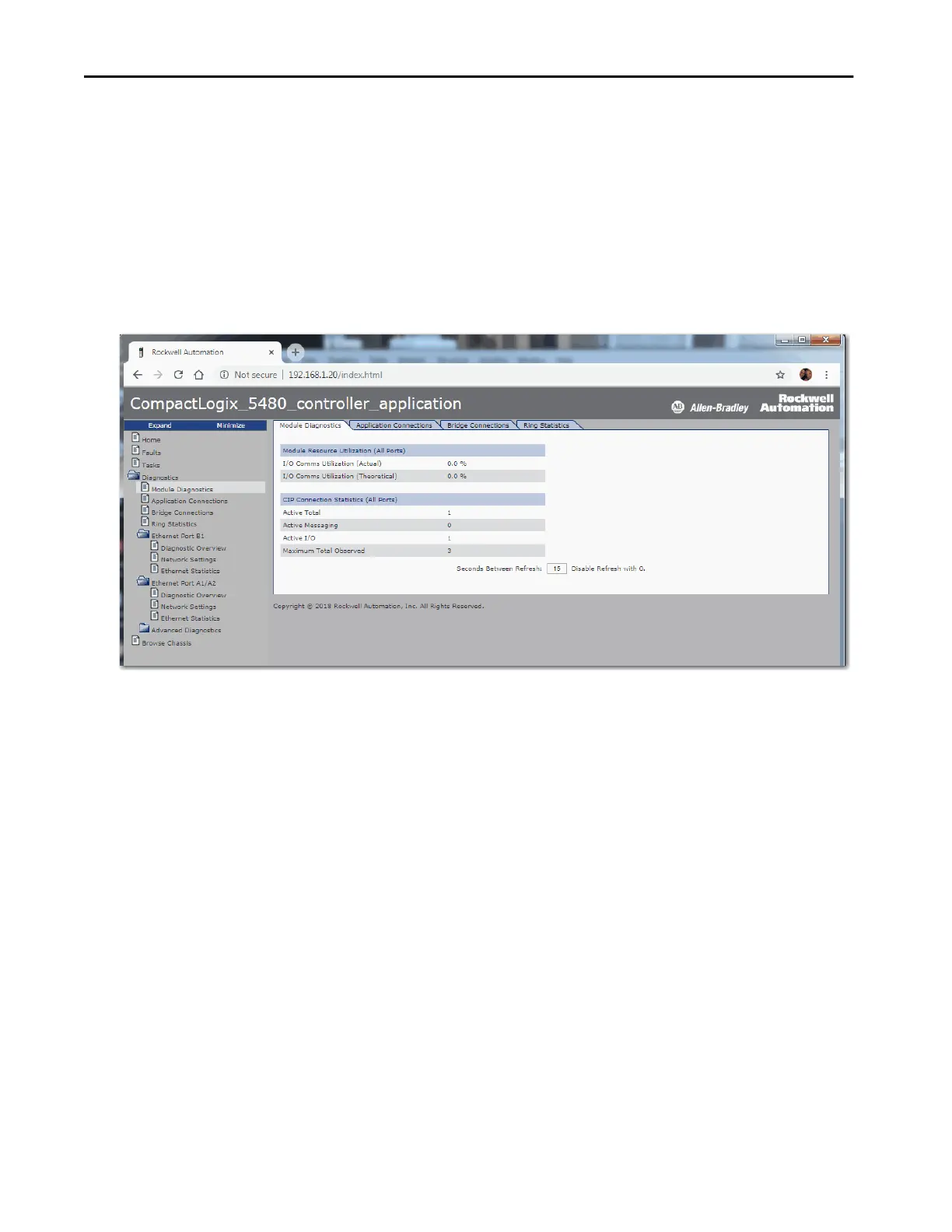

Diagnostics Webpages

The Diagnostics webpages use a series of tabs to provide information about

the following:

• Module Diagnostics

• Application Connections

• Bridge Connections

• Ring Statistics
