Chapter 1 CompactLogix 5480 System
Install the Top Replacement Fan

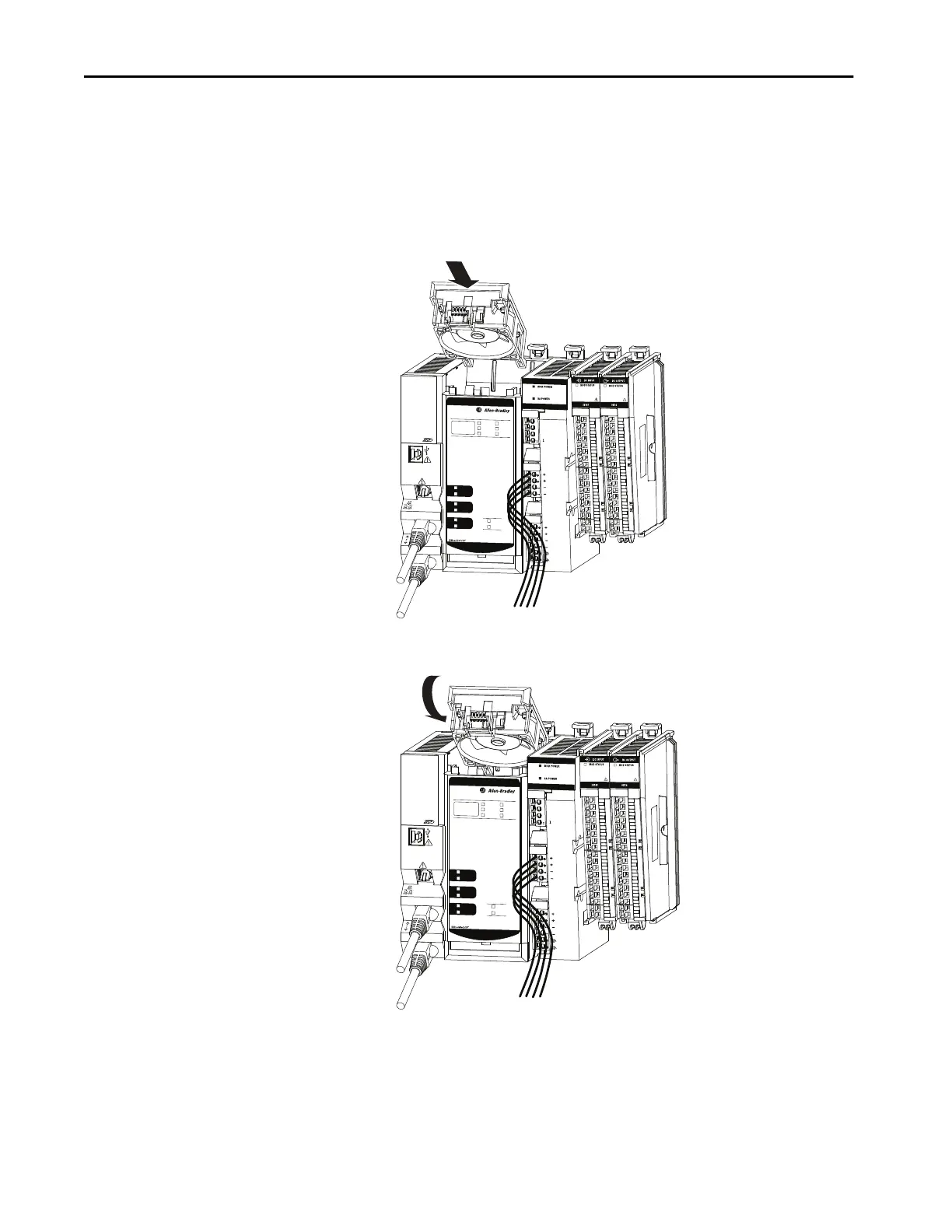

1. Insert the top replacement fan into the slot at the top of the controller.
Make sure the tabs at the back of the fan are inserted in the holes at the
back of the slot.
2. Push down on the top replacement fan until it clicks in place.
1
2
B1
A1
A2
5069-L46ERMW
CONTROLLER
™
NET B1
LINK B1
NET A1
LINK A1
NET A1
NET A2
SPEED X1
LINK X1
OK
RUN
FORCE
FAN 1
SD
FAN 2
CompactLogix 5480
UPS
MP
SA
R
B
F
R
B
F
1
2
B1
A1
A2
5069-L46ERMW
CONTROLLER
™
NET B1
LINK B1
NET A1
LINK A1
NET A1
NET A2
SPEED X1
LINK X1
OK
RUN
FORCE
FAN 1
SD
FAN 2
CompactLogix 5480
UPS
MP
SA
R
B
F
R
B
F
