Chapter 11 Troubleshoot the Controller
Categories on I/O Module Properties Dialog Box
The Module Properties dialog box for I/O modules includes a series of
categories. You can use some of the categories to troubleshoot the controller.
The following are examples of ways to use categories on the Module Properties
dialog box when you troubleshoot a controller:
•
Module Status on General Category
•
Module Fault Descriptions on Connection Category
•
Module Fault Descriptions on Module Info Category
•
Diagnostics Option on Module Info Category
The categories that are described in this section display the module status.
When a fault exists, the text is Status: Faulted in the module status line as
shown in
Figure 50.
Module Status on General Category
The General category displays the module status.

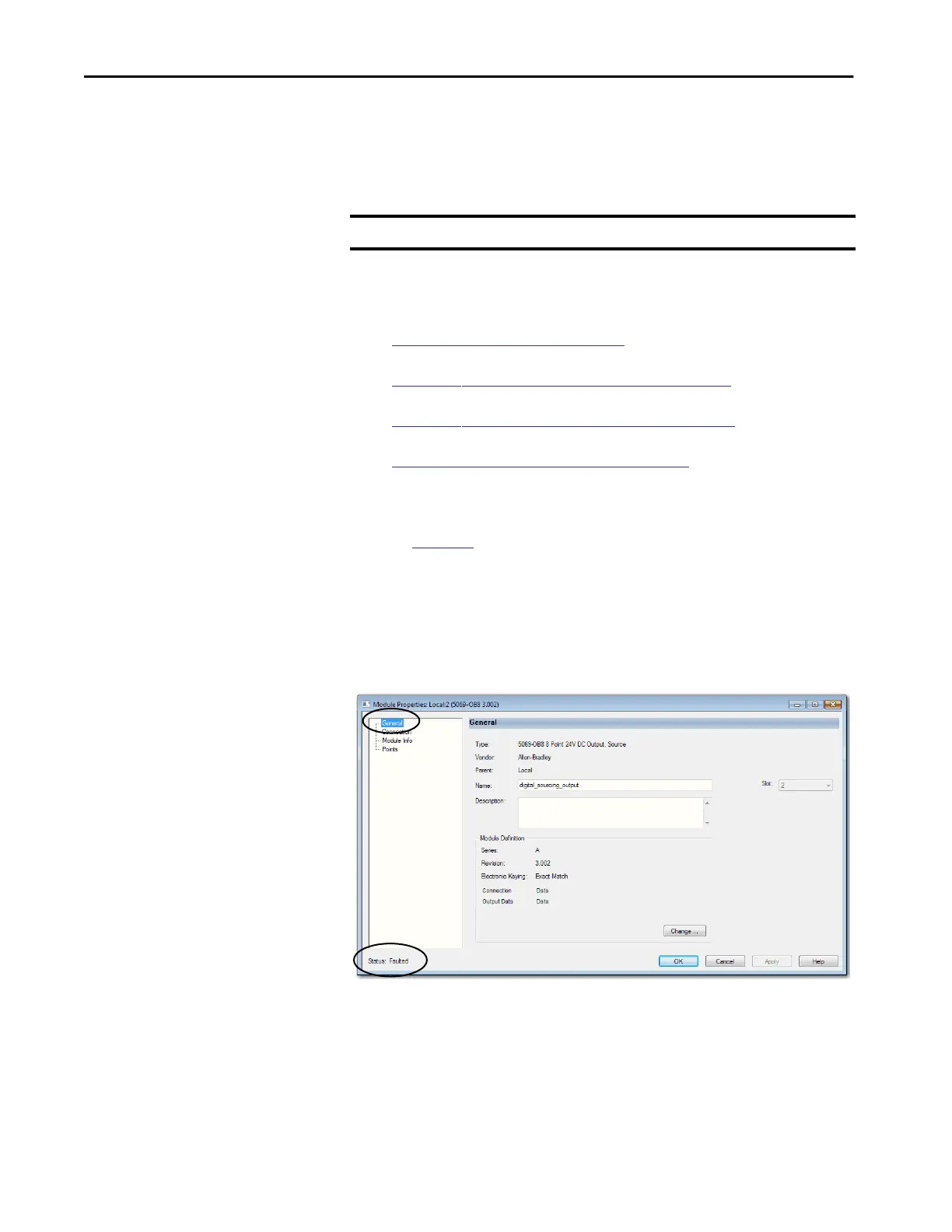

Figure 50 - Module Status in Fault Message Line
IMPORTANT The number and type of categories varies by I/O module type.
