Rockwell Automation Publication 5069-UM002A-EN-P - January 2019 89

Start to Use the Controller Chapter 3

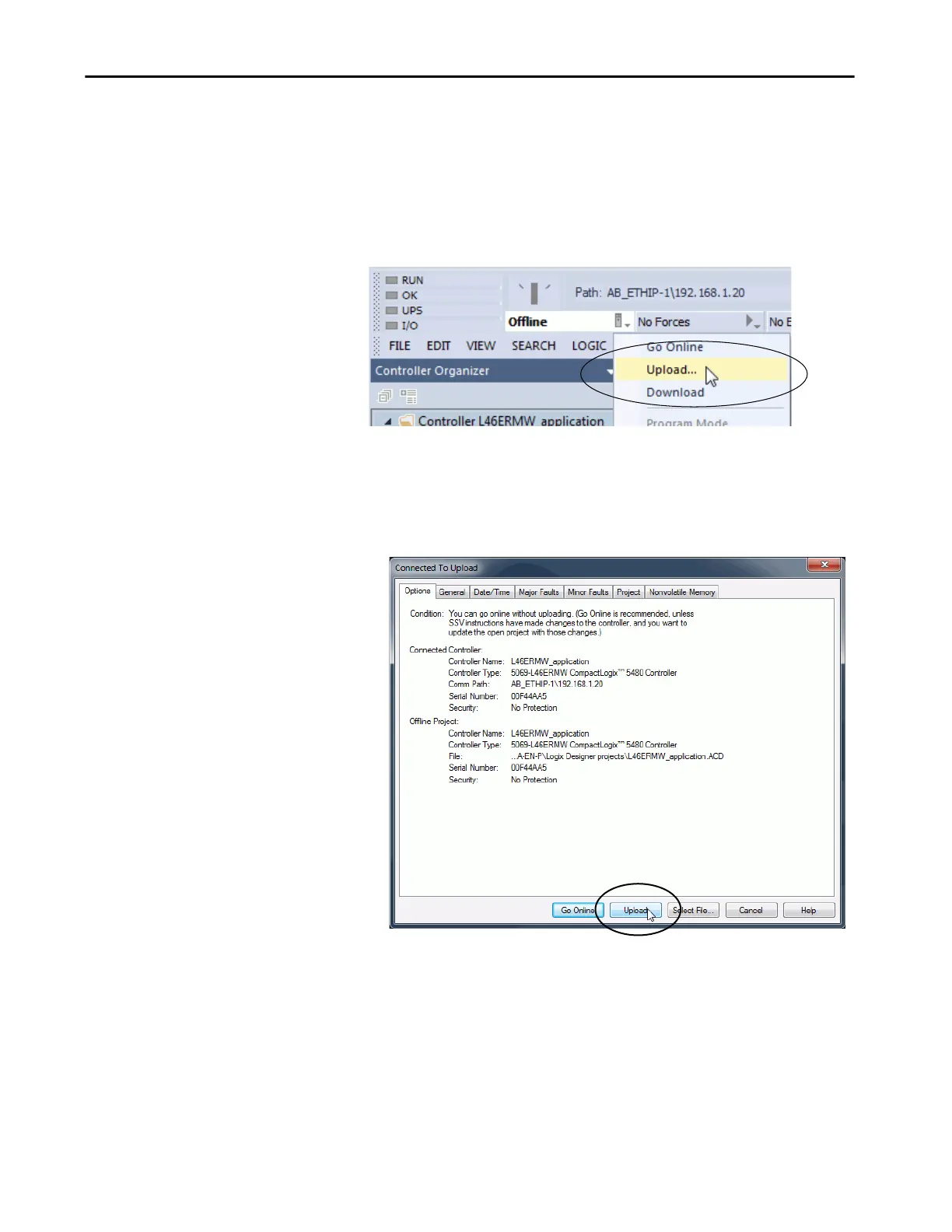

Use the Controller Status Menu to Upload

After you establish a communication path in the Logix Designer application,

you can use the Controller Status menu to upload from the controller.

1. From the Controller Status menu, choose Upload.

2. On the Connected to Upload dialog box, verify that the project is the

one you want to upload.

3. Click Upload.
