88 Rockwell Automation Publication 5069-UM002A-EN-P - January 2019

Chapter 3 Start to Use the Controller

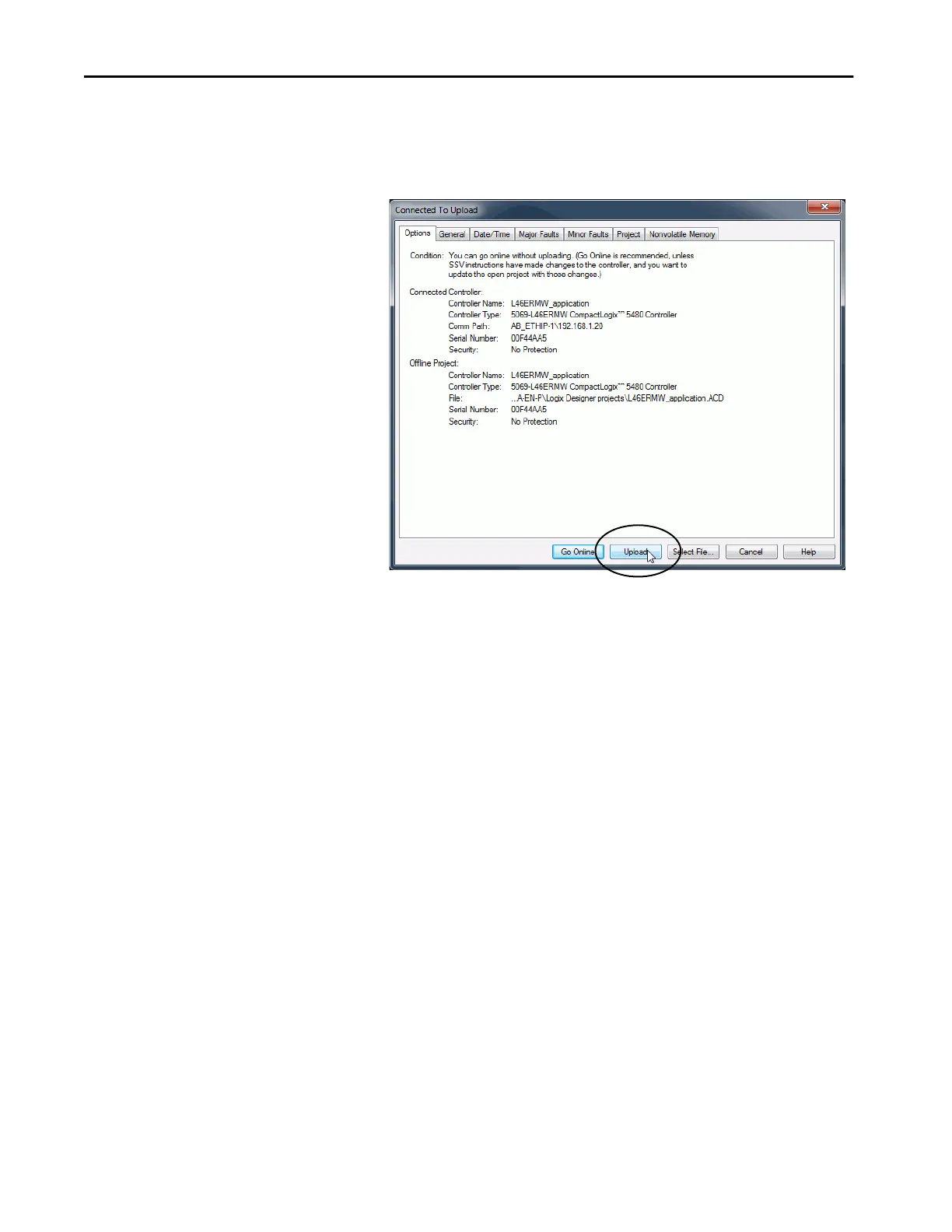

4. On the Connected to Upload dialog box, verify that the project is the

one you want to upload.

5. Click Upload.

For more information on the Connected To upload dialog box, see the Logix

Designer application online help.
