Rockwell Automation Publication 5069-UM002A-EN-P - January 2019 59

Connect to the Controller Chapter 2

Disable BOOTP/DHCP with RSLinx Classic Software

To disable BOOTP/DHCP from RSLinx Classic software, complete the

following steps.

1. Start RSLinx Classic software.

After several seconds, an RSWho dialog box appears.

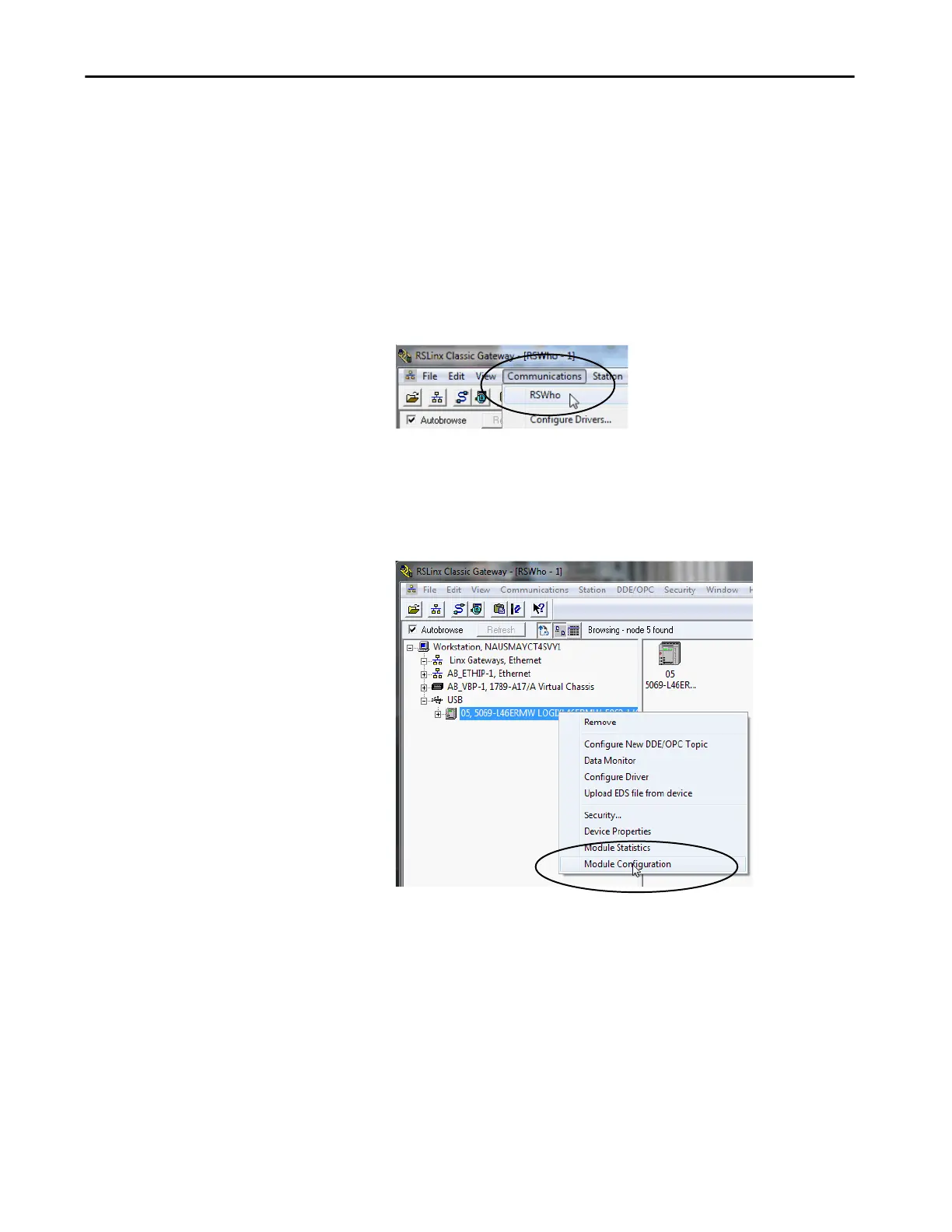

2. If no RSWho dialog box appears, from the Communications pull-down

menu, choose RSWho.

3. Navigate to the controller.

You can access the controller via the USB or an EtherNet/IP driver.

4. Right-click on the controller and choose Module Configuration.
