66 Rockwell Automation Publication 5069-UM002A-EN-P - January 2019
Chapter 2 Connect to the Controller
Set the Controller IP Address with the Logix Designer Application
Complete the following steps to use the Logix Designer application to set the
controller IP address when it is in the out-of-box state.
1. Confirm that your computer is connected to the controller via a
USB cable.
2. Confirm that the controller is offline.
3. Start the Logix Designer application.
4. Create a project.

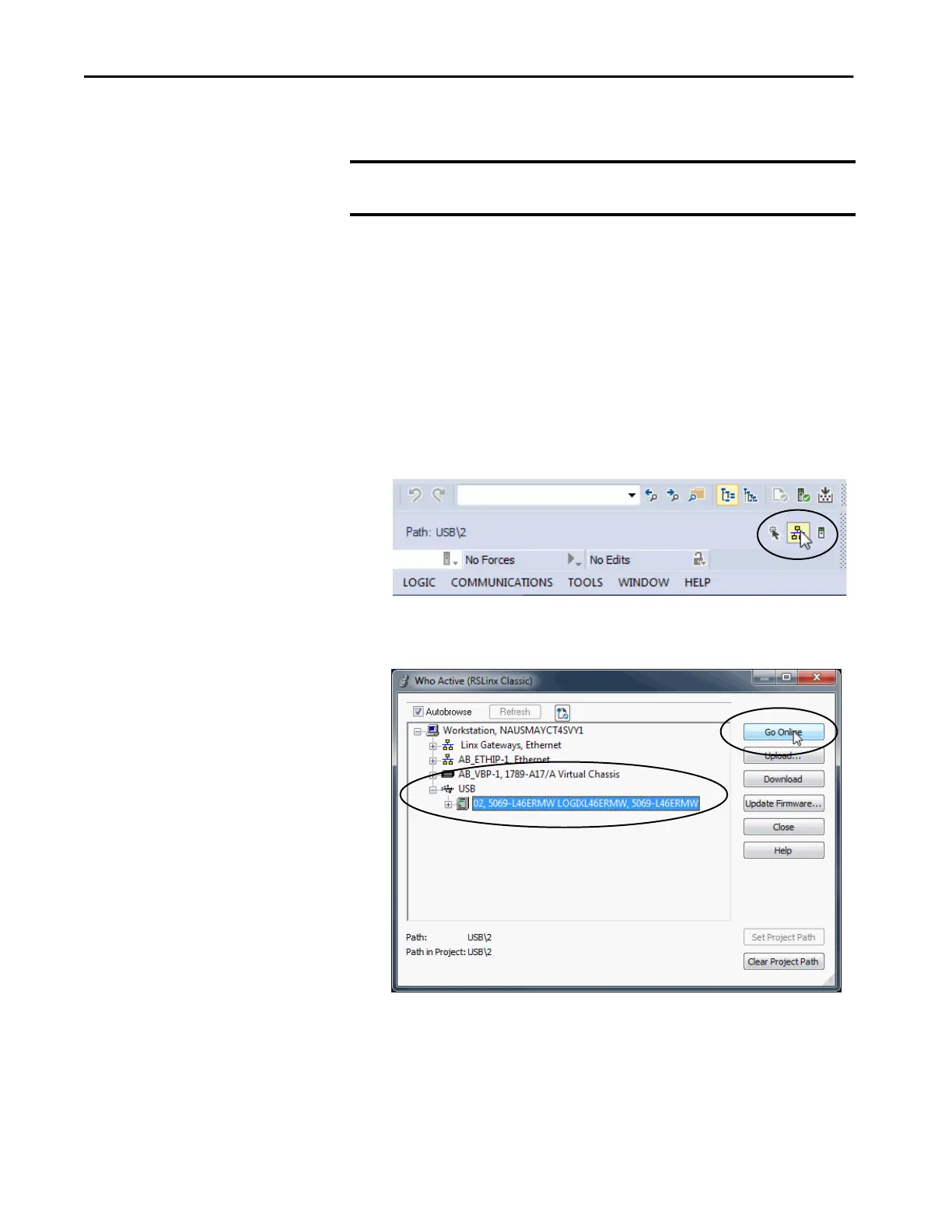

5. Use RSWho to browse to the controller.
6. Select the controller and click Go Online.
IMPORTANT You must install firmware on your controller before you can use the Logix
Designer application to set the controller IP address.
