Rockwell Automation Publication 5069-UM002A-EN-P - January 2019 65

Connect to the Controller Chapter 2

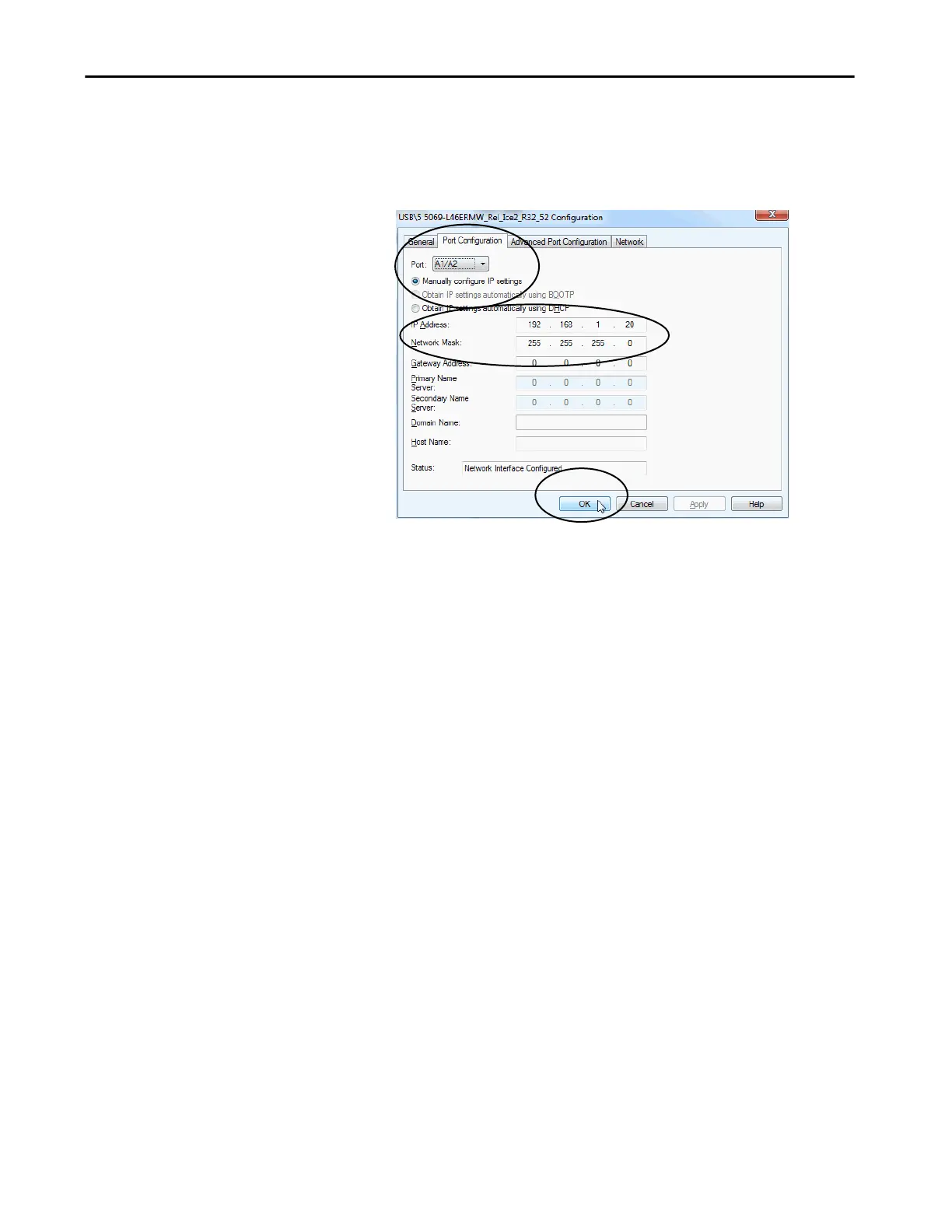

6. On the Port Configuration tab, click Manually configure IP settings for

the port.

7. Assign the port configuration parameters and click OK.
