136 Rockwell Automation Publication 5069-UM002A-EN-P - January 2019

Chapter 6 Connect to Different EtherNet/IP Network Levels

Configure the EtherNet/IP

Modes

You can configure the EtherNet/IP modes with the following:

• Logix Designer application

• RSLinx® Classic software

Configure Dual-IP Mode in the Logix Designer Application

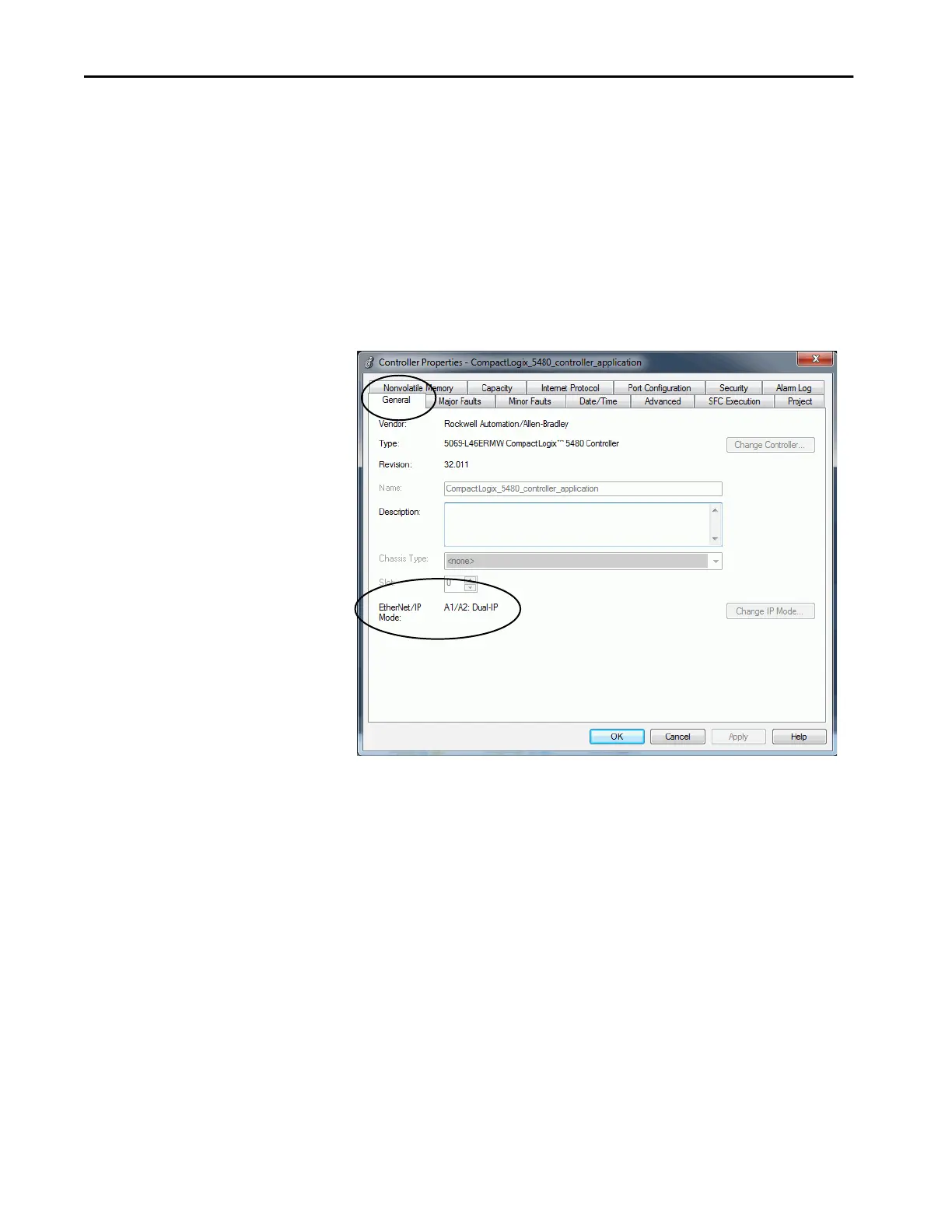

In the Logix Designer application, the EtherNet/IP Mode is Dual-IP by

default and is displayed on the General tab in the Controller Properties

dialog box.
