Allen-Bradley CompactLogix 5480 User Manual

Rockwell Automation Publication 5069-UM002A-EN-P - January 2019 267
Troubleshoot the Controller Chapter 11
Ethernet Port Webpages
The Ethernet Port webpages use a series of tabs to provide information about
the following:
• Diagnostic Overview
• Network Settings
• Ethernet Statistics
When the controller is in Linear/DLR mode, the Network Settings and
Ethernet Statistics tabs provide more information for ports A1 and A2 than
port B1.
The Ethernet port webpages are shown as follows:
•
Figure 59 shows the Ethernet Port webpage when the controller is in
Linear/DLR mode.
•
Figure 60 shows the Ethernet Port webpage when the controller is in
Dual-IP mode.

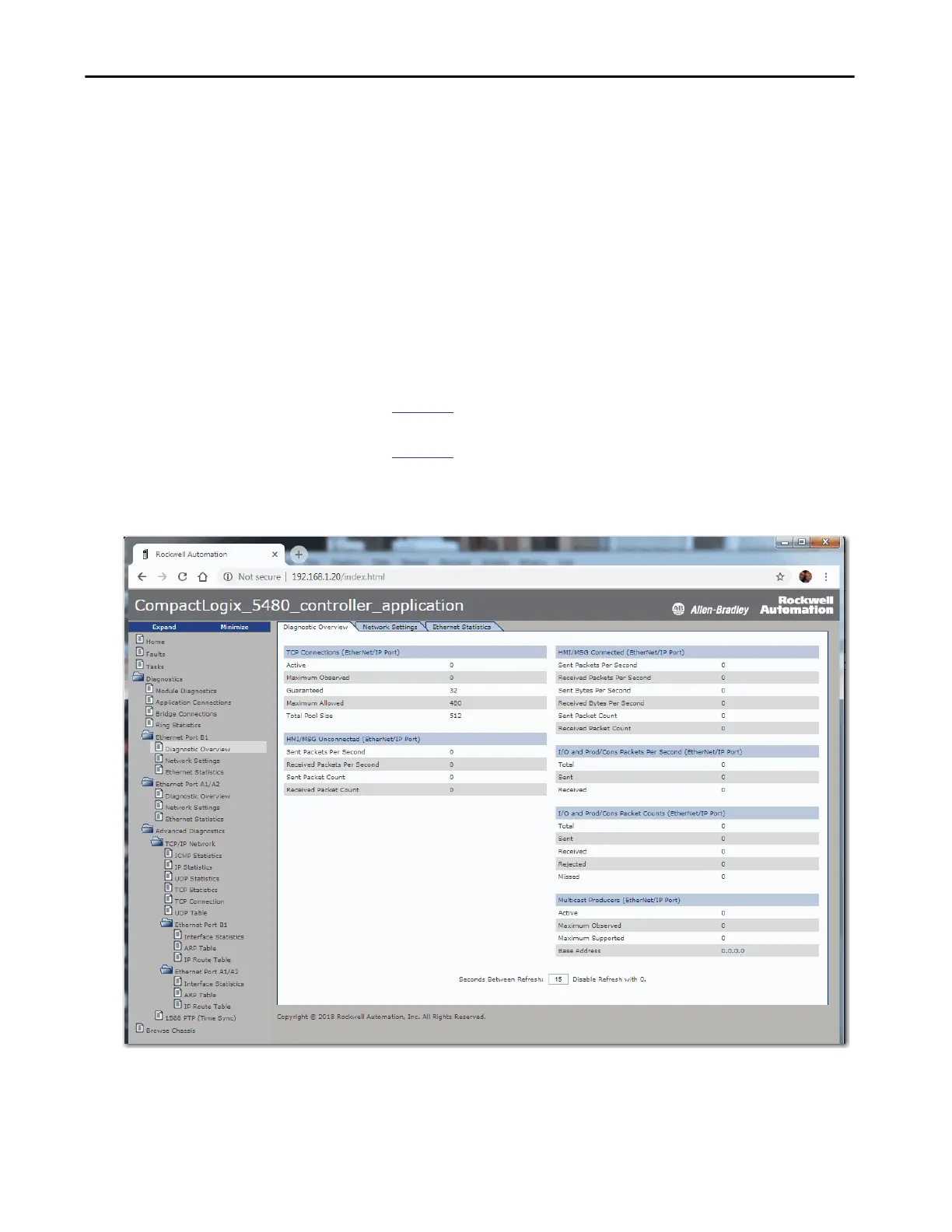

Figure 59 - Ethernet Port Webpage - Linear/DLR Mode
