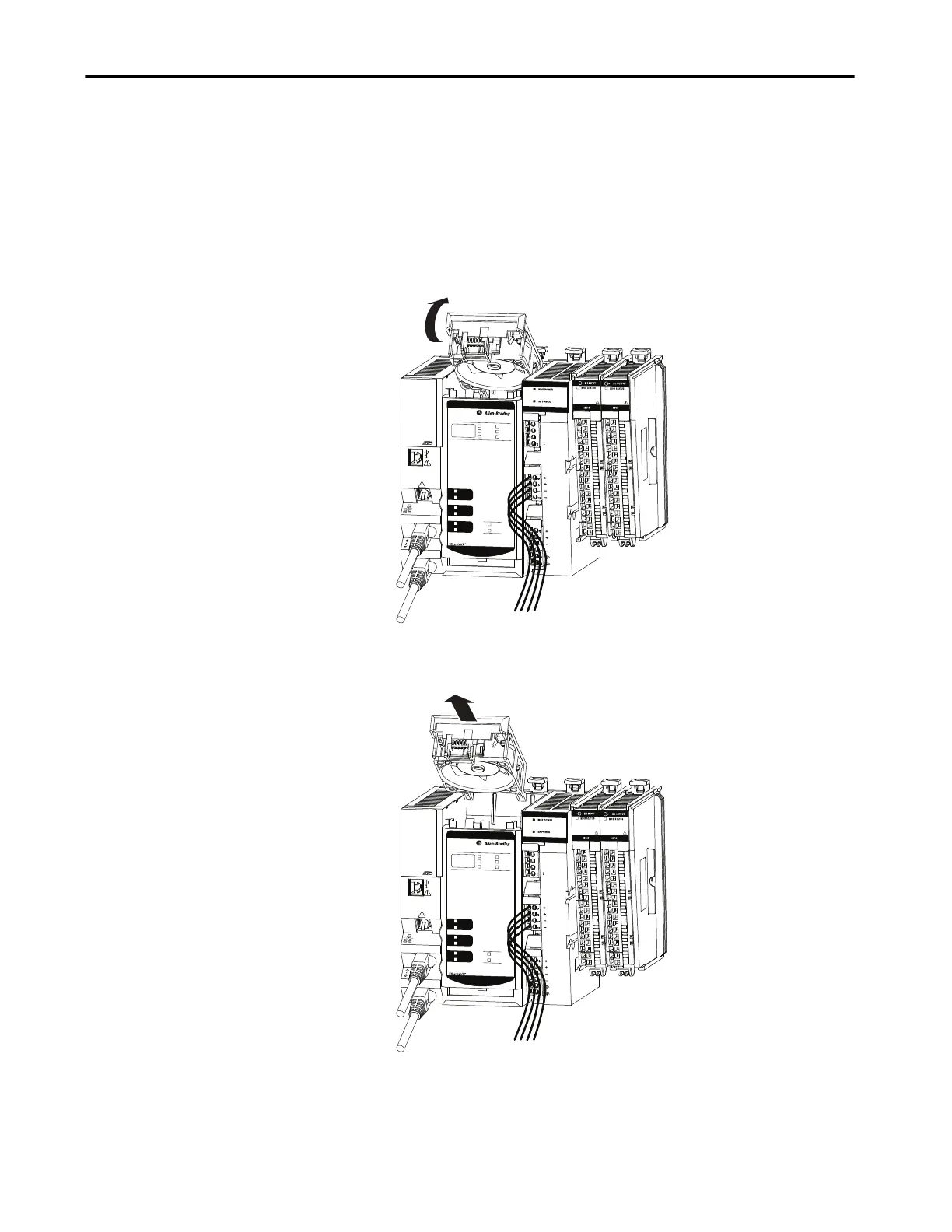

Remove the Top Fan
1. Push up on the front of the fan.
Make sure that the fan is fully disengaged before you try to pull it out.
2. Pull the fan out of the slot at the top of the controller.
TIP If the hinges do not disengage when you push up on the front of the
fan, then use a screwdriver as a pry tool.
