84 Rockwell Automation Publication 5069-UM002A-EN-P - January 2019

Chapter 3 Start to Use the Controller

Use a Recent Communications Path to Go Online

You can also select a recent communications path and go online or apply it to

your project.

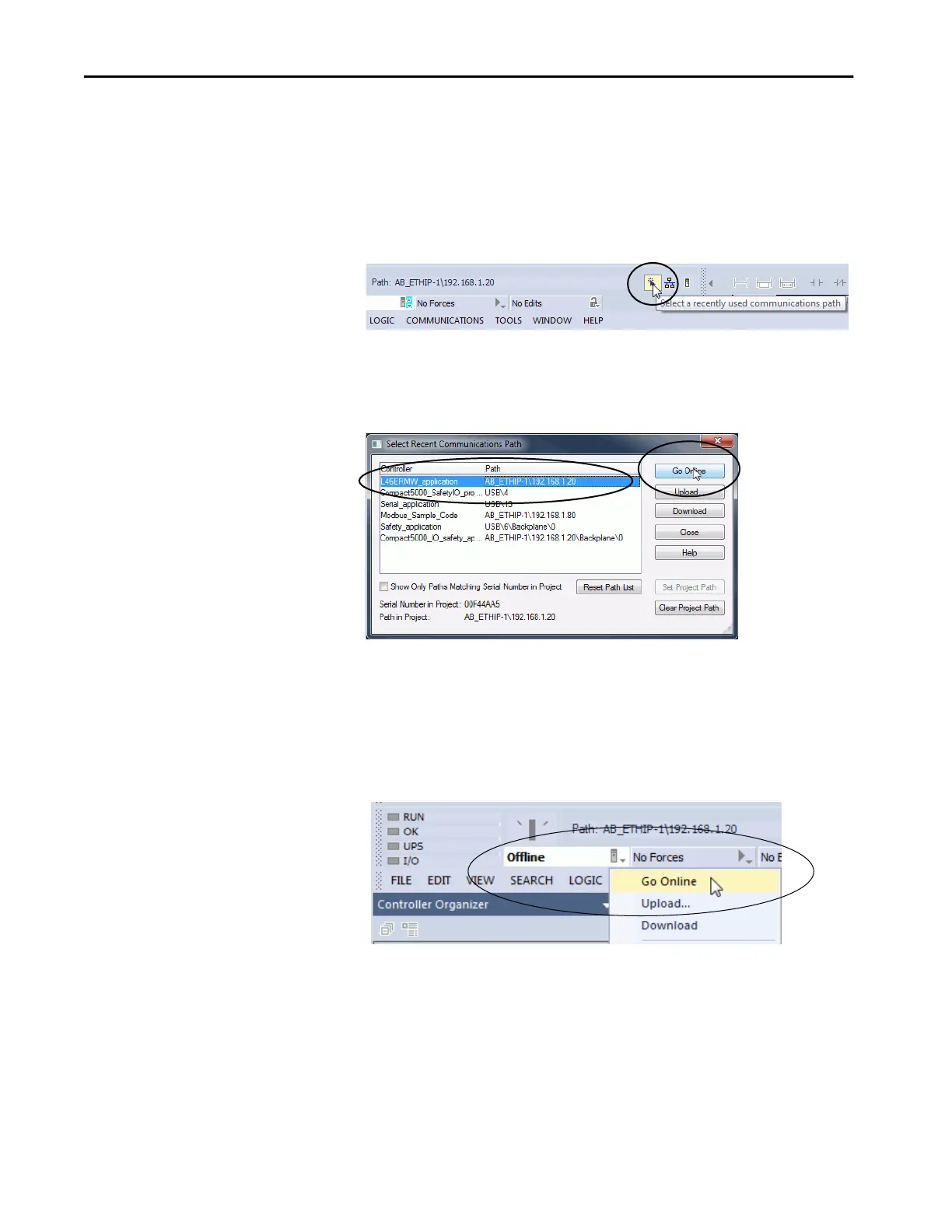

1. Click the Recent Communications Path icon next to the Path bar.

2. On the Select Recent Communications Path dialog box, choose the

desired path and click Go Online.

Use the Controller Status Menu to Go Online

From the Controller Status pull-down menu, click Go Online.

Default Chapter3
