150 Rockwell Automation Publication 5069-UM002A-EN-P - January 2019

Chapter 6 Connect to Different EtherNet/IP Network Levels

Internet Protocol Configuration in Logix Designer Application

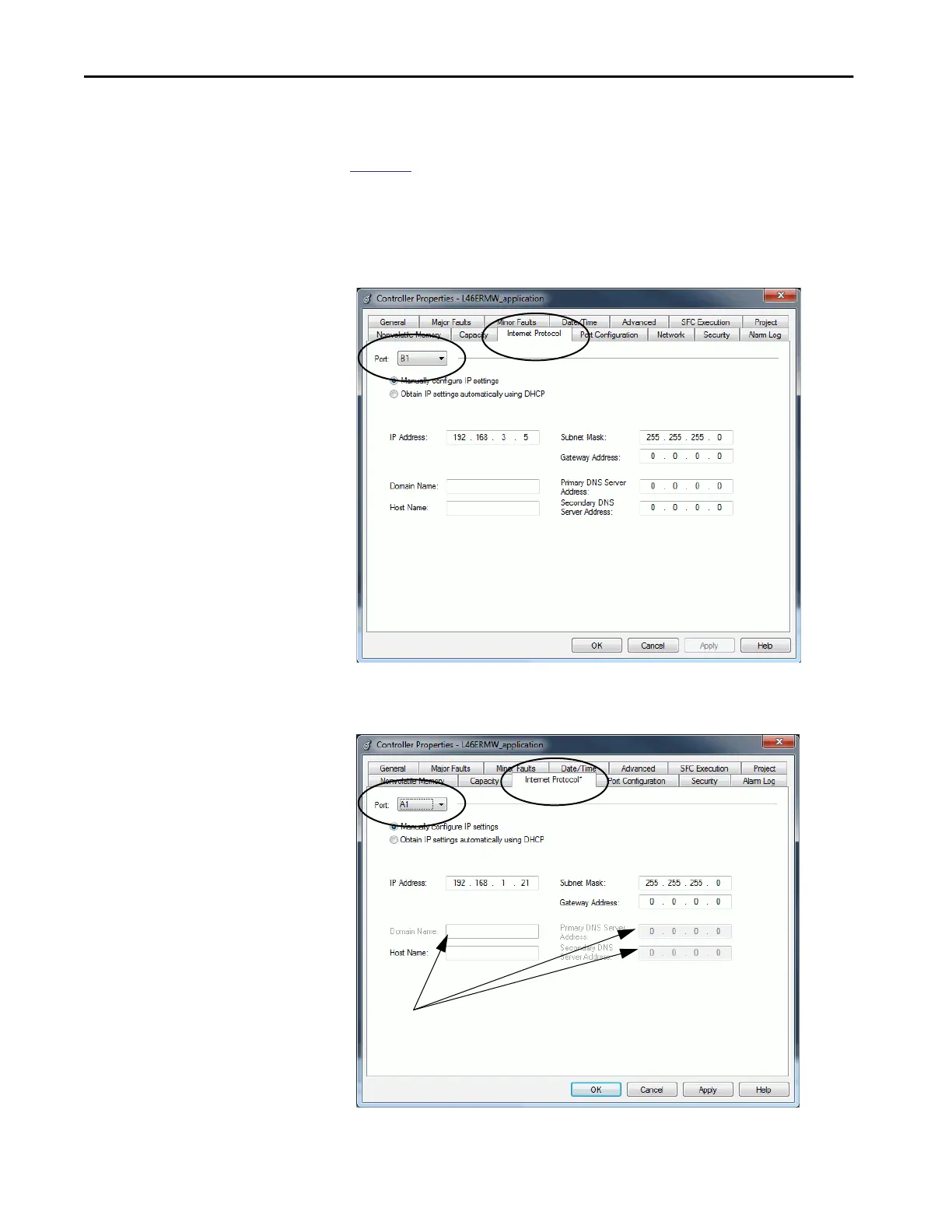

Figure 20 shows differences between Internet Protocol configurations on the

controller in the Logix Designer application.

Figure 20 - Differences Between Enterprise-level Port Configuration and Device-level

Configuration

Enterprise-level Port

Device-level Port

Parameters are not configured for the device-level port.
