Rockwell Automation Publication 5069-UM002A-EN-P - January 2019 67

Connect to the Controller Chapter 2

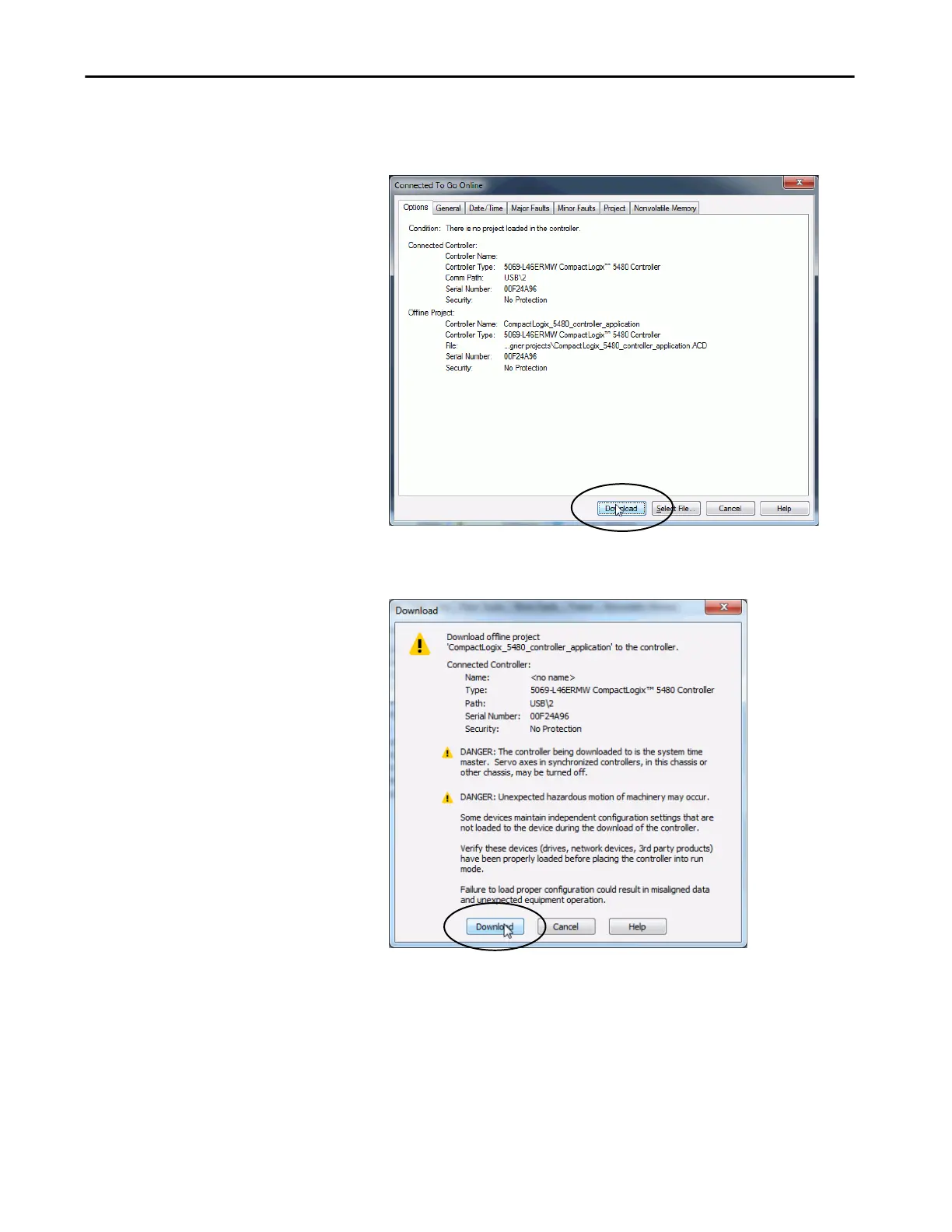

7. When the Connected To Go Online dialog box appears,

click Download.

8. When the Download dialog box appears, click Download.
