60 Rockwell Automation Publication 5069-UM002A-EN-P - January 2019

Chapter 2 Connect to the Controller

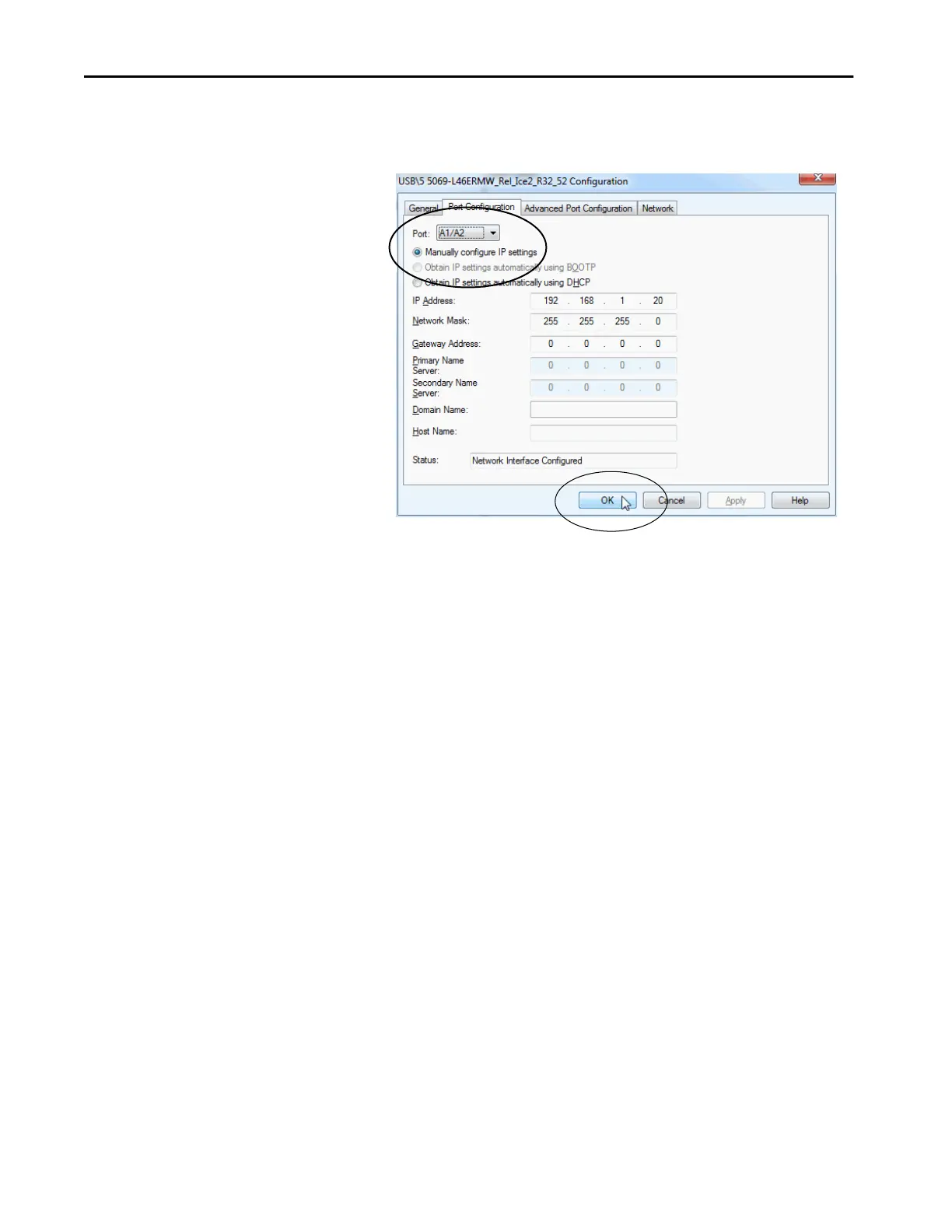

5. On the Port Configuration tab, click Manually configure IP settings for

the port, and click OK.
