148 Rockwell Automation Publication 5069-UM002A-EN-P - January 2019

Chapter 6 Connect to Different EtherNet/IP Network Levels

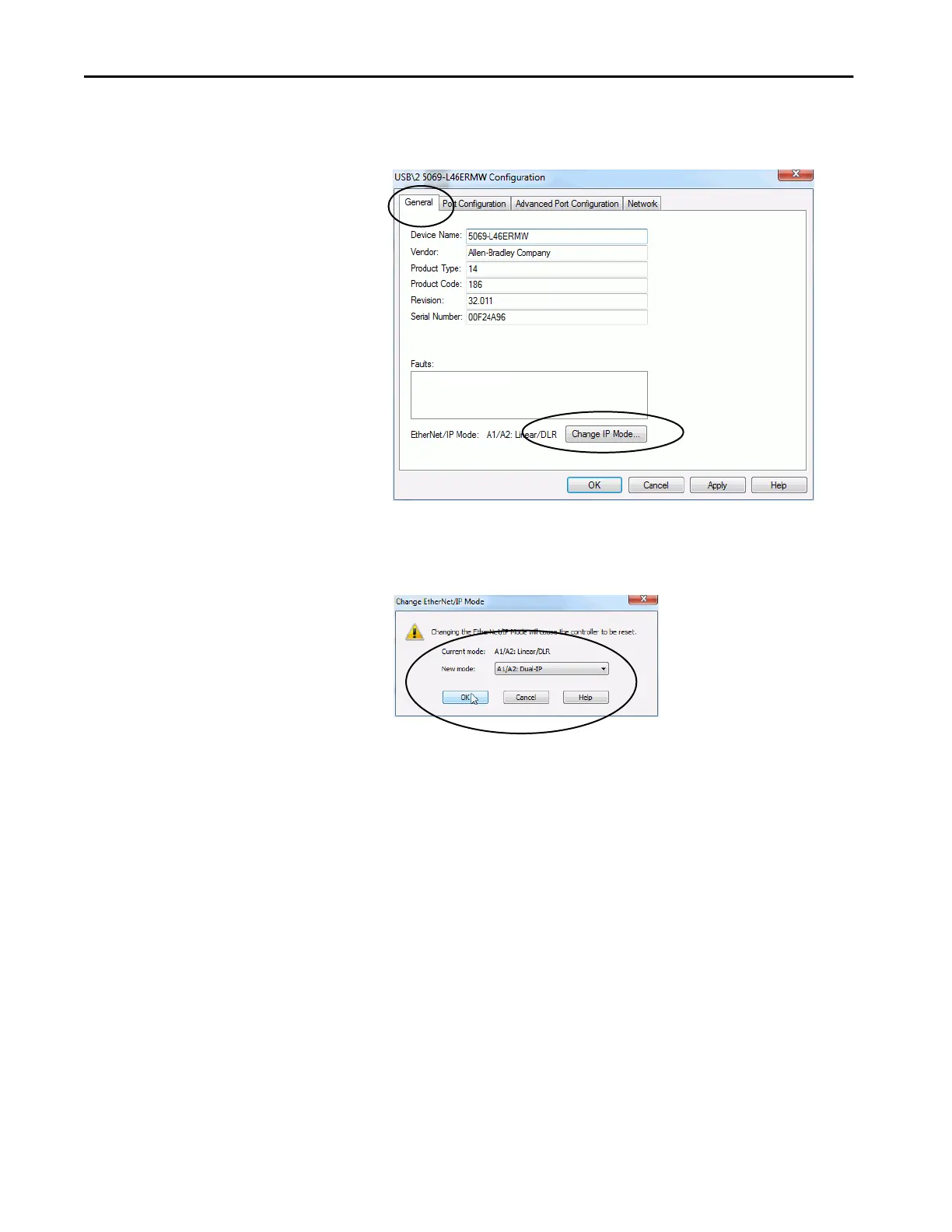

4. On the General tab of the Configuration dialog box, click

Change IP Mode.

5. From the New mode pull-down menu, choose the new mode and

click OK.
