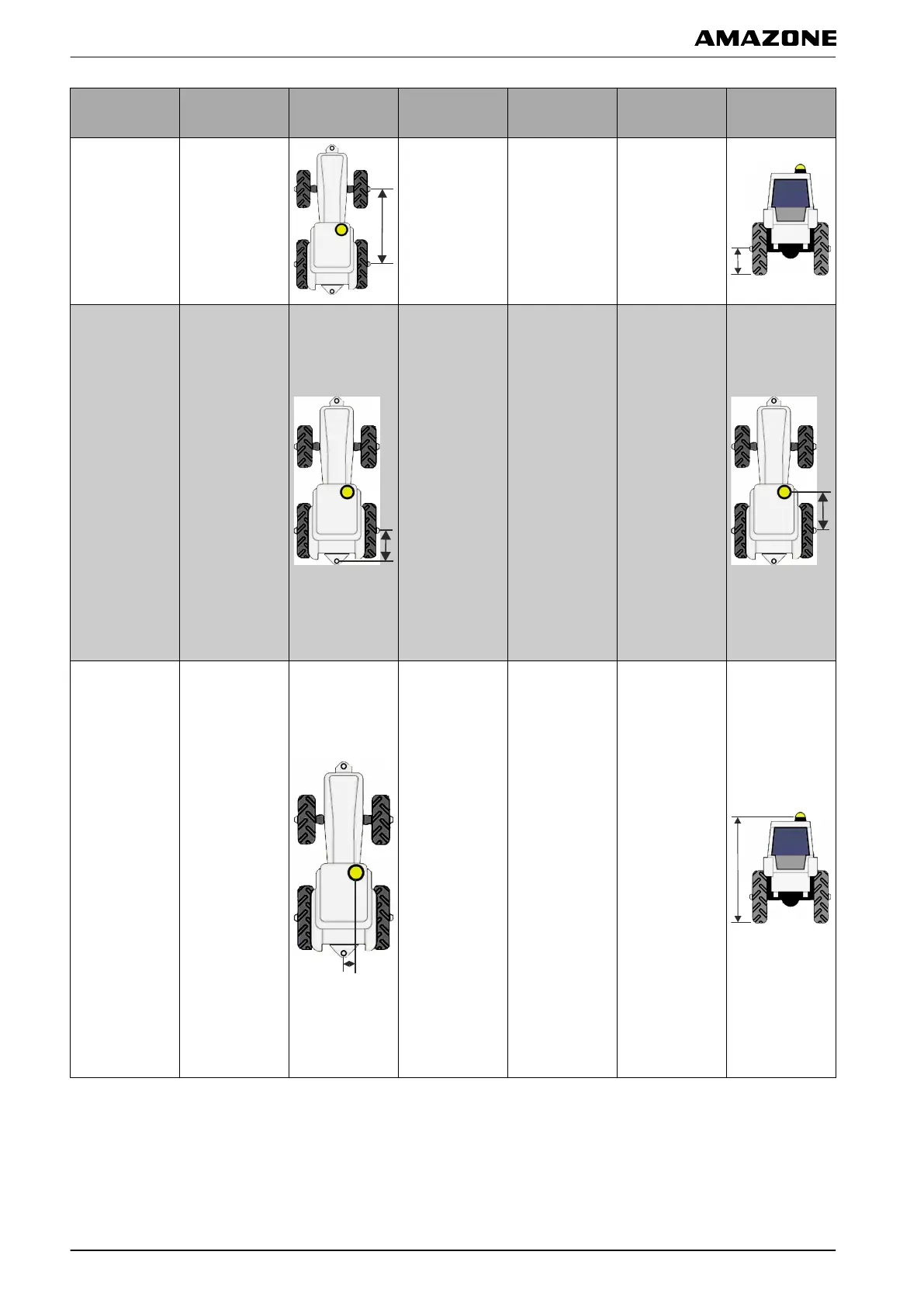

Geometry
value
Description Figure
Geometry
value
Description Figure
Axle distance
Distance from
the centre of
the front
axle
to the centre of
the rear axle.
Axle height
Distance from
the axle
to the
ground.
Implement
force
transmission
point
Distance from
the centre of
the rear axle
to
the pulling
point.
GPS antenna
Forward offset
of the GPS
receiver
to the
rear axle
Positive value:
Receiver is
installed in
front of the
rear axle.
Negative
value:
Receiver is
installed
behind the rear
axle.
GPS steering
Right offset of
the
GPS
receiver to the
centre of the
axle
Positive value:
Receiver is
installed to the
right of the
centre of the
axle.
Negative
value:
Receiver is
installed to the
left of the
centre of the
axle.
GPS height
Distance from
the
ground to
the upper side
of the GPS
receiver
