Version 6.4 47 March 2012
SIP User's Manual 3. Web-Based Management
To view the configuration settings of an entry:
1. Select the table row that you want to view, and then click the View/Unview button; a
Details pane appears below the table, displaying the configuration settings of the
selected row, as shown below:

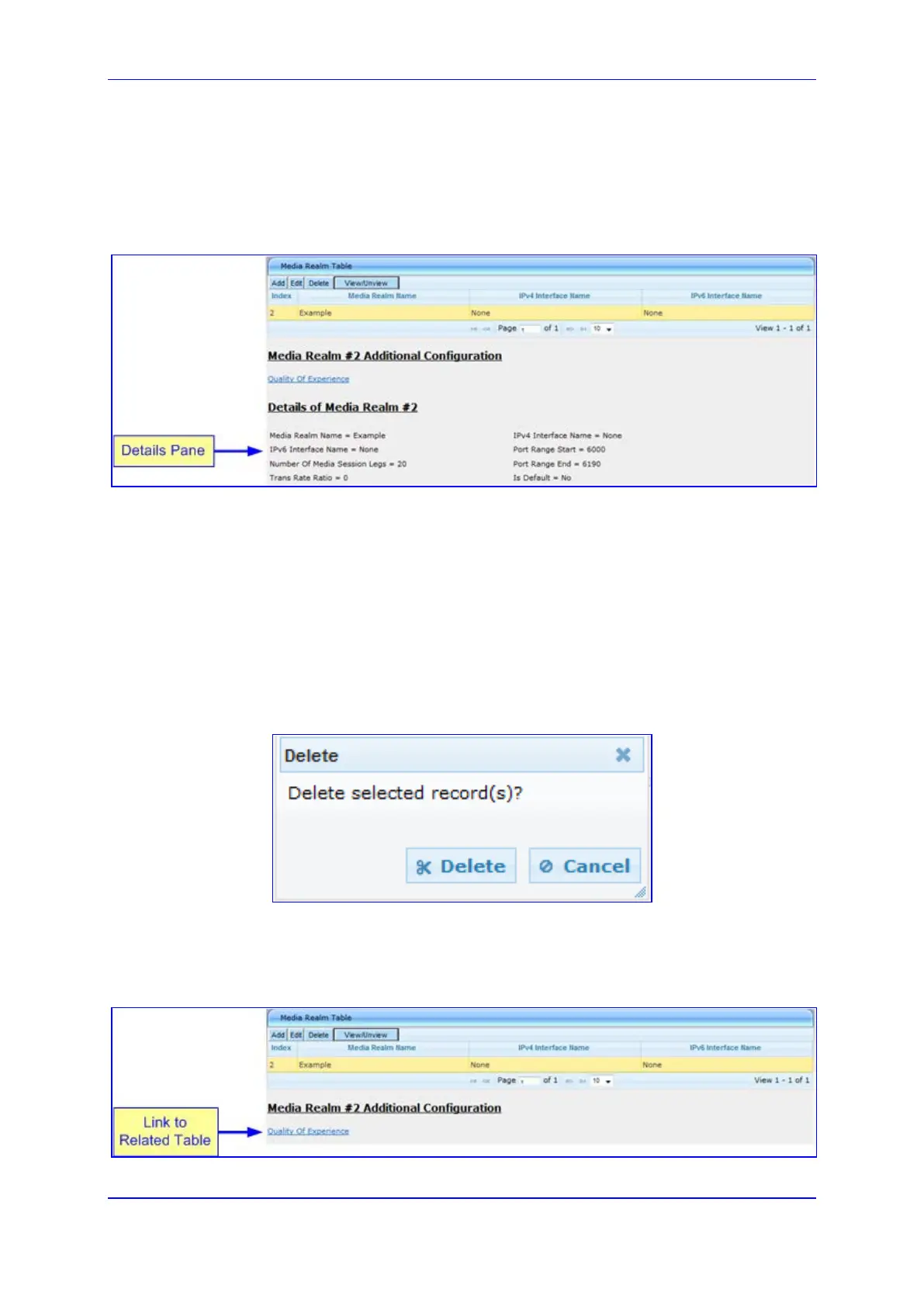

Figure 3-15: Displayed Details Pane
2. To hide the Details pane, click the View/Unview button again.
To edit an entry:
1. Select the table row that you want to modify, and then click the Edit button; the Edit
Record dialog box appears.
2. Make the required changes, and then click Submit.
To delete an entry:
1. Select the table row that you want to delete, and then click the Delete button; the
Delete message box appears:
Figure 3-16: Delete Message Box
2. Click Delete to confirm deletion (or Cancel to abort the process).
Some tables provide a link to a related table for advanced configuration of a selected row
entry, as shown below:
Figure 3-17: Link to Related Table
