82.3-0000010 OM
141
4.10.5 Procedure of filling tires with water or aqueous solution
Filling the tire with liquid shall be carried out in the following order:
- jack up (lift up) the tractor;
- turn wheel 2 (figure 4.10.1) so that valve 1 is on its top;
- screw out the spool and put a combined “air-water” valve 2 (figure 4.10.2), through
which water (solution) is filled in and air is removed from the tire at the same time;
- fill up the water (solution);
- after filling up, withdraw the combined valve and screw the spool in, and adjust inner
pressure to normal operating pressure.
ATTENTION: PRESSURE OF WATER (SOLUTION)-FILLED TIRES SHALL BE
CHECKED ONLY WHEN THE VALVE IS IN THE TOP POSITION, OTHERWISE WATER
ENTERING THE TIRE PRESSURE GAUGE CAN CAUSE PRESSURE GAUGE FAIL-
URE!

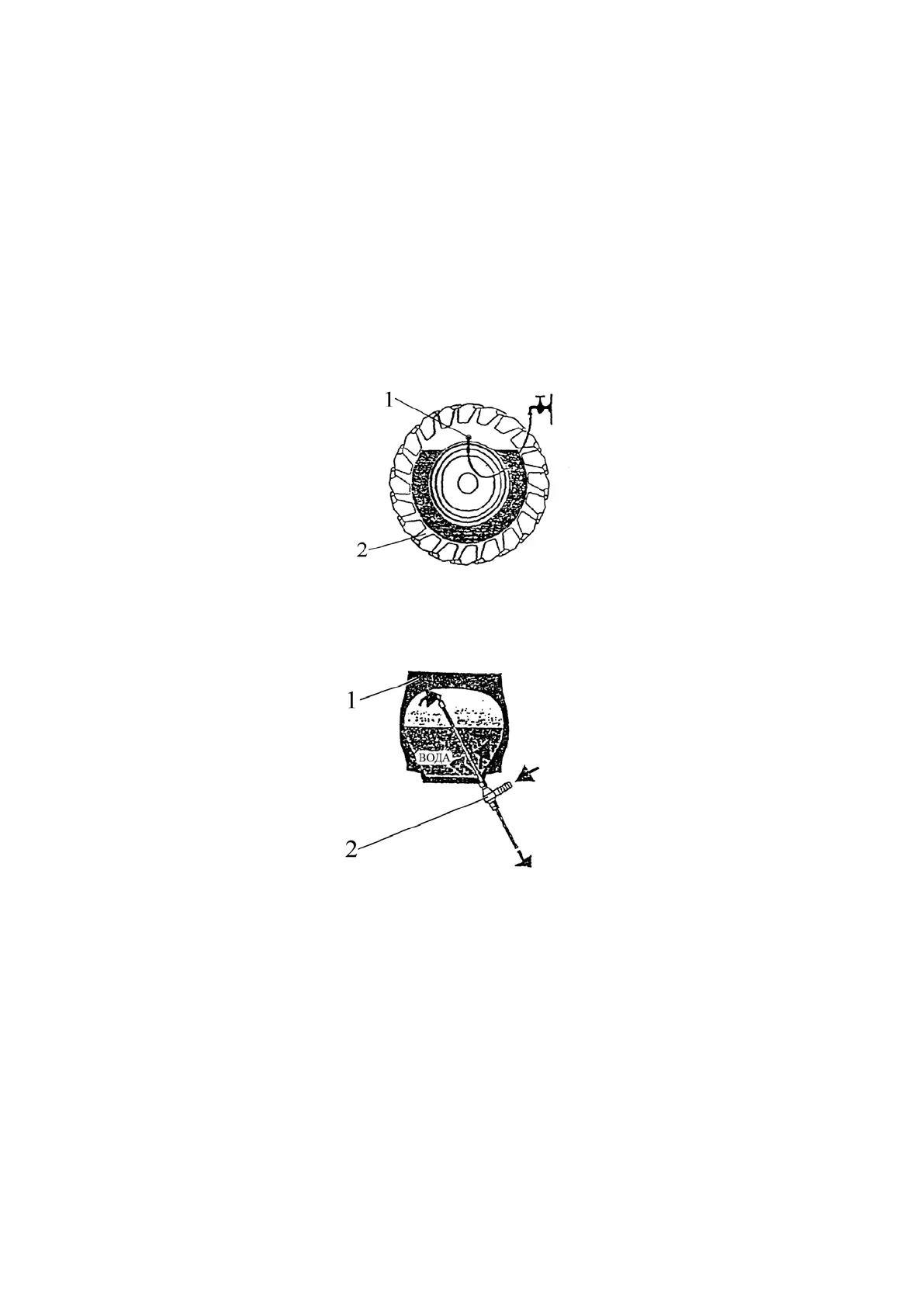

1 – valve; 2 – wheel.
Figure 4.10.1 – Position of the wheel during filling up of water (water solution)
1 – tire; 2 – combined “air-water” valve.
Figure 4.10.2 – Scheme of filling the tire with water (water solution)
4.10.6 Procedure of partial release of water or aqueous solution from tires
For partial liquid drain the following shall be carried out:
- unload the wheel with liquid: jack up the wheel so that it does not touch the ground;
- place the wheel in such a way that the valve is in the bottom position;
- screw the spool out and drain water or non-freezing solution to the level of the
valve lower position.
