ANNEX А
(compulsory)

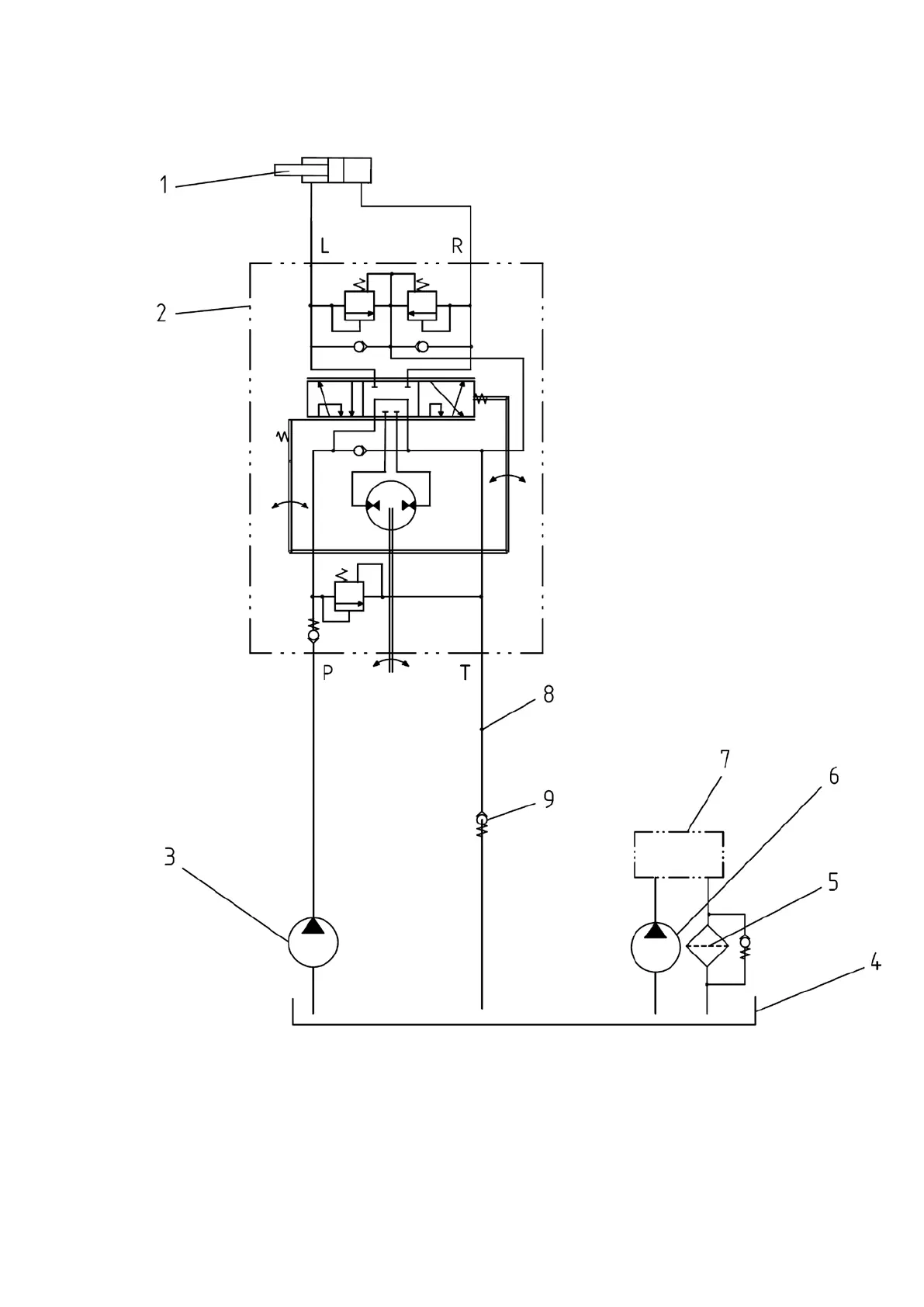

HSC hydraulic circuit diagram
1 – hydraulic cylinder; 2 – dosing pump; 3 – HSC feed pump; 4 – oil tank for HLL
and HSC; 5 – filter; 6 – HLL pump; 7 - hydraulic lift linkage (HLL); 8 – pressure sensor; 9 –
valve.
Figure А1 – HSC hydraulic circuit diagram
Note – conjoint oil tank for HSC and HLL.
