Belarus 82.3 - Tow Hitch with Draw Bar of Category 2 under ISO 6489-3

82.3-0000010 OM
117
4.4.9 Tow hitch with draw bar of category 2 under ISO 6489-3

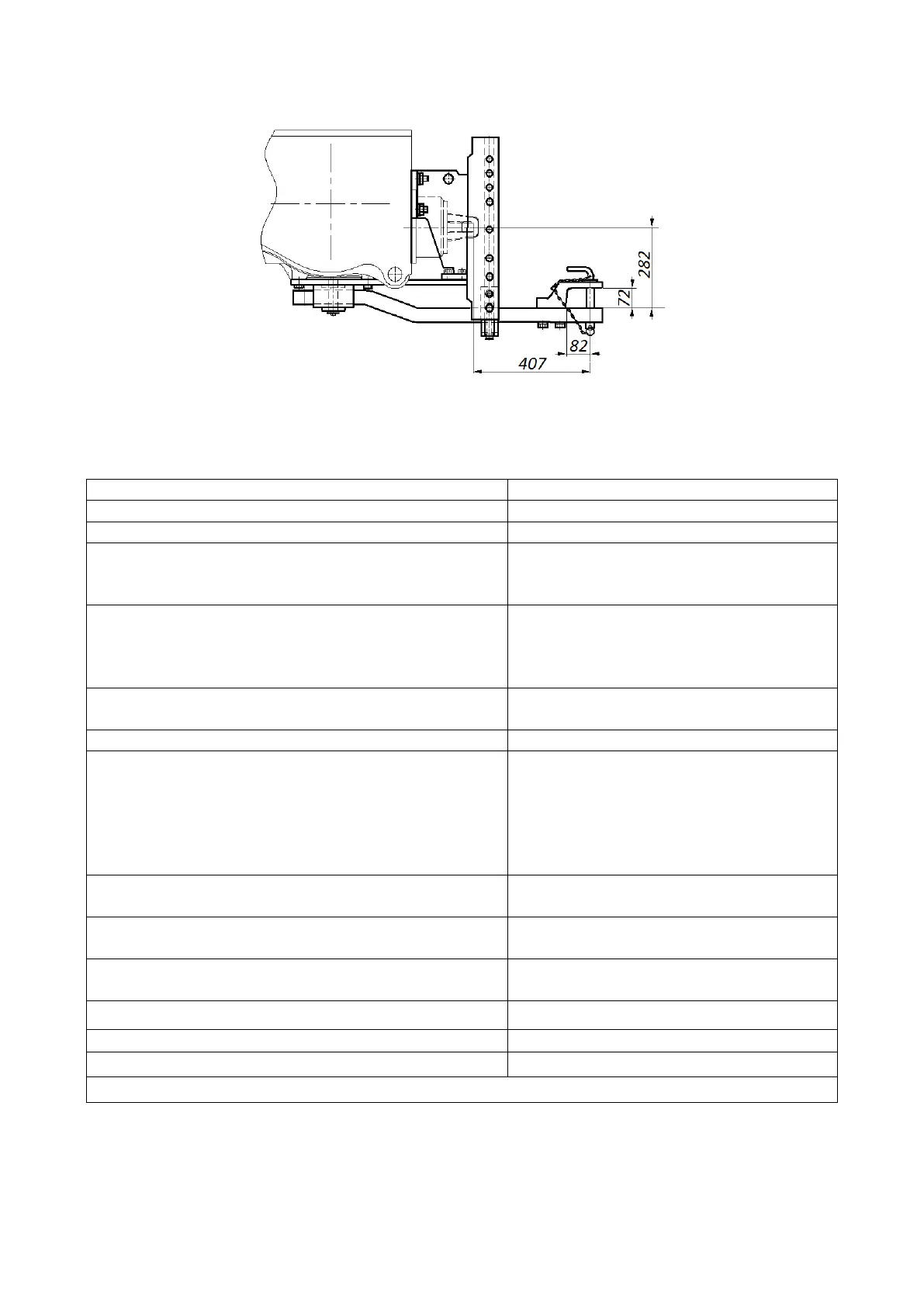

Figure 4.4.10 – Installation scheme of draw bars of category 2 under ISO 6489-3
and GOST 32774
Table 4.4.8 – Basic parameters and coupling dimensions of draw bar of category 2
under ISO 6489-3
Parameter
Specification
1 Tow hitch element
Draw bar
2 Designation
1221-2707150
3 Mounting location
In the lower part of the rear axle body
and the bracket attached to the rear sur-
face of the rear axle body
4 Purpose
For connection of trailed and semi-trailed
agricultural machines, mainly those op-
erating with PTO,
except for trailers and
semi-trailers
5 Design features
Draw bar with a single position provided
for this tractor model (normal)
6 Dimensions, mm: kingpin diameter
30
7 Type of trailing appliance for connection to draw
bar
Trailing appliances in accordance with
GOST 34598-2019.
Hitch eyes of category 2 under
ISO 21244:2008.
Hitch eye with circular section of eyelet
body variant X under ISO 5692-3:2011
8 Vertical load in hitch point, equivalent to weight,
kg, not more than:
1200
9 Relative calculated value of axial forces (D), kN,
not more than:
56.1
10 Safety device type
10.1 Connection point of safety device to the tractor
Safety chain (rope)
1)
Bores in guide grooves of mounting bracket
11 EU certificate type
1221-2707150
12 EU type approval, No
e1*2015/208*2018/829ND*500*00
13 Certificate of Customs Union Technical Regulation, No
–
1)
Machine accessory.
ATTENTION: MOUNTING OF THE COVER ON THE DRAW BAR FROM THE
BOTTOM (WITH OVERTURN) IS NOT ALLOWED!
