3.2.11 Front wheel track formation
The front wheel track is adjusted in stages by displacing the wheels from one side-
board to the other and by changing a position of the wheel disk in relation to the rim.
The front wheel track may have the following dimensions (mm): 1535, 1635, 1705,
1805, 1855, 1955, 2020, and 2120.
Diagrams of installation and track dimensions for tires 360/70R24 (basic configura-
tion) are given in table 3.2.8.

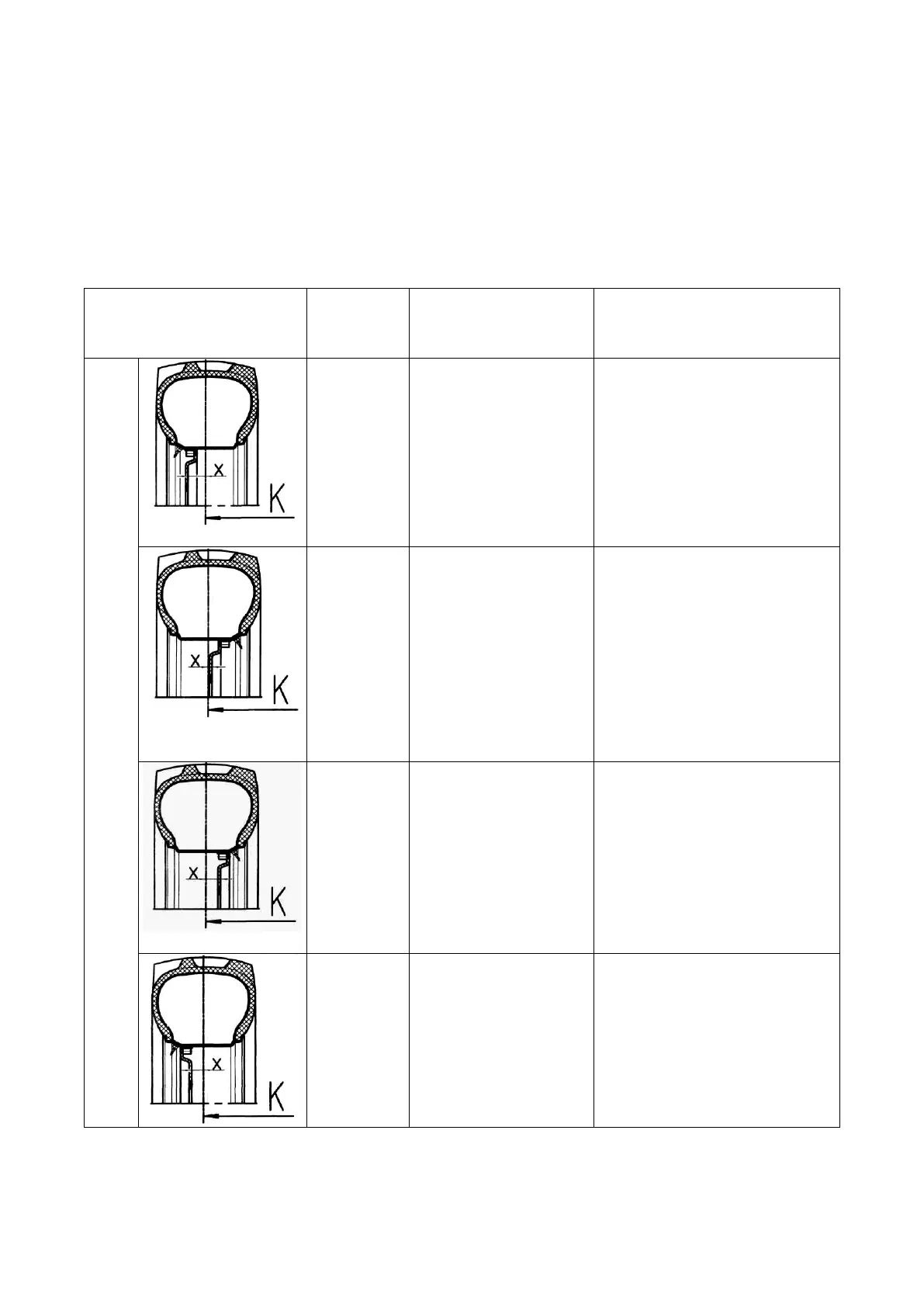

Table 3.2.8 – Front wheel track adjustment
Variants of mounting the
disk and the rim
Disk offset
Х, mm
Tractor track К, mm
(tire 360/70R24)
Description of mounting
method
Standard disc mounting with rim displacement
+140 1535
Main position. The inner sur-
face of the disk mates with
the reduction gear group
flange, and the disk is locat-
ed from the outer side of the
wheel support
+90 1635
Ex-works condition.
The rim is displaced relating
to the disk. The inner sur-
face of the support mates
with the disk.
Note - by agreement with
the tractor's customer, a dif-
ferent front wheel track may
be installed as ex-works
condition
-18 1855
The rim is turned by 180°.
The disk mates with the
support inner surface.
-68 1955
The rim is turned by 180°.
The disk mates with the
support outer surface.
