4.4.6 Tow hitch with automatic rotating yoke under ISO 6489-2

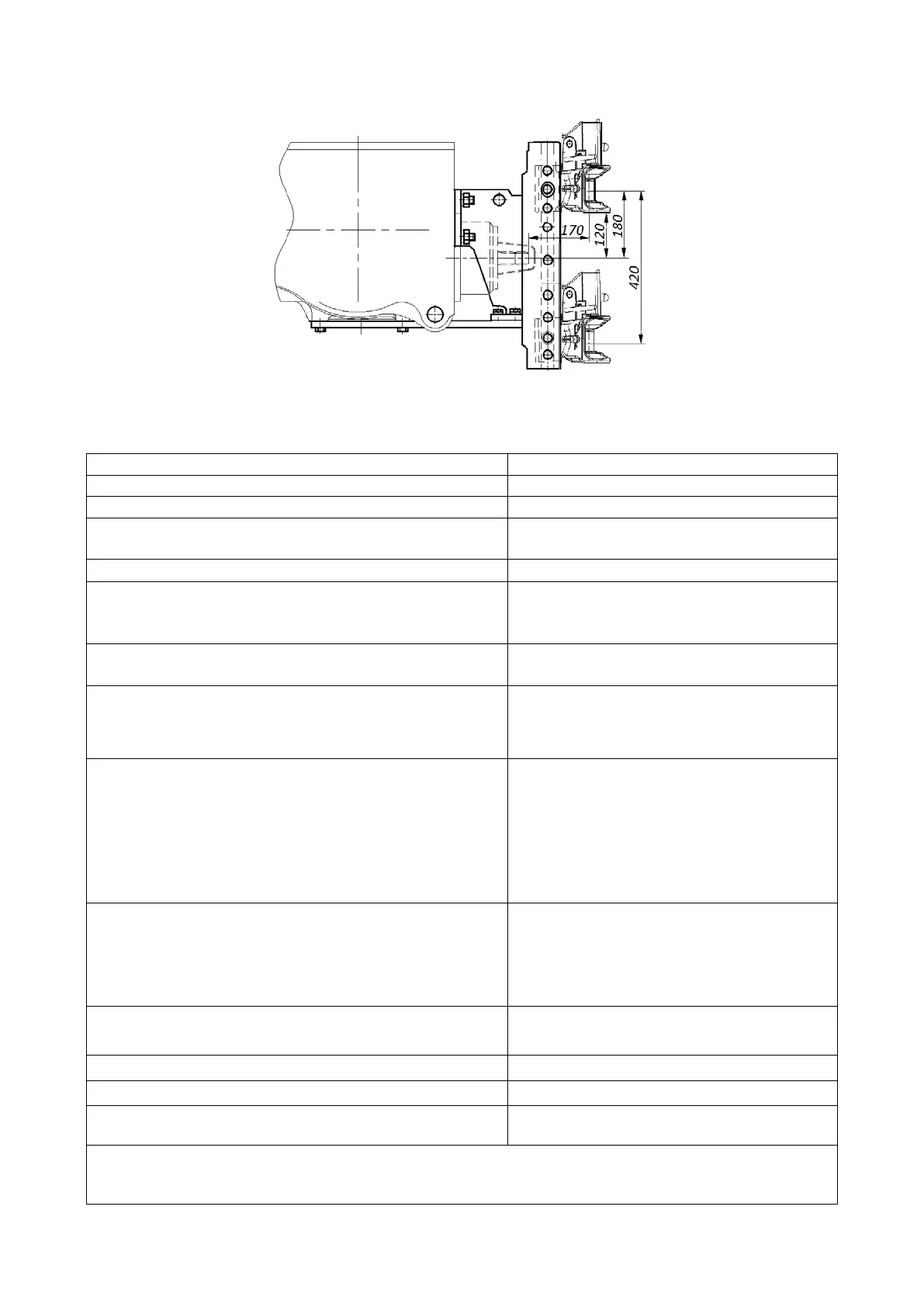

Figure 4.4.5 – Installation variant scheme of automatic rotating yoke under ISO 6489-2
(uppermost and lowermost positions are shown)
Table 4.4.5 – Basic parameters and coupling dimensions of automatic rotating yoke un-
der ISO 6489-2
Parameter
Specification
1 Tow hitch element
Automatic rotating yoke
2 Designation
Scharmuller Art. Nr. 03.3313.221
3 Mounting location
Guide grooves of the bracket attached to
rear surface of rear axle body
4 Design features
Automatic rotational, height adjustable
1)
5 Purpose
For connection of trailers and semi-
trailers. Operation with PTO is not pro-
vided.
6 Position of yoke
2)
for trailers with standard height
of draft pole
Upper position as shown in figure
7 Type of trailing appliance for connection to yoke
Non-rotating hitch eyes in accordance
with GOST 34598-2019, ISO 5692-
2,
DIN 11026, ISO 8755, DIN 74054-1 /-2
and DIN 11043
8 Vertical load in hitch point, equivalent to weight,
kg, not more than:
- specified on yoke nameplate;
-
permissible for the given tractor for yoke upper
position;
-
permissible for the given tractor for yoke lower
position;
2000
1000
1810
9 Relative calculated value of axial forces (D), kN,
not more than:
- specified on yoke nameplate;
- permissible with due account for yoke attach-
ment structure
82.4
43.6
10 Safety device type
10.1 Connection point of safety device to the tractor
Safety chain (rope)
3)
Bores in guide grooves of mounting bracket
11 EU certificate type, No
33350
12 EU type approval, No
e1*2015/208*2015/208ND*00266*00
13 Certificate of Customs Union Technical Regula-
tion, No
-
1)
The height should be set equal to the height of the trailer eye.
2)
Recommended.
3)
Machine accessory.
