When setting the RLL into transport position it is necessary to ensure full blocking of
buckles in transport position.
Full blocking of buckles in transport position shall be made as follows:
- if buckles were fully blocked in operating position, check side-sway range of the
machine (implement) while it is lifted in upper position, which shall not exceed 20 mm to
each side. Adjust buckle length when necessary, by turning screw 2 with handle 3;
- if buckles were partially blocked in operating position, make full blocking first as
described above. After doing so, check side-sway range of the machine (implement) while
it is lifted in upper position, which shall not exceed 20 mm in each side. Adjust buckle
length if necessary by turning screw 2 with handle 3.
4.3.3.1.3 Outer turnbuckles
During tractor operation outer turnbuckles shall always be blocked in one of the
three available positions:
- partial blocking of turnbuckles in operating position;
- full blocking of turnbuckles in operating position;
- full blocking of turnbuckles in transport position.
Partial blocking of turnbuckles in operating position shall be made as follows:
- attach the machine (implement) to the lower links and lift it a little bit until it takes
off from the ground;
- set the machine (implement) symmetrically in relation to the tractor longitudinal axis;
- turnbuckles shall be attached to the lower bores of brackets 1, as is shown in Fig-
ure 4.3.5a);
- to achieve swinging of the implement for not less than 125 mm in each side or in
accordance with machine operation manual, adjust length of turnbuckles 2 by turning cen-
tral element А of the buckles.
ATTENTION: ADHERE STRICTLY TO MACHINE SWING RATE OF NOT LESS
THAN 125 MM IN ORDER TO AVOID TURNBUCKLES TENSION FRACTURE WHEN
THE MACHINE IS LIFTED TO TRANSPORT POSITION!

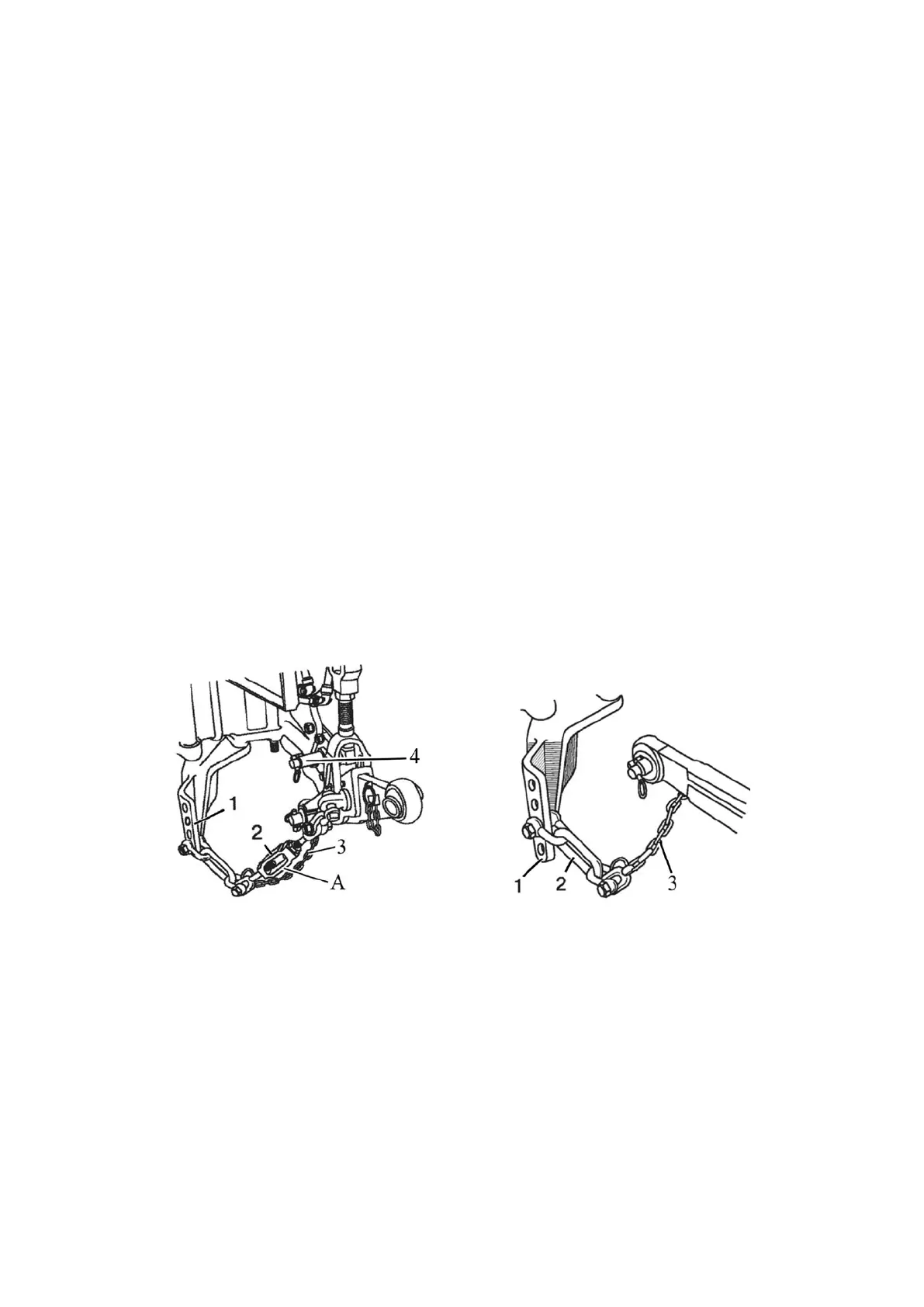

а) Partial blocking of outer turnbuckles b) Full blocking of outer turnbuckles
1 – bracket; 2 – turnbuckle; 3 – limiting chain; 4 – additional axis.
Figure 4.3.5 – Partial and full blocking of outer turnbuckles
Full blocking of buckles in operating position shall be made as follows:
- attach the machine (implement) to the lower links and lift it a little bit until it takes off
the ground;
- set the machine (implement) symmetrically against the tractor longitudinal axis;
- the turnbuckles shall be attached to the second lower bores of brackets 1 as
shown in Figure 4.3.5b);
- check side-sway range of the machine (implement), it shall not exceed 20 mm to
each side;
- to limit swinging of the implement in each side for not more than 20 mm, adjust the
buckles length 2 by turning central element A of the buckles.
