Belarus 82.3 - Upper Shield Unit of Button Switches, Rear Wiper Switch and Rear View Mirror Remote Control System

82.3-0000010 OM
23
If the AB button switch 2 is installed, press AB switch button 2 to turn the AB on and
off. If the AB rotary switch 3 is installed, turn the AB switch knob 2 to turn the AB on and
off according to the plate 4. Figure 2.2.3b shows the AB off position.

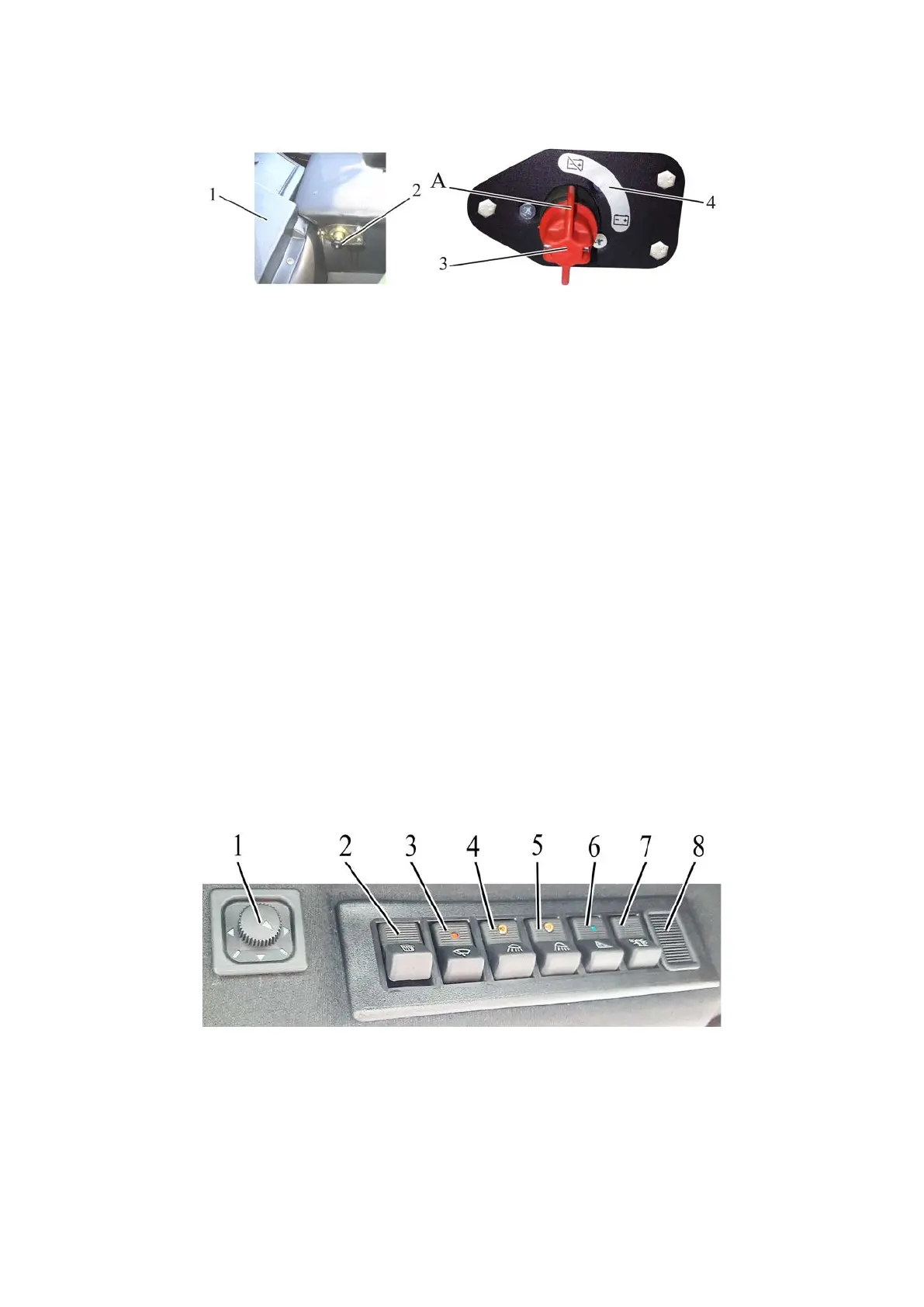

a) AB button disconnect switch b) AB rotary disconnect switch
1 – side panel; 2 – AB manual button disconnect switch; 3 – AB manual rotary disconnect switch;
4 -
informational plate; A – a projection of rotary disconnect switch knob.
Figure 2.2.3 – Installation of the AB manual disconnect switch
Pulling the red handgrip 20 (Figure 2.1.1) stops the fuel supply to the engine cylin-
ders and the engine stops operating. After releasing, handgrip 20 under the influence of
the spring returns to the initial position.
2.3 Upper shield unit of button switches, rear wiper switch and rear view mir-
ror remote control system
If there is an ice layer on mirrors (during low temperature season), it is required to
engage the electrical heating of mirrors by pressing the lower part of switch 2 button (Fig-
ure 2.3.1). After the ice has melted, press the upper part of switch 2 button to turn off the
mirror heater.
Pressing the switch button 3 (Figure 2.3.1) turns on the windscreen wiper.
The switch has three positions:
 “Off”;
 “On with low speed of the screen wiper”;
 “On with high speed of the screen wiper”.
Pressing switch button 4 (Figure 2.3.1) turns two rear working lights on as well as
the light indicator, built into the button.
Pressing switch button 5 (Figure 2.3.1) turns on two front working lights on the cab
roof as well as the light indicator, built into the button.
Pressing switch key 6 activates the signal lights for the "road train" sign and the light
indicator built into the key (on request, switch 6 may not be installed).
1 – mirror position regulator; 2 – the switch of the mirror electrical heating; 3 – wind-
screen wiper switch; 4 – rear working lights switch; 5 – switch of front working lights on cab
roof; 6 – switch of signal lights for the "road train" sign; 7 – flash beacon switch; 8 - blind
plug.
Figure 2.3.1 – Upper shield unit of button switches
