2.18 Cab locks and handles
2.18.1 Cab door locks
Left and right doors of tractor cab are secured with locks 4 (Figure 2.18.1). The lev-
er 5 serves to open the left and right cab doors from inside the cab. Moving the lever 5
backward unlocks the door. The locks of the right and left doors can be blocked from in-
side the cab. To block the lock from inside the cab, shift the detent 3 into the upper ex-
treme position. To unblock, shift detent 3 to the lower extreme position.
With the locks 4 unblocked, the left door is opened from outside by pushing the but-
ton 2 of the handle.
The lock of the cab left door can be opened and closed from outside. To close it
from outside do the following:
- insert a key 1 into the hole of the cylinder mechanism located in the button 2;
- without pushing the button 2, turn the key into position “locked”.
To open the left door lock outside the cab, it is necessary to insert the key 1 into the
hole of the cylinder mechanism, which is located in the button 2 and without pushing the
button 2 turn the key into position “unlocked”, then press the button 2.

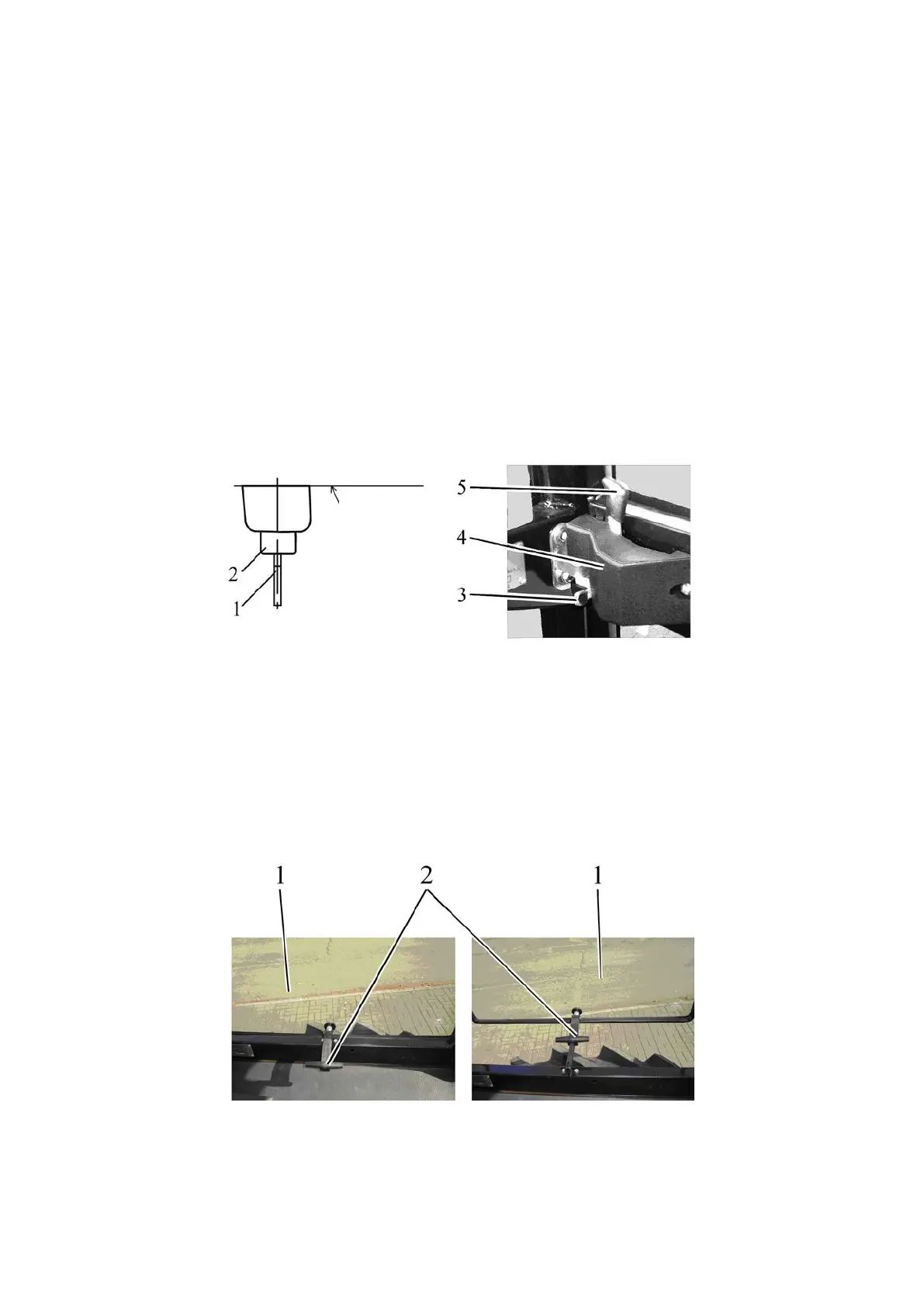

1 – key; 2 – button; 3 – detent, 4 – lock; 5 – lever.
Figure 2.18.1 – Cab door lock
2.18.2 Left side window opening
To open the left side window 1 (Figure 2.18.2) it is required to take handle 2 up and
push it until the side window 1 is secured in an opened position.
To close the left-side window 1, take the handle 2 up and pull it until the side window 1
is secured in a closed position.
а) window closed b) window opened
1 – left-side window; 2 – handle.
Figure 2.18.2 – Side window opening
