82.3-0000010 OM
56

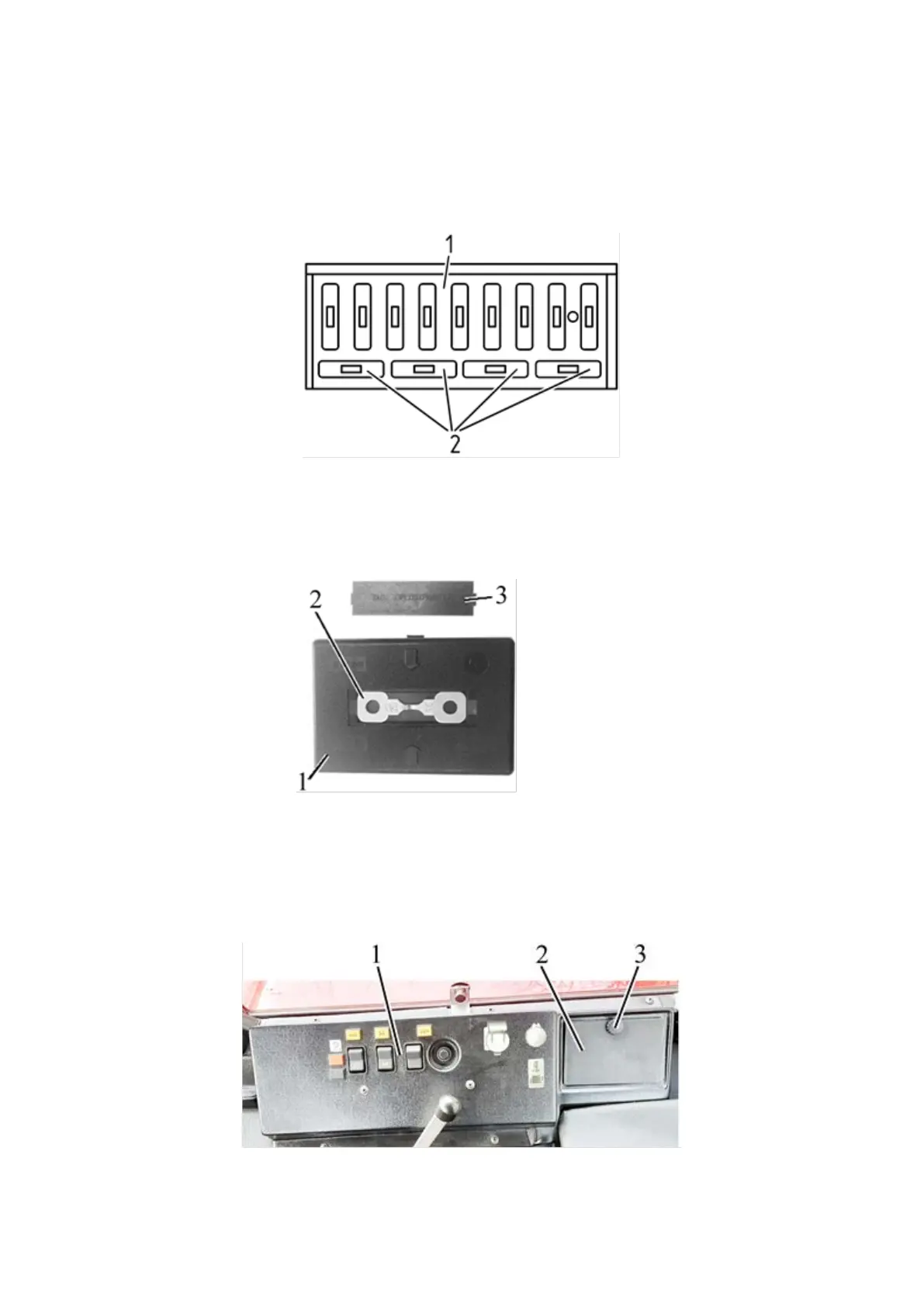

2.17.2.2 Spare fuses
The nine-fuse blocks of fuses shown in Figure 2.17.2 are additionally equipped with
four spare fuses 2 (Figure 2.17.5). The rating of the spare fuses is as follows: 7.5 A; 7.5 A;
15 A; 25 A.
1 – nine-fuse blocks of fuses; 2 – spare fuses.
Figure 2.17.5 – Location of spare fuses in the nine-fuse block
In the fuse block cover 3 (Figure 2.17.3) there are two spare fuses 2 (Figure 2.17.6)
rated 60 A and 80 A. To access the spare fuses 2, remove blind plug 3 from cover 1 of the
fuse block.
1 – cover; 2 – spare fuse; 3 – blind plug.
Figure 2.17.6 – arrangement of the spare fuses in the power fuse block
2.17.3 Fuse for electronic control systems (ECS)
To access the cut-out fuses of the electronic control systems, undo the screw 3 ( Figur
2.17.7) on the cover 2 of the side panel 1 and open the cover 2.
1 – side panel; 2 – cover; 3 – screw.
Figure 2.17.7 – Access to the fuses for electronic control systems (ECS)
