Belarus 82.3 - Tow Hitch with Non-Standard Piton-Type Element

82.3-0000010 OM
114
4.4.7 Tow hitch with non-standard piton-type element

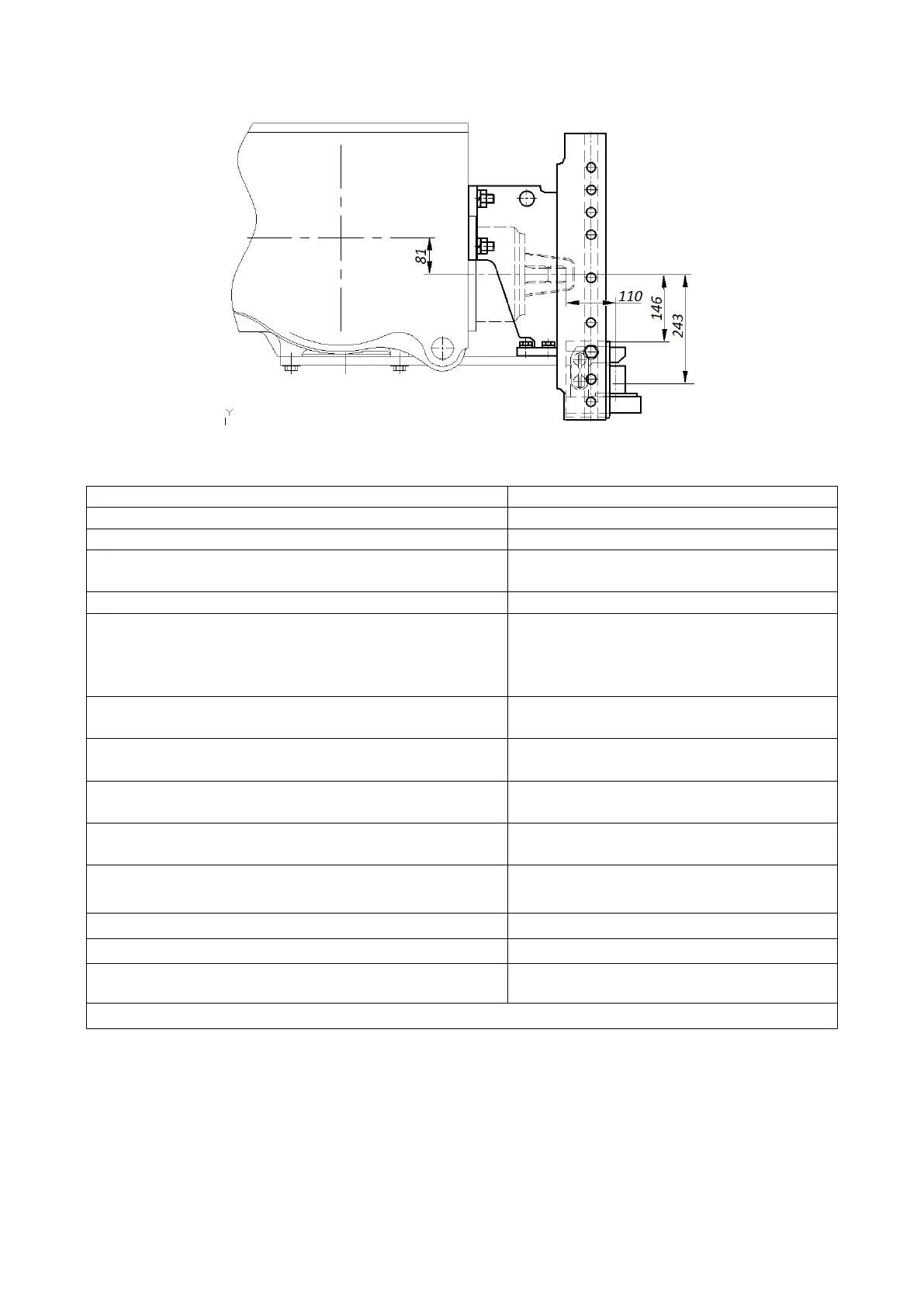

Figure 4.4.7 – Installation scheme of non-standard PITON-type element (recommended
position)
Table 4.4.6 – Basic parameters and coupling dimensions of PITON-type element
Parameter
Specification
1 Tow hitch element
PITON-type element
2 Designation
1322-2707160
3 Mounting location
Guide grooves of the bracket attached to
rear surface of rear axle body
4 Design features
Cantilever fitted connection pin
5 Purpose
For connection of trailed and semi-trailed
agricultural ma
chines, including those
driven from PTO, as well as tractor semi-
trailers
6 Dimensions, mm:
- pin diameter
42
7 Type of trailing appliance for connection to PI-
TON-type element
Rotating hitch eye of circular section with
hole diameter making 50 mm
8 Vertical load in hitch point, equivalent to weight,
kg, not more than:
1850
9 Relative calculated value of axial forces (D), kN,
not more than:
43.6
10 Safety device type
10.1 Connection point of safety device to the tractor
Safety chain (rope)
1)
Bores in guide grooves of mounting bracket
11 EU certificate type
-
12 EU type approval, No
-
13 Certificate of Customs Union Technical Regula-
tion, No
-
1)
Machine accessory.
ATTENTION: TAKING INTO ACCOUNT THE RELATIVE CALCULATED VALUE OF AX-
IAL FORCES (D) PERMISSIBLE FOR THIS ELEMENT, THE MASS OF THE SEMI-TRAILER
OR THE MACHINE TO BE ATTACHED TO THE PITON-TYPE ELEMENT SHALL NOT EX-
CEED 12 TONS!
