82.3-0000010 OM
51
Distributor RP70-1221.2C Distributor RP70-890.1
(with draft regulator) (without draft regulator)
– the color corresponds to the color of the clips, mounted at the ends of outlet pairs in
covers of clutches
– rear lift linkage (RLL) control
– lever fixation available
– float position (uppermost position)
– lowering (upper middle position)
– neutral position (lower middle position)
– raising (lowermost position)

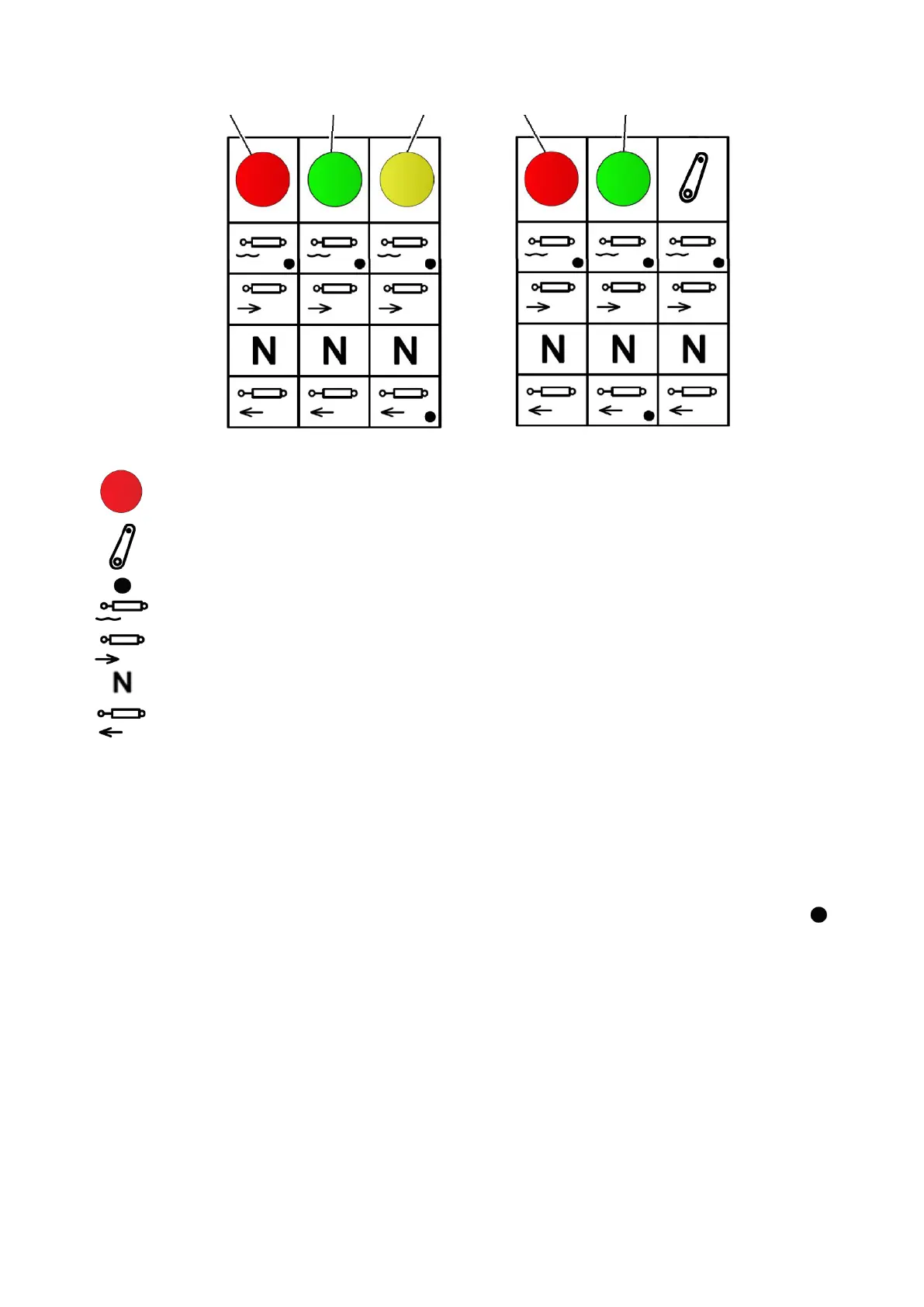

Figure 2.16.2 – Versions of instruction plate depending on the type of installed dis-
tributor.
Each of the three levers 2, 3, 4 (Figure 2.16.1) of the distributor has four positions:
“Floating”, “Lowering”, “Neutral” and “Raising.”
In non-fixed positions with the engine running, the lever should be held by hand, as
after releasing the lever it returns automatically from positions “Lowering” and “Raising” to
the “Neutral” position.
The availability of lever fixed position is marked on information plate with symbol .
Distributors do not have the function of automatic return from fixed positions.
ATTENTION: IN ORDER TO PREVENT OVERHEATING OF THE HYDRAULIC
SYSTEM AND EARLY BREAKDOWN OF THE PUMP AND OTHER UNITS OF HY-
DRAULIC LIFT LINKAGE SYSTEM, THE LEVER SHALL BE SET INTO “NEUTRAL” PO-
SITION AFTER PERFORMING “RAISING” OPERATION ON A LEVER HAVING A FIXED
“RAISING” POSITION.
2.16.2 Location and connection of hydraulic distributor outlets to external load
Location and number of outlets depends on specific configuration of the tractor.
HLL of tractor "BELARUS-82.3" with draft regulator is completed with three pairs of rear
outlets and free drain clutch with blue clip, as shown in Figure 2.16.3. On request, two rear out-
lets (with red and green clips) may not be installed.
red green yellow red green
