82.3-0000010 OM
52
(free drain)

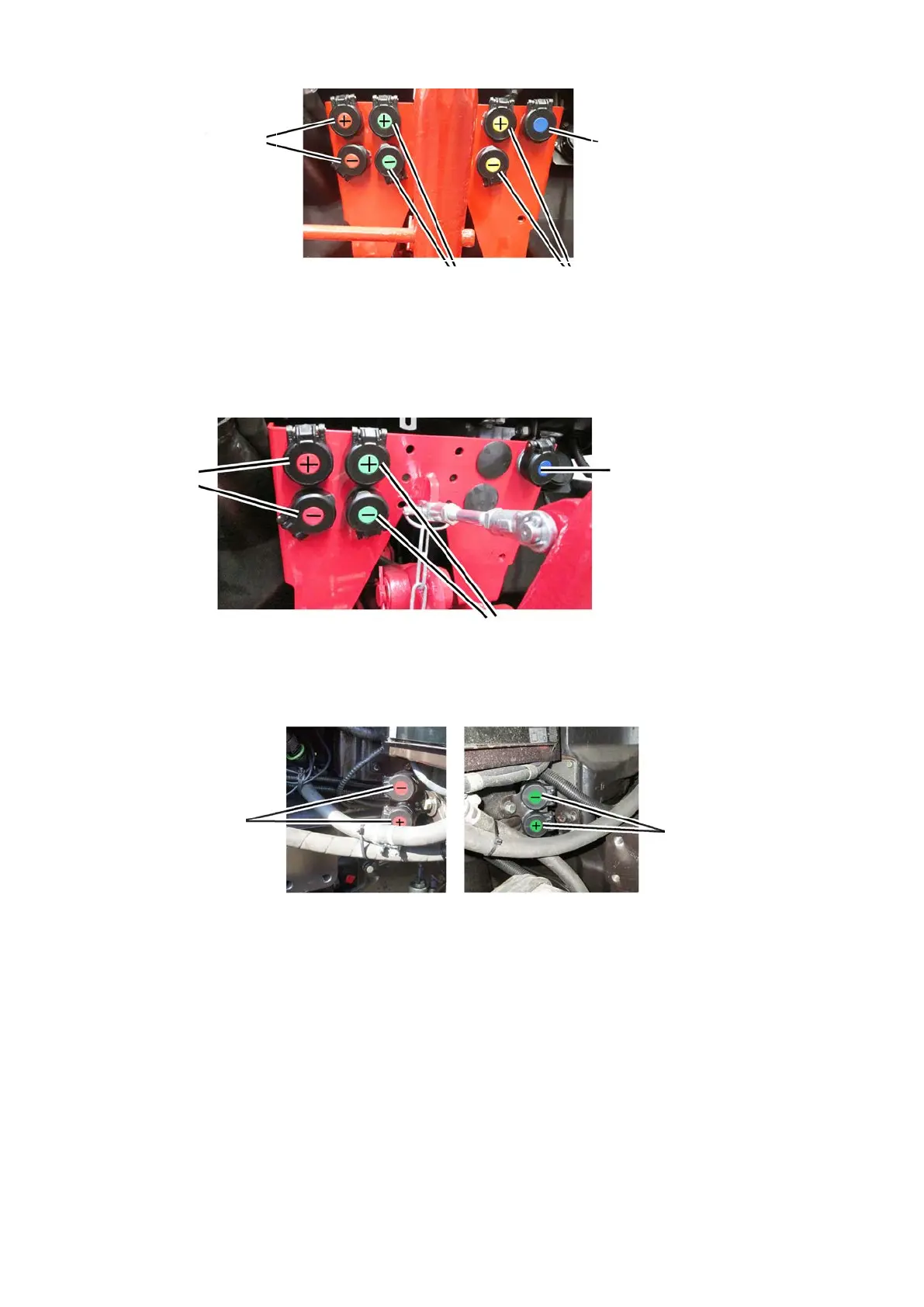

Figure 2.16.3 - Location and connection of the rear outlets of the RLL with draft regu-
lator to external load
Note - On request BELARUS-82.3 tractor with draft regulator can be equipped with
the following configuration: two lateral independent and one rear pair of outlets.
Tractor BELARUS-82.3 RLL without draft regulator is completed with two pairs of rear
outlets and free-drain clutch with blue clip, as it is shown on figure 2.16.4.
Figure 2.16.3 – Location and connection of distributor outlets to external load
On request, two pairs of side outlets can be installed on tractors "BELARUS-82.3",
both with draft regulator and without draft regulator, as shown in Figure 2.16.5. In this con-
figuration, the side outlets are duplicated with rear outlets of the same color.
Figure 2.16.5 – Location and connection of distributor outlets to external load
Each pair of clutches is provided with covers with marks “+” or “-“. The mark “+”
stands for “Raising”, while the mark “-“ means “Lowering”. When moving the correspond-
ing handle (lever) to the raising position, the hydraulic fluid moves from the pump to the
outlet that is marked on the cover with “+” on the cover, and the drain takes place through
“-“. When lowering, the hydraulic fluid is delivered to the outlet marked with “-“, while
drained through outlet “+”.
The tractor is equipped with a rear free drain which has a clutch with a clip of blue
color.
ATTENTION: IN ORDER TO PREVENT HYDRAULIC SYSTEM OVERHEATING
WHEN WORKING WITH HYDRAULIC MOTORS IT IS RECOMMENDED TO DRAIN OIL
FROM THE ENGINE THROUGH THE FREE DRAIN!
(free drain)
(left side)
(right side)
