82.3-0000010 OM
53
2.17 Electrical cutout fuses
2.17.1 General information
The electrical cutout fuses are intended for protection of electrical lines against
overloads and short circuits.
WARNING: TO AVOID BURNING OF TRACTOR WIRING, NEVER USE FUSES
WITH CURRENT RATING HIGHER THAN THE RATING SPECIFIED IN THIS SECTION.
IF A FUSE BURNS OUT OFTEN, IDENTIFY THE CAUSE AND ELIMINATE THE FAULT!
2.17.2 Fuses for electrical equipment system
2.17.2.1 Fuses intended for protection of electrical equipment electrical lines
Three blocks of cutout fuses are built into the dashboard. To access the cutout fus-
es, do two screws 2 out (Figure 2.17.1) and open the cover of the dashboard 1.

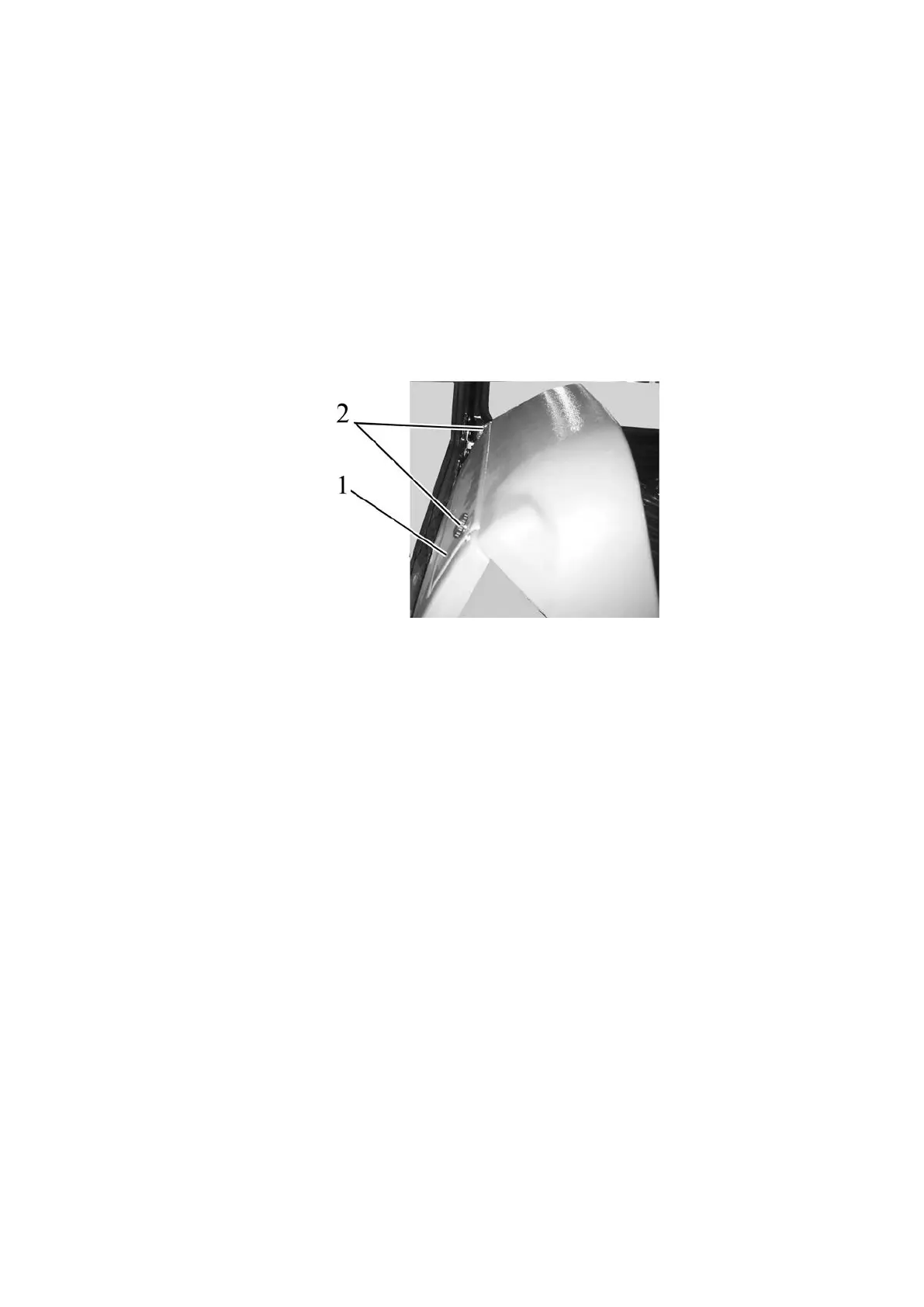

1 – cover of instrument board; 2 – screw.
Figure2.17.1 – Arrangement of fuse blocks in the instrument board
