2.18.3 Rear window opening
To open the rear window, turn handle 1 (Figure 2.18.3) to the left (in tractor travel
direction) and by holding the frame 2 push the rear window 3 away until the window is
fixed in the open position.
To close the rear window, pull frame 2 until the window 3 is fixed in closed position.

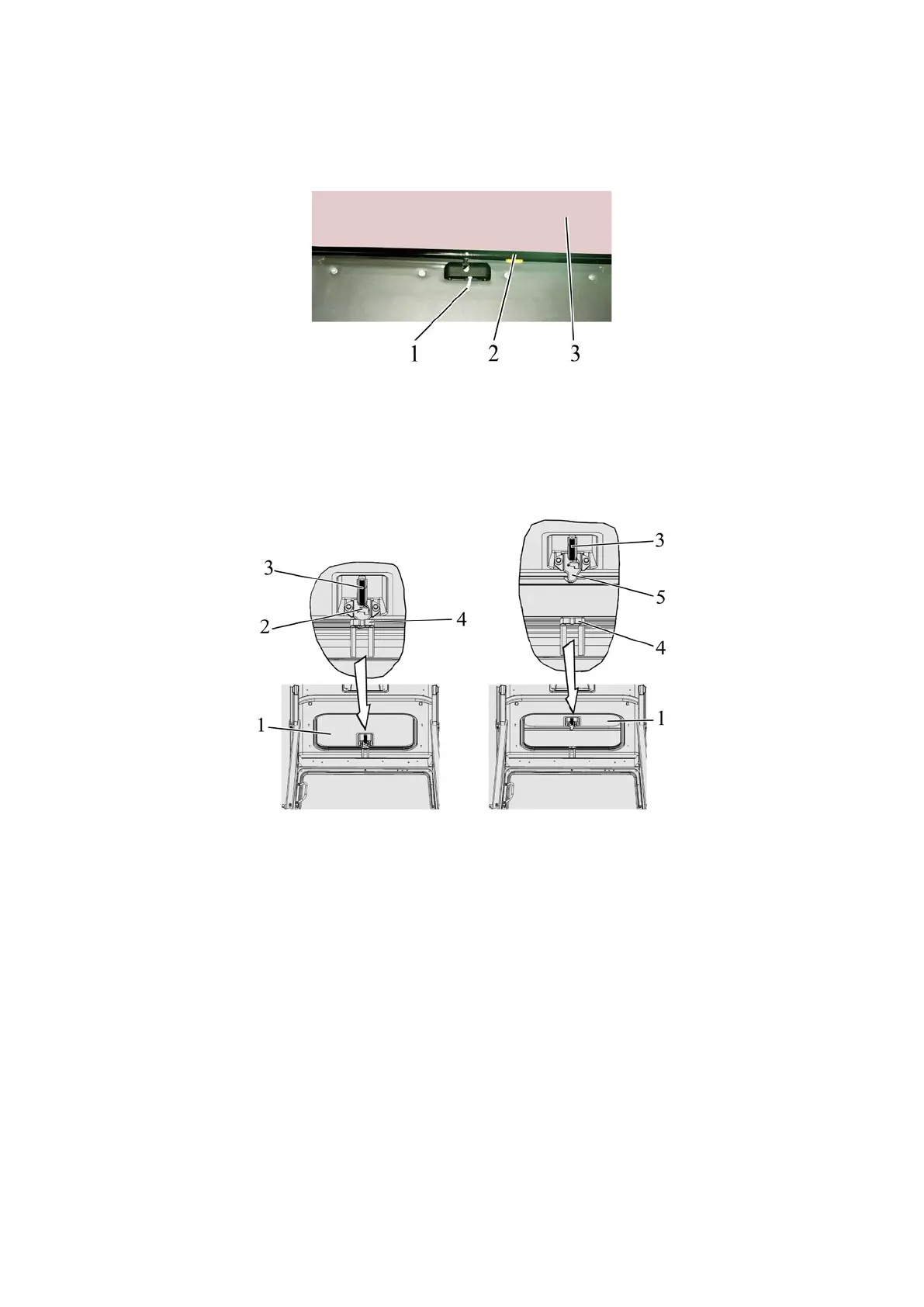

1 – handle; 2 – frame; 3 – rear window.
Figure 2.18.3 – Rear window opening
2.18.4 Cab roof opening
To open the roof 1 (figure 2.18.4) pull the hand grip 3 down, push detent 2 up, and
while holding it push hand grip 3 with the roof 1 up, until the roof is fixed in open position.
To close the roof 1 pull the hand grip 3 down until the roof 1 is fixed in closed posi-
tion (the latch 5 shall be fixed in the bracket 4).
а) roof closed b) roof opened
1 – roof; 2 – detent; 3 – hand grip; 4 – bracket; 5 – latch.
Figure 2.18.4 – Cab roof opening
2.18.5 Cab emergency exits
The cab has the following emergency exits:
- doors – left and right;
- rear window.
2.19 Seat and its adjustments
2.19.1 General information about the seat
The seat consists of a suspension and a seat. A scissors-type guiding mechanism en-
sures a strictly vertical movement of the seat.
The dynamic seat stroke of seats BELARUS и Grammer MSG85/721 is 100 mm. The
dynamic stroke of seat Grammer MSG95G/721 is 180 mm.
ATTENTION: BEFORE STARTING TO OPERATE THE TRACTOR, ADJUST THE
SEAT TO REACH THE MOST COMFORTABLE POSITION. CARRY OUT ALL ADJUST-
MENTS WHILE STAYING IN THE SEAT! THE SEAT IS CONSIDERED CORRECTLY AD-
JUSTED ACCORDING TO THE MASS IF IT MOVES HALF OF THE STROKE UNDER THE
OPERATOR'S WEIGHT!
