4.4.8 Tow hitch with piton-type element under ISO 6489-4

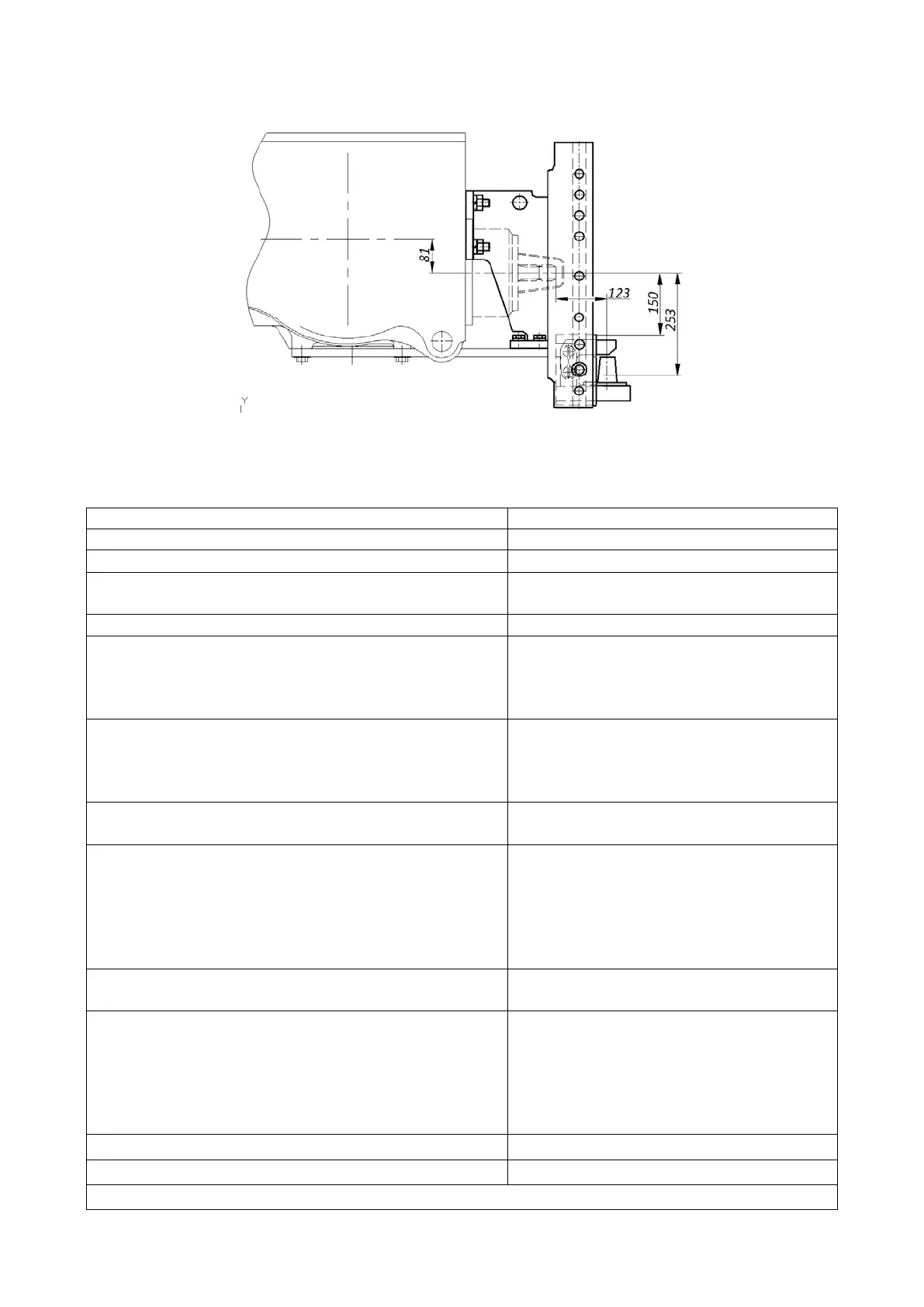

Figure 4.4.8 – Installation scheme of PITON-type element under ISO 6489-4 (recom-
mended position)
Table 4.4.7 – Basic parameters and coupling dimensions of PITON-type element under
ISO 6489-4
Parameter
Specification
1 Tow hitch element
PITON-type element
2 Designation
Scharmuller Art. Nr. 05.6331.10
3 Mounting location
Guide grooves of the bracket attached to
rear surface of rear axle body
4 Design features
Cantilever fitted connection pin
5 Purpose
For connection of trailed and semi-trailed
agricultural machines, including those
driven from PTO, as well as tractor semi-
trailers
6 Basic dimensions, mm:
a) pin diameter
b) distance from PTO end to the axis of con-
necting pin
44.5
123
7 Type of trailing appliance for connection to PI-
TON-type element
Hitch eyes according to GOST 34598-
2019. Hitch eye under ISO 5692-1:2004
8 Vertical load in hitch point, equivalent to weight,
kg, not more than:
- specified on the nameplate of PITON-type ele-
ment;
- permissible for the given tractor with PITON-
type element;
3000
1840
9 Safety device type
9.1 Connection point of safety device to the tractor
Safety chain (rope)
1)
Bores in guide grooves of mounting bracket
10 Relative calculated value of axial forces (D), kN,
not more than:
- specified on the nameplate of PITON-type ele-
ment;
- permissible with due account for at
tachment
structure of PITON-type element
89.3
43.6
11 EU certificate type
563301
12 EU type approval, No
e1*2015/208*2018/829ND*00175*01
1)
Machine accessory.
