Belarus 82.3 - Page 55

82.3-0000010 OM
55
End of table 2.17.1
Number as per
Figure 2.17.2
Rated
current, A
Name of protected circuit
15
7.5
Low beam of right headlight
16
15
Emergency flashing
17
25
Reserve
18
7.5
Marker lights of the left side, terminal (7) of trailer socket
19
15
Marker lights of the right side, terminal (5) of trailer socket, instruments
illumination, number plate light
20
7.5
Control air conditioner compressor after engine start-up
21
15
Horn
22
15
Front and rear window wipers, window washer
Apart from the fuses, located in the instrument board and shown in Figure 2.17.2
the on-board circuit of “BELARUS-82.3” tractors has an additional block of fuses 3, locat-
ed on the left on bracket 4 (Figure 2.17.3) of the HLL and HSC oil tank housing 2, which is
intended to protect power circuits of electrical equipment.

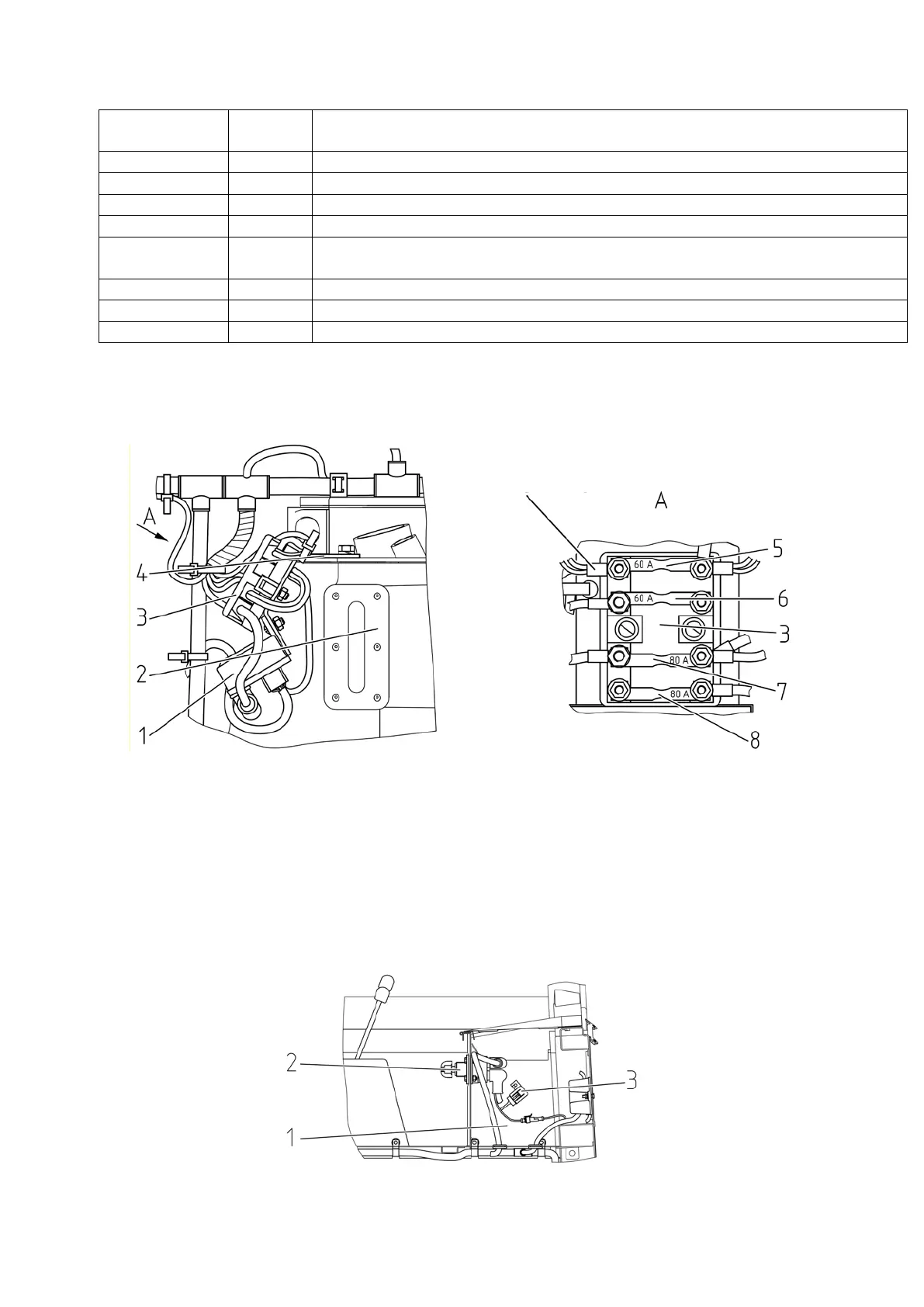

1 – heating plug controller, 2 – HLL and HSC oil tank; 3 – fuses block; 4 – bracket;
5 – 60А fuse (power to dashboard); 6 – reserve (non-used) 60А fuse; 7 – 80А fuse (power
to on-board circuit before start-up, battery charging, +12V to starter relay contacts); 8 –
80А fuse (power to heating plugs);
Figure 2.17.3 – Fuses, located on HLL and HSC oil tank housing
The pendant fuse 3 (Figure 2.17.4) for the power supply to the radio (stereo system)
receiver and the instrument panel with the position of the battery switch 2 "AB off" is locat-
ed in the battery compartment 1 on the left, near the battery switch 2, as shown in Figure
2.17.4.
1 – battery compartment; 2 – AB switch; 3 – 15A pendant fuse.
Figure 2.17.4 – Fuse assembly in the battery compartment
Output to fuses of
electric socket block
Cover is not shown
12V
12V
