Belarus 82.3 - Page 251

82.3-0000010 OM
251

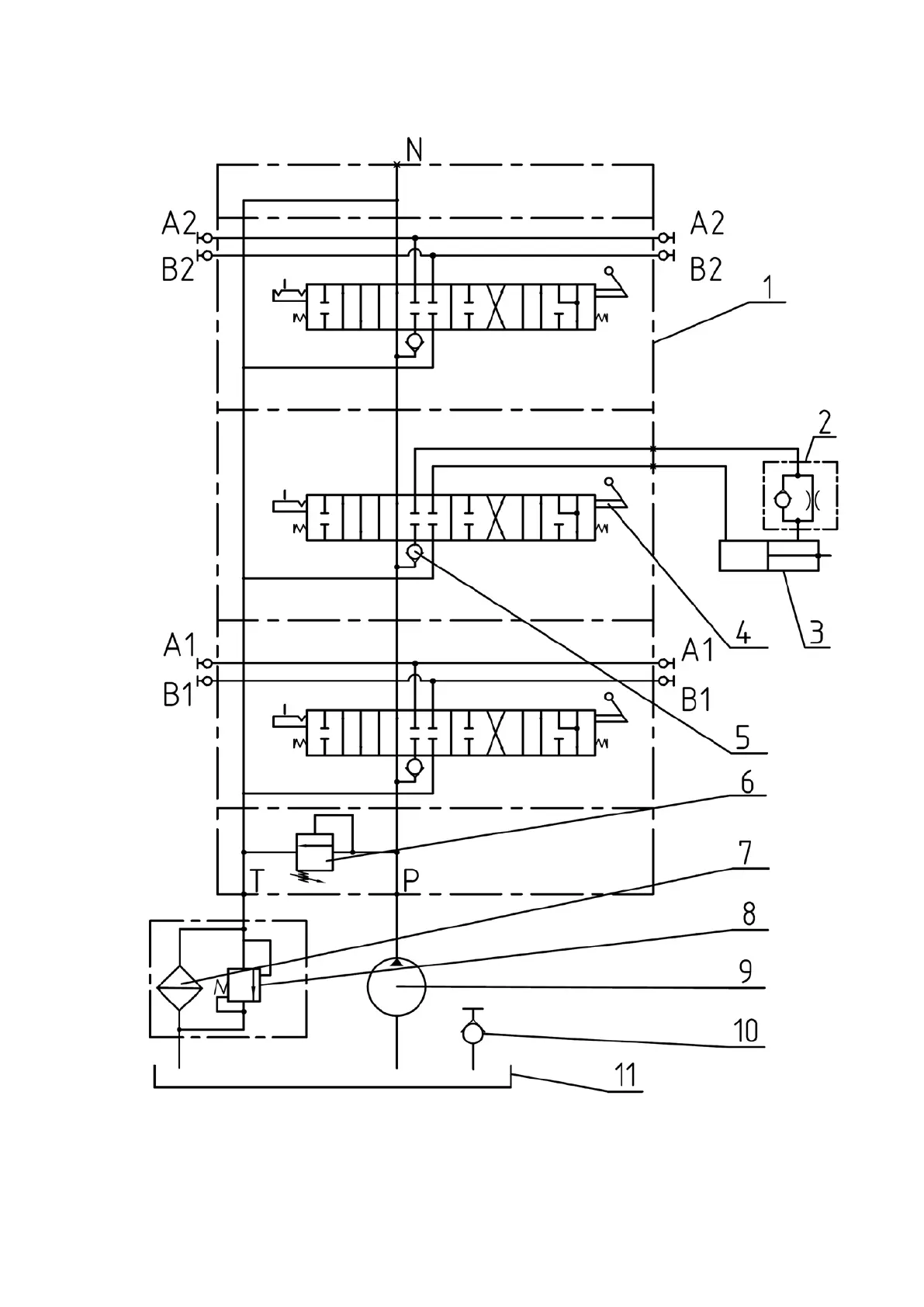

The hydraulic circuit diagram for the HLL without draft control is presented in figure
B2.
1 – distributor RP70-890.1; 2 – retarding valve; 3 – cylinder; 4 – spool; 5 – back-
flow valve; 6 – safety valve; 7 – hydraulics filter; 8 – filter valve; 9 – pump; 10 – rear free
drain; 11 – tank.
Figure B2 – Hydraulic circuit diagram for the HLL without draft control
