Maintenance 6
4 • Use a cross-head screwdriver (size: PH2)
and rotate the 4 screws of the top lid coun
-
terclockwise.
➣ You have to rotate over the snap-in resis-
tance. Then, the screw is pushed
upwards, and you can loosen it.
• Carefully lift off the sample compartment
cover.
5 Use a flat-tip screwdriver to loosen the two
knurled thumb screws, located on the bottom
of the trough.
6 Completely remove the trough out of the sam-
ple compartment.
7 Repeat step 1 to remove the cover of the detector and interferometer block.
8 • Put your hands below the flange of the input
port and the diagonally located hanger.
• Carefully lift off the cover from the detector
and interferometer block.
Cover not lift off properly.
Risk of detector damage.
➣ Lift off the cover straight and far
upwards.

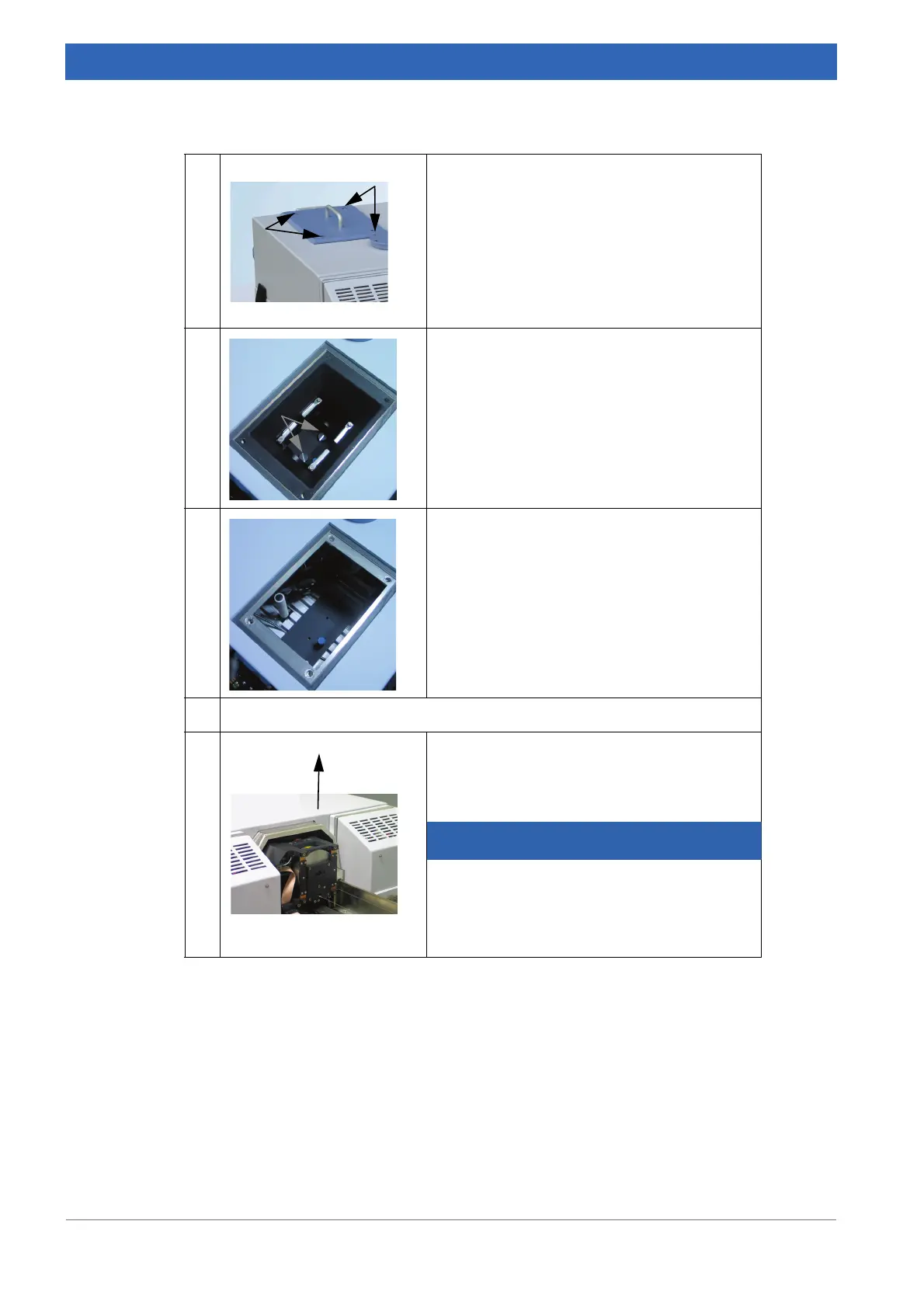

Table 6.26: Re-installation after transport of spectrometer - Removing covers
