Bruker Optik GmbH IFS 125M User Manual
Maintenance 6

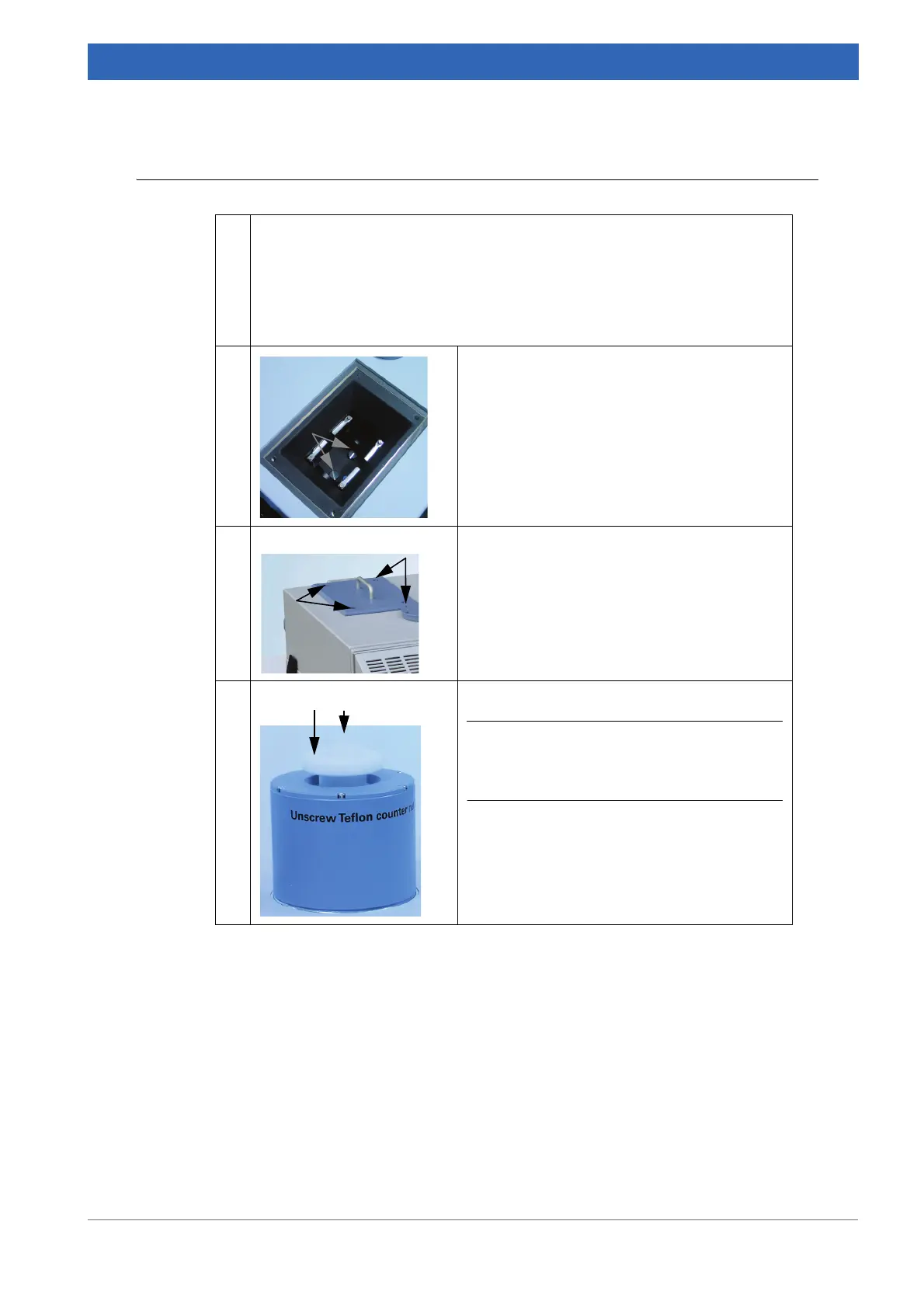

6.2.6 Remounting covers
1 • Put your hands below the flange of the input port and the diagonally
located hanger.
• Put on the cover of the detector and interferometer block.
➣ Make sure that the two eyelets at the inner edge of the cover are
catched by the two guiding posts which are located on the console.
• Close the clips on each side
a
.
2 • Insert the trough into of the sample compart-
ment.
• Use a flat-tip screwdriver to fasten the two
knurled thumb screws, located on the bot
-
tom of the trough.
3 • Use a cross-head screwdriver (size: PH2)
and rotate the 4 screws of the top lid clock
-
wise.
➣ Press down the screw and rotate it once.
4 • Insert the Teflon-made counter nuts (A).
i The Teflon-made counter nuts are only
available if you use a liquid nitrogen-
cooled detector.
• Put on the protective caps (B).
Table 6.5: Adjusting laser - Remounting covers
