Bruker Optik GmbH IFS 125M User Manual
Maintenance 6
6.4.2 Replacing procedure
6.4.3 Example of window assembly

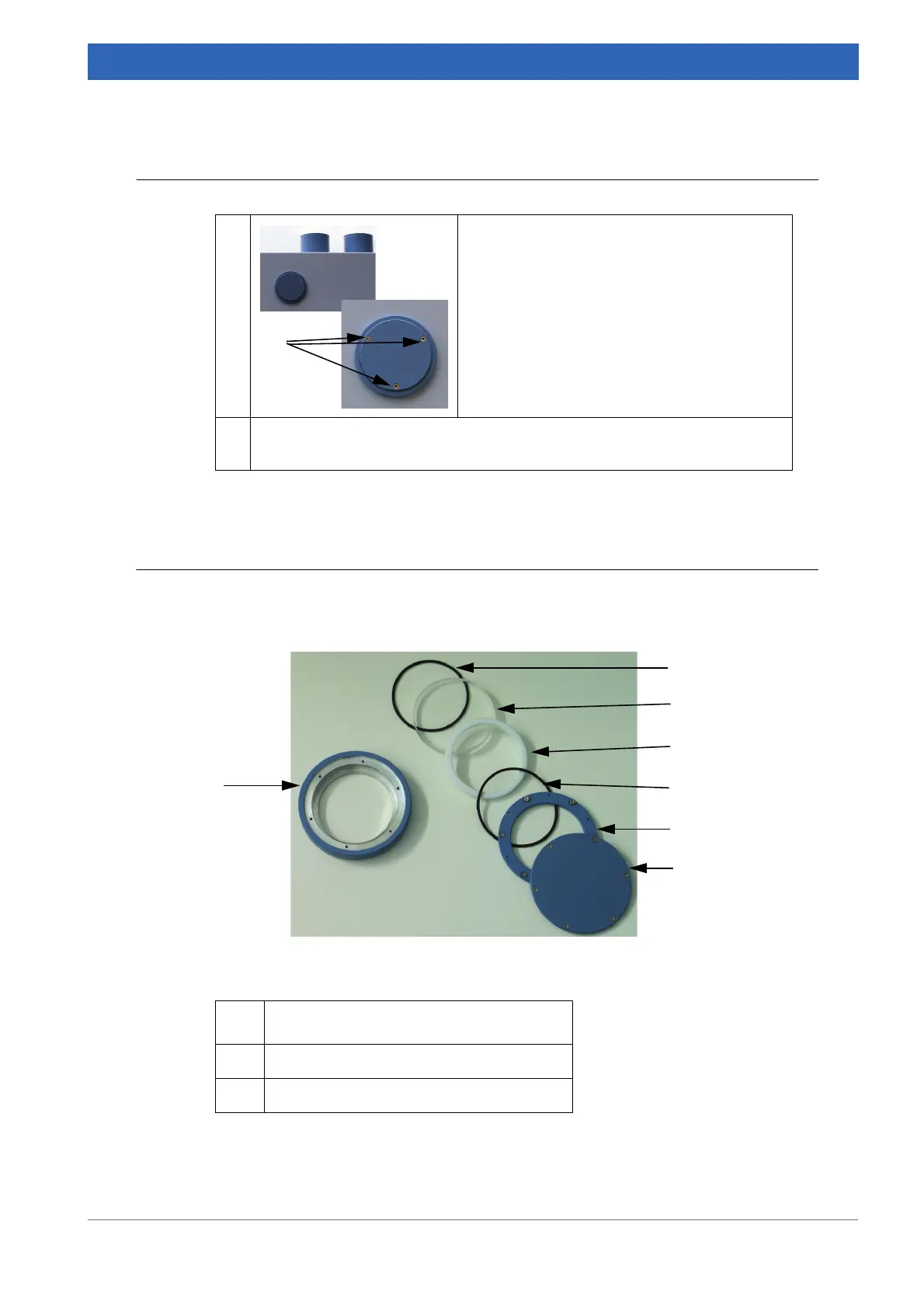

Figure 6.3 exemplifies the assembly of a quartz window which consists of the following
components:
1 Use a hexagon socket setscrew (2mm) to
loosen the screws from the window cap.
Rotate the screws counterclockwise.
Loosen the screws from the fixation ring.
Replace window as described in
chapter
6.4.3.
2 Check whether a signal is detected and the optics works properly. More
details are described in chapter
5.6.
Table 6.11: Replacing window
Definition
A Window flange
B O-ring for the window flange (A)
Table 6.12: Parts of window assembly
Figure 6.3: Window assembly
A
B
C
D
E
F
G
