IFS 125M User Manual Bruker Optik GmbH
Operation 5
5.10 Changing detector
The basic spectrometer configuration is equipped with a liquid-nitrogen-cooled MCT
detector, mounted on a dovetail guide.
5.10.1 Changing procedure
When changing the detector you have to mind the order described in the following.

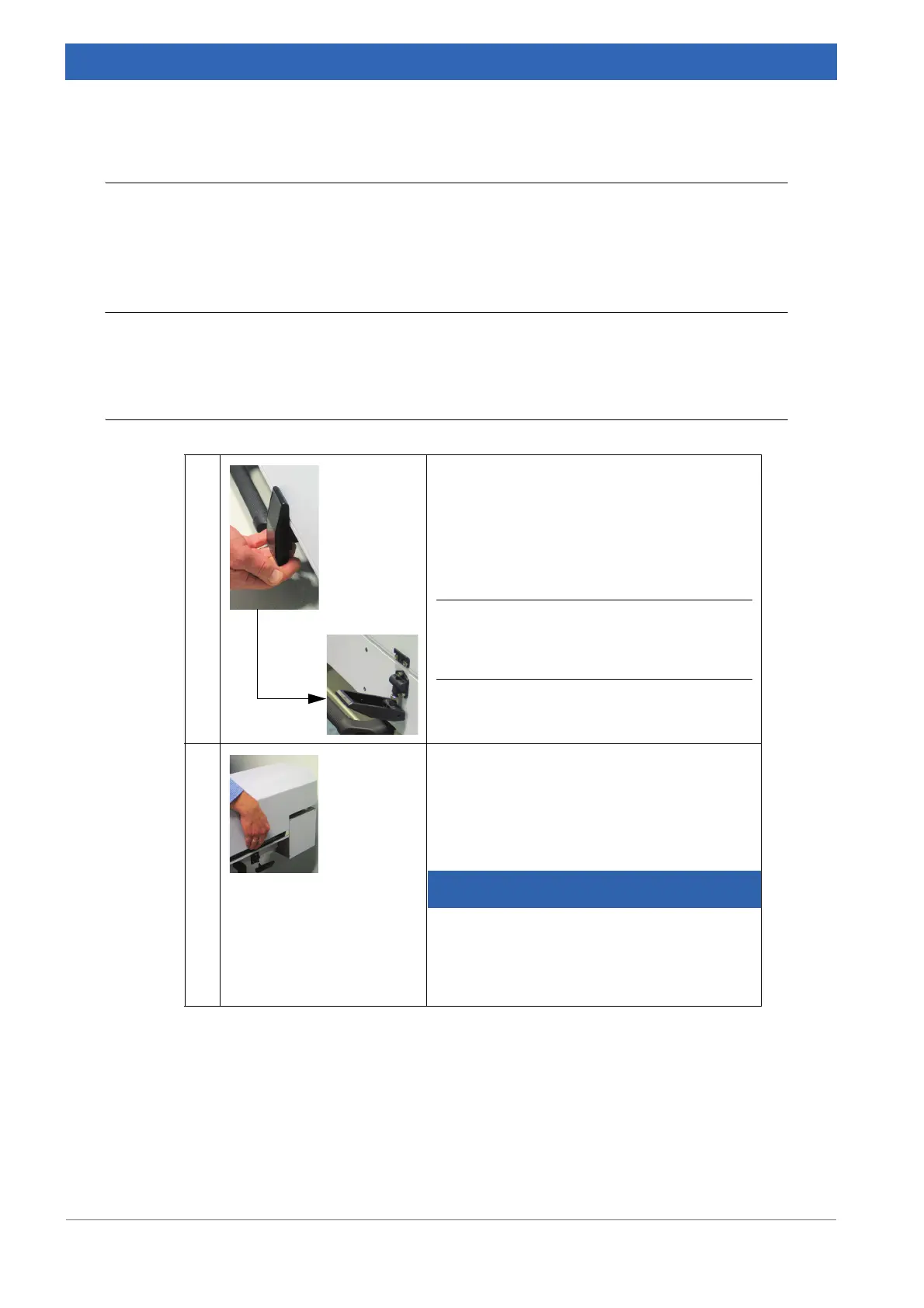

Removing covers
1 Removing scanning arm cover:
• Open the clips on each side.
• Put your hand below the clip and push the
clip upwards.
• Pull the clip towards you until you feel resis-
tance.
i All the clips have to be in their outermost
position, otherwise you get problems when
lifting off the cover.
2
• Two persons are required to lift off the cover
of the long scanning arm, one at the front
and one at the back end.
• Put your hands below the hangers.
• Carefully lift off the cover from the scanning
arm.
Cover not lift off properly.
Risk of scanner damage.
➣ Lift off the cover straight and far
upwards.
Table 5.9: Changing detector - Removing covers
