4 Description
This chapter describes all relevant spectrometer compartments.
i
The local indications right and left assume that the operator stands in front of the spec-
trometer. The same applies to the indication front and rear side, respectively.
4.1 Spectrometer front side
Definition
A Sample compartment lid
B
Viewing port
a
a. Can be used to observe the image of the external source, e.g.
the sun, on the aperture.
C Left electronics box
D Beamsplitter lid
E Detector hoods
F Right electronics box
G Scanner compartment
Table 4.1: Spectrometer front side

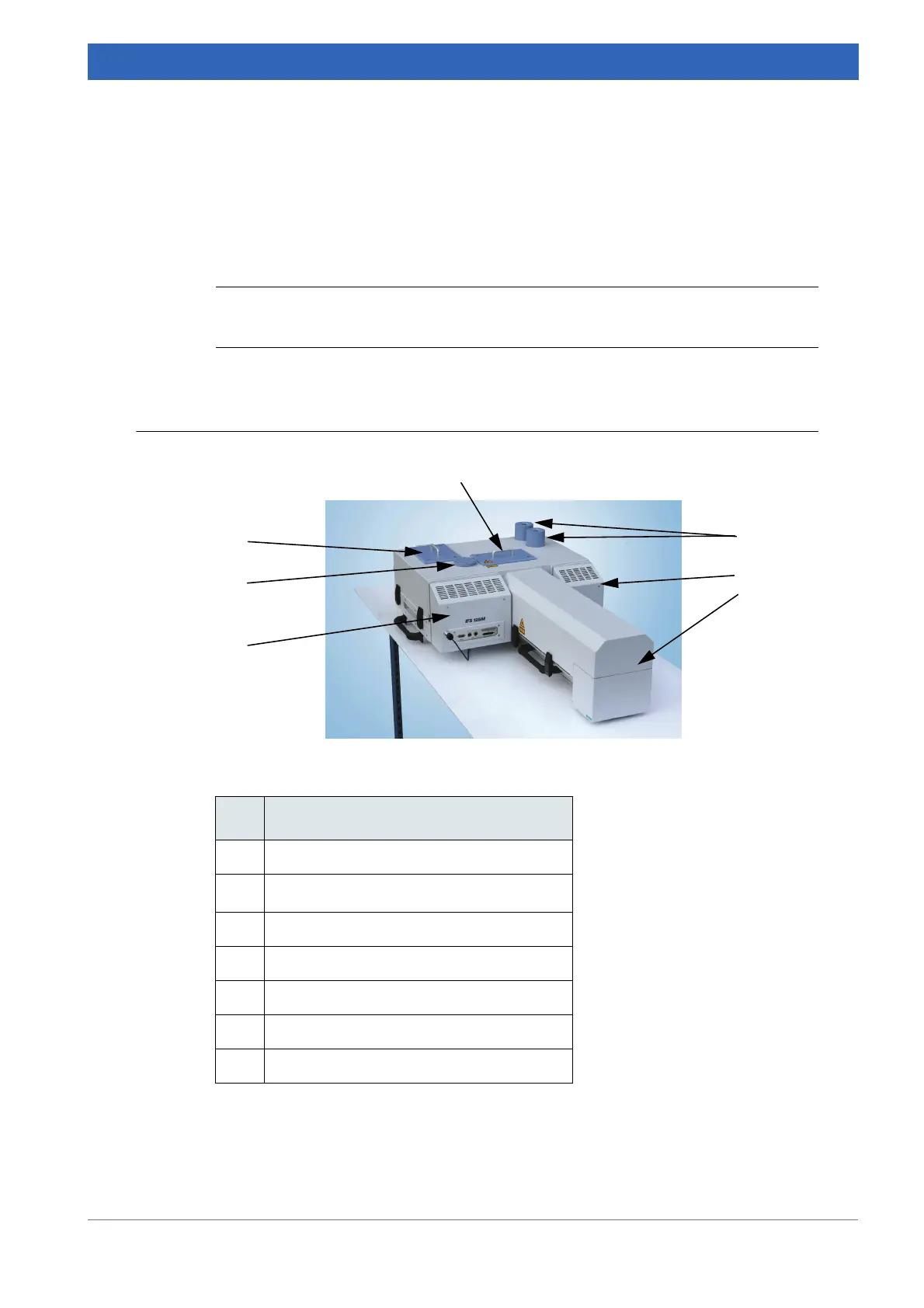

Figure 4.1: Spectrometer front side
A
B
C
E
F
G
D
