4.3 Sample compartment
The sample compartment can be accessed by lifting the blue top lid. For calibration pur-
pose the sample compartment can accommodate e.g. a 10 cm calibration gas cell. This
gas cell is fixed by 2 retaining clips.
How to insert the gas cell is described in chapter 5.5.
4.4 Beamsplitter lid
The spectrometer is equipped with a permanently-aligned Michelson interferometer,
cube-corner mirrors and a beamsplitter.
The interferometer has a 30° angle of incidence. This narrow angle of incidence makes
more effective use of the beamsplitter and reduces polarization effects.
How to change the beamsplitter is described in chapter 5.8.

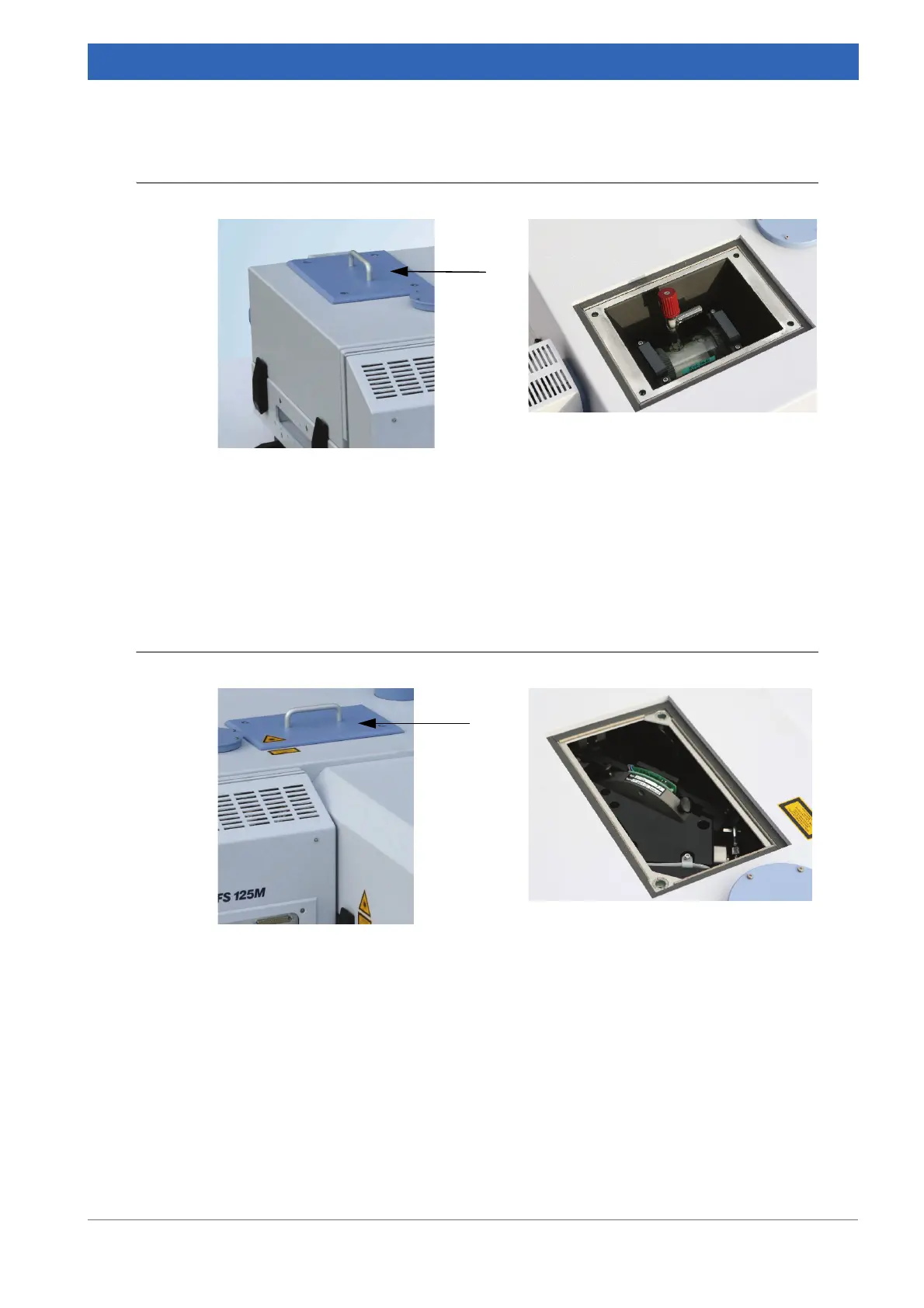

Figure 4.3a: Sample compartment with lid Figure 4.3b: Sample compartment with gas cell
Figure 4.4a: Closed beamsplitter lid Figure 4.4b: Open beamsplitter lid
