IFS 125M User Manual Bruker Optik GmbH
Installation 3
3.8.2 Inserting procedure

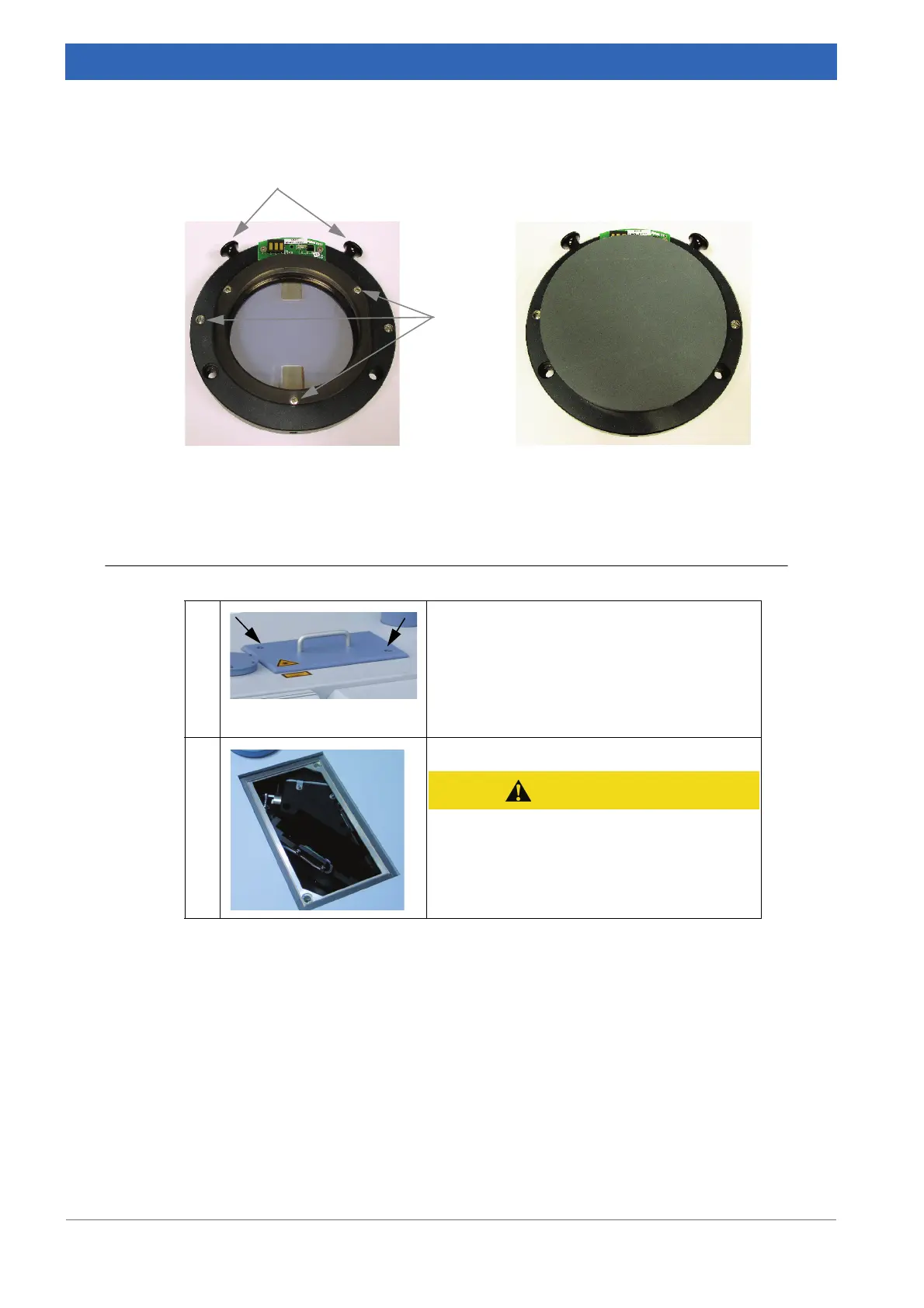

Figure 3.4a: Beamsplitter
A
B
Figure 3.4b: Beamsplitter with protective
cover
1 Use a cross-head screwdriver (size PH2) and
rotate the 2 screws of the top lid counterclock
-
wise.
➣ You have to rotate over the snap-in resis-
tance. Then, the screw is pushed
upwards, and you can loosen it.
2 Carefully lift off the lid.
Open lid:
Risk of exposure to laser light, which can
cause permanent eye damage.
➣ Do not stare into the laser beam.
Table 3.9: Inserting beamsplitter
